Home > Products > Steel Wire Rope > China Ungalvanized Steel Wire Rope 6x19W
China Ungalvanized Steel Wire Rope 6x19W
US$ 1,066 - 1,066
/ Metric Ton
5 Metric Tons(Min. Order)
- Tianjin port
- T/T Credit Card PayPal
You May Like
Product Details
| Steel Grade | 60#65#70# | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Wire Gauge | 8~30mm | Place of Origin | Hebei, China | |
| Type | Other, round | Application | Other, hauling in machinery, architectural, tugging, shipping fishery,etc | |
| Alloy Or Not | Non-alloy | Model Number | 6x19w+FC/6x19w+IWS/6x19w+IWR | |
| Brand Name | JINBAO |
Product Description
Specifications
Executive standard:GB8918-2006 or according to requirement of customersSpecifications:8mm~30mm
Product Description
China ungalvanized steel wire rope 6x19W
It is mainly used for hauling in machinery, architectural, tugging, shipping fishery, lifting of goods.
Executive standard: GB8918-2006 BS302 RR-W-410E ASTM A 1023/ADIN3051 JIS G 3525 EN 12385-4:2002
Specifications:Φ8mm~Φ30mm
| 6*19 | |||||||||||
| Nominal Diameter/ mm | Weight /(kg/100m) | Tensile Strength/Mpa | |||||||||
| 1570 | 1670 | 1770 | 1870 | ||||||||
| natural fiber core | synthetic fiber core | steel core | fiber cre | steel core | fiber core | steel core | fiber core | steel core | fiber core | steel core | |
| 3 | 3.16 | 3.1 | 3.6 | 4.34 | 4.69 | 4.61 | 4.99 | 4.89 | 5.29 | 5.17 | 5.59 |
| 4 | 5.62 | 5.5 | 6.4 | 7.71 | 8.34 | 8.2 | 8.87 | 8.69 | 9.4 | 9.19 | 9.93 |
| 5 | 8.78 | 8.6 | 10 | 12 | 13 | 12.8 | 13.9 | 13.6 | 14.7 | 14.4 | 15.5 |
| 6 | 12.6 | 12.4 | 14.4 | 17.4 | 18.8 | 18.5 | 20 | 19.6 | 21.2 | 20.7 | 22.4 |
| 7 | 17.2 | 16.9 | 19.6 | 23.6 | 25.5 | 25.1 | 27.2 | 26.6 | 28.8 | 28.1 | 30.4 |
| 8 | 22.5 | 22 | 25.6 | 30.8 | 33.4 | 32.8 | 35.5 | 34.8 | 37.6 | 36.7 | 39.7 |
| 9 | 28.4 | 27.9 | 32.4 | 39 | 42.2 | 41.6 | 44.9 | 44 | 47.6 | 46.5 | 50.3 |
| 10 | 35.1 | 34.4 | 40 | 48.2 | 52.1 | 51.3 | 55.4 | 54.4 | 58.8 | 57.4 | 62.1 |
| 11 | 42.5 | 41.6 | 48.4 | 58.3 | 63.1 | 62 | 67.1 | 65.8 | 71.1 | 69.5 | 75.1 |
| 12 | 50.5 | 50 | 57.6 | 69.4 | 75.1 | 73.8 | 79.8 | 78.2 | 84.6 | 82.7 | 89.4 |
| 13 | 59.3 | 58.1 | 67.6 | 81.5 | 88.1 | 86.6 | 93.7 | 91.8 | 99.3 | 97 | 105 |
| 14 | 68.8 | 67.4 | 78.4 | 94.5 | 102 | 100 | 109 | 107 | 115 | 113 | 122 |
| 16 | 89.9 | 88.1 | 102 | 123 | 133 | 131 | 142 | 139 | 150 | 147 | 159 |
| 18 | 114 | 111 | 130 | 156 | 169 | 166 | 180 | 176 | 190 | 186 | 201 |
| 20 | 140 | 138 | 160 | 193 | 208 | 205 | 222 | 217 | 235 | 230 | 248 |
| 22 | 170 | 166 | 194 | 233 | 252 | 248 | 268 | 263 | 284 | 278 | 300 |
| 24 | 202 | 198 | 230 | 278 | 300 | 295 | 319 | 313 | 338 | 331 | 358 |
| 26 | 237 | 233 | 270 | 326 | 352 | 346 | 375 | 367 | 397 | 388 | 420 |
| 28 | 275 | 270 | 314 | 378 | 409 | 402 | 435 | 426 | 461 | 450 | 487 |
| 30 | 316 | 310 | 360 | 434 | 469 | 461 | 499 | 489 | 529 | 517 | 559 |
| 32 | 359 | 352 | 410 | 494 | 534 | 525 | 568 | 557 | 602 | 588 | 636 |
| 34 | 406 | 398 | 462 | 557 | 603 | 593 | 641 | 628 | 679 | 664 | 718 |
| 36 | 455 | 446 | 518 | 625 | 676 | 664 | 719 | 704 | 762 | 744 | 805 |
| 38 | 507 | 497 | 578 | 696 | 753 | 740 | 801 | 785 | 849 | 829 | 896 |
| 40 | 562 | 550 | 640 | 771 | 834 | 820 | 887 | 869 | 940 | 919 | 993 |
| 42 | 619 | 607 | 706 | 850 | 919 | 904 | 978 | 959 | 1040 | 1010 | 1100 |
| 44 | 680 | 666 | 774 | 933 | 1010 | 993 | 1070 | 1050 | 1140 | 1110 | 1200 |
| 46 | 743 | 728 | 846 | 1020 | 1100 | 1080 | 1170 | 1150 | 1240 | 1210 | 1310 |
Company Information

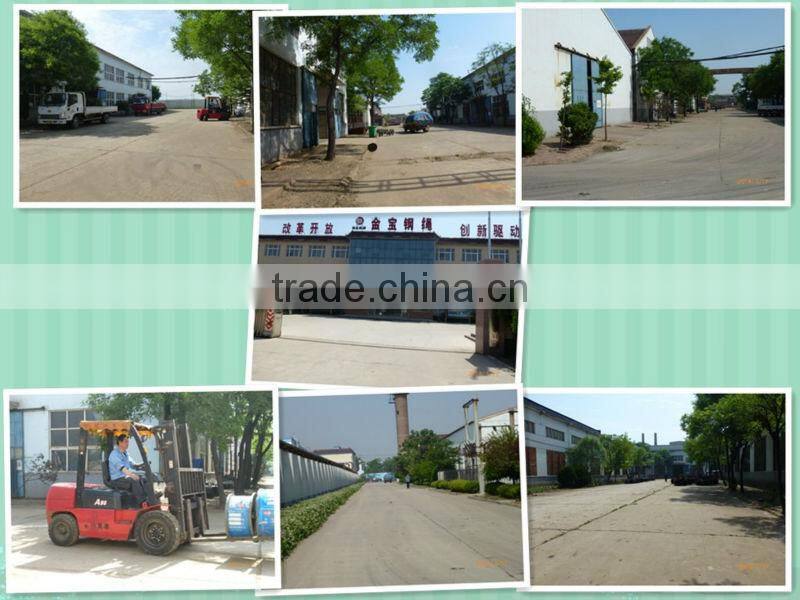

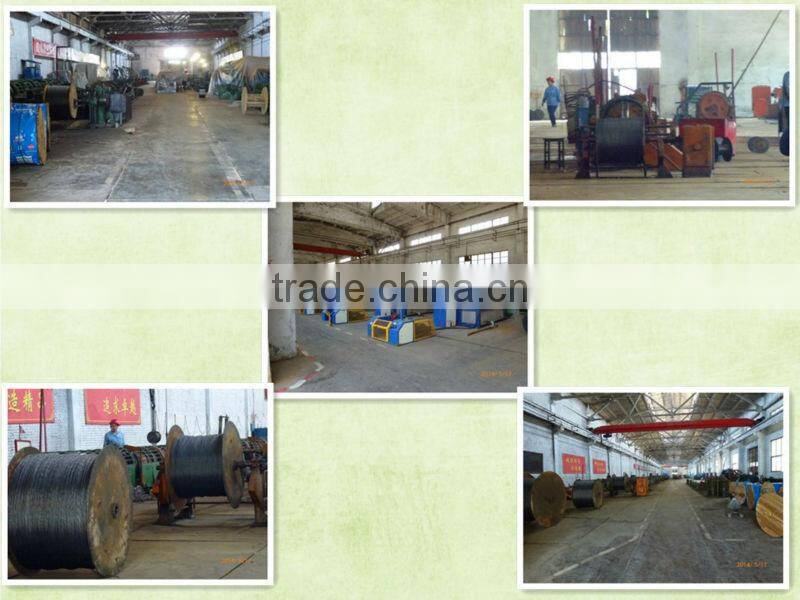

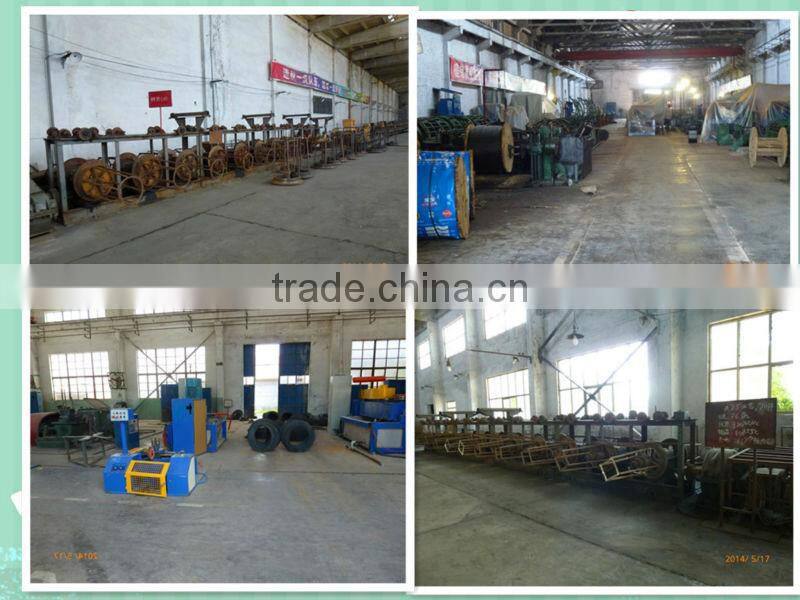

Our company is located in Gucheng County, Hengshui City, Hebei Province. We specialize in manufacturing steel wire, steel wire rope, steel strand, steel cord for radial tires, etc. Our production capacity amounts to 60,000 metric tons.
Our Services
We guarantee stable and timely supply, credible quality and sincere service, and our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
