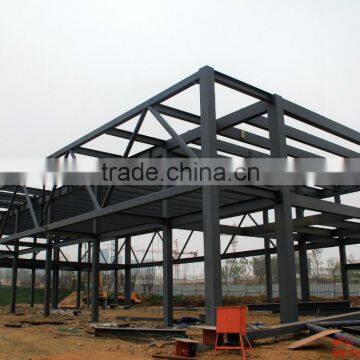

2017 new design double story steel structure for car parking

Product Application:

Steel structure is the perfect solution to the problem of assembling building structure. Factory production building on behalf of the level of construction industry advanced production . The building has the integrity, durability, safety, excellent performance in high performance. The steel structure prefabricated construction of high strength, light weight, easy processing. The processing precision can reach 0.1mm. Assembly of the construction site of the proportion reached 100%.

Steel Structure Warehouse Main Materials:


1. The main frame (columns and beams) is made of H section steel, steel grade is Q235 or Q345

2. The main frame (columns and beams) is made of welded H-style steel.

3. The columns are connected with the foundation by pre-embedding anchor bolt.

4. The beams and columns, beams and columns are connected with high intensity bolts.

5. The envelope construction net is made of cold form C-style purlins.

6. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.

Beam&Column

Brace system

Purlin system

Contour plate

Accessory

Blueprint Plans Include the Complete Drawings for Each Design:

1.Basement or foundation plan, first floor plan, second floor plan, front elevation, right side elevation, left side elevation, rear elevation, sections and detailed drawings, all necessary framing plans. All working plans are drawn to standard scales. Our designers can make blueprints for each design available.

Professional Design and Engineering Team:

2.Our experienced designers specializing in house planning and construction. Our architectural department composed of skilled draughtsmen, architects, and engineers are the elements upon which plans of the utmost accuracy and completeness in regard to design, strength, durability, and comfort and home conveniences are created.

We can provide quotation if you give us the following information:

A. If you have the drawings:
We can provide you the accurate quotation and full service of production, shippment and Installation guide, which is high quality and low cost.

B. No drawings:
Our excellent design team will freely design the light steel structure warehouse, workshop and other steel buildings for you. If you give the following information, we will give you an satisfactory price and drawing.
*Wind speed(KM/H)
*Snow load (KG/M2)
*Rain load (KG/M2)
*Earthquake load if have
*Demands for doors and windows
*Crane (if have) ,Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!

Main Features:

1.Green, environmental protection, energy saving and emission reduction

2.Use of the steel structure design of advanced technology

3.Environmental protection and no pollution new materials and steel structure integration

4.Economic, applicable, safe environmental protection, green building products.
