Colored Embossed Polycarbonate Sheet / PC Panel

 Colored Embossed Polycarbonate Sheet / PC Panel

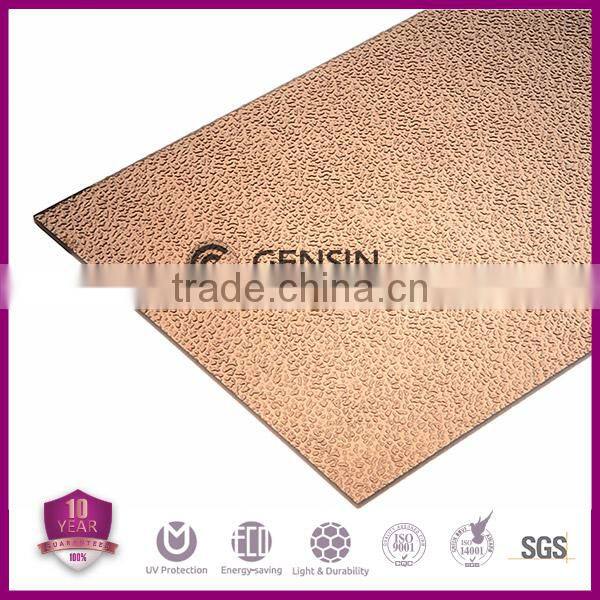

Gensin embossed polycarbonate sheet have several different patterns, like frosted, lichee,

diamond, water droplets, leather grain, prism.

General Specifications:
Thickness: 1.0 to 8mm
Width:1220-2100mm

Standard size:1220*2440mm

Package:pallet or in Roll
Colors: clear, blue, green, opal, brown,bronze,etc.

PC Embossed Sheet Features:

• light weight
• warp effect
• wide service temperature
• very high impact strengh
• widely used, can be molding, processing
• good weather resistance, UV protection
• simply installed

PC Embossed Sheet Features:

• bathroom

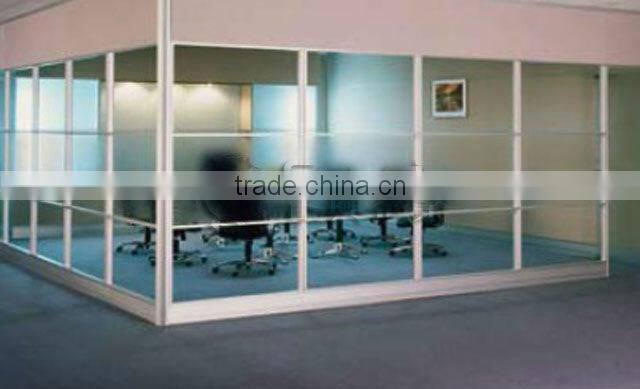

• indoor partition, folding screen
• sunshades, ceiling
• upholster, lighting

Technical Datas:

Embossed Polycarbonate Sheet/PC Panel

 Impact strength: 850J/m ,the impact strength of solid PC sheets is 250 times
that of glass, 20-30 times of PMMA sheet
Light transmission: 80%-90% for different thickness of clear color

UV resistance:with our 50μm thickness UV layer ,the sheet can filter 99% ultraviolet radiation in sunlight
Specific gravity: 1.2 g/cm
Coefficient of thermal expansion: 0.065 mm/m^oC

Temperature: -40^oC to 120^oC

Heat conductivity: 2.3-3.9 W/m^{2   oC}
Tensile strength: >60N/mm²
Flexural strength: 100N/mm²
Modulus of elasticity: 2,400mPa
Tensile street at break: >65mPa
Elongation at break: >100%
Specific heat: 1.16J/kg^k
Heat deflection temperature: 140^oC
Soundproof index:4mm thickness--27dB,5mm--28dB,6mm--29dB,8mm--31dB,10mm-32dB

                          12mm--34dB

Lichee pattern:

Diamond pattern:

Frosted pattern:

Leather grain pattern:

Droplets pattern:
