Gas Burner Control System With Valve for Fireplace Chimneys Space Patio Heater

FOB Price

Negotiable / Piece

300 Pieces(Min. Order)

Port keelung
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Gas Heater Type	Convector Heater	Installation	Ceiling, Desktop, Freestanding, Portable, Underfloor, Wall Mounted, Other, Ceiling, Desktop, Freestanding, Portable, Underfloor, Wall Mounted, Patio Heater
Gas Type	Natural Gas, Propane	Use	Bathroom, Bedroom, Garden, Living Room
Function	Adjustable Thermostat, Deodorization, Lighting, Overheat Protection, Remote Controlled, Tip-Over Protection, Ventilation	Certification	CE, CSA, UL
Model Number	BK-368	Brand Name	YUH-HUA
Place of Origin	Taiwan, China

Product Description

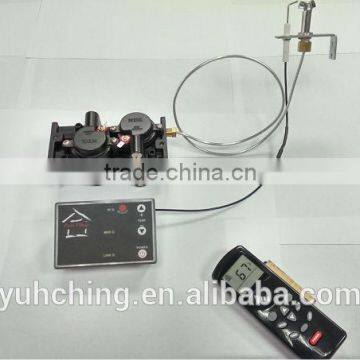

Fireplace Gas Valve Control System with Remote Controller (BK-368)

Product Description

Hot Point :

1. Totally remote controller. IR LCD Remote Controlled: End consumers will never use their hands to switch the button to turn on/off the heaters.

2. CE & UL & CSA Approved
3. For in door fireplace, outdoor patio heater and firepit..etc.
4. Both NG & LPG Adjustable
5. Includes of Gas valve & Ignition

6. ODS system is suitable

Specification :

1. Gas Type: Both Natural Gas & LPG (Propane)

2. Customerized Capacity: Can be adjusted by your market needs

3. Temperature : ~ 80^.C (175^.F)

4. Operation Voltage : 110 / 220 VAC ; 3 VDC

5. Output Voltage : 12~13 kV / min

6. Ignition Circles : 6 Hz at 3VDC

7. Maximum Operation Pressure : 1 / 2 psi (3.5 kpa)

8. Flame Faliure Respone Time : 25 +/- 5s (safty control system)

9. Flame Out safety

10. Children Saftey

11. Two Gates of Valves (Four valves inside and electronic control ignition) to avoid the leakage of Gas.

Features:

1. There are four stages of fires on this system. Pilot—>Small—>Medium—>Big fires

2. All functions are controlled by remote controller which means end consumers never use their hands to turn on/off under freezing weather again.

3. The most important thing is saftey. There are two gates of valves (all four valves) to contol the flow of gas in order to avoid the leakage of gases.

4. There is a Children saftey device on remote controller. Operator has to press Key press for 2 senconds to unlock and press the power key again then to turn on the heater.

5. Flame out saftey device. Please kindly find the operation rule in specification page 5.

6. Customerization service: we can adjust the BTU based on the gas pressure to match your markets demand to make sure the stability of fires.

7. There are 2 kinds of remote controller for choice. One is simple one for elderly people to use; another is one with LCD monitor for younger and fashion people to choose.

8. Only main system and 1 remote controller are necessary. Other accessries are optional.

9. ODS function is workable!

10. DC Battery for 3v and AC 100~240V all available in the meantime!

11. Emergency Device: While consumers meet Power Failure, they still can use DC power to go through freezing winter!
