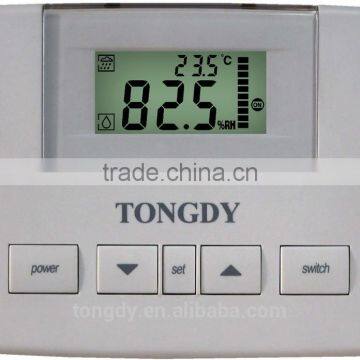

Digital temperature humidity controller
- Beijing
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | Tongdy | |
| Model Number | F2000P-TH | Theory | Other, on/off output to control temperature and humidity | |
| Output | Digital Sensor |
Product Description
Digital temperature humidity controller Features
u Detect and display ambiance relative humidity& temperature
u A high accuracy RH & Temp. sensor inside
u LCD can display working status such as %RH,
temperature, set point, and device mode, etc.
Makes reading and operating easy and accurate
u Provide one or two dry contact outputs to control a
Humidifier/dehumidifier and a cooling/heating device
u All models feature user-friendly setting buttons
u Enough parameters setup for end users for more
applications. All setup will be held even if power
failure
u Button-lock function avoids wrong operation and keep on the setup
u Infrared Remote Control (optional)
u Blue backlight (optional)
u Modbus RS485 interface (optional)
u Provide the controller with an external RH&Temp. sensor or external RH&Temp. sensor box
u Other wall mounting and duct mounting humidity controllers, please see our high accuracy hygrostat THP/TH9-Hygro series and THP –Hygro16 Plug-and-Play high-power humidity controller.
¨Specifications
| Power supply | 230VAC/110VAC/24VAC selectable in the order | |||
| Output | One or two Max. 5A relay/each for the On/Off output | |||
| Displaying | LCD | |||
| External sensor connection | Typical 2m, 4m/6m/8m selectable | |||
| Net weight | 280g | |||
| Dimensions | 120mm(L)×90mm(W)×32mm(H) | |||
| Mounting standard | Wall mounting in the wire box of 2”×4” or 65mm×65mm | |||
Sensor spec. | Temperature | Humidity |
| ||
Accuracy | ±0.5℃ (20℃~40℃) | ±4.0% RH (20%-80%RH), 25℃ |
| ||
Measuring range | 0℃~60℃ | 0~100%RH |
| ||
Display resolution | 0.1℃ | 0.1%RH |
| ||
Stability | <0.04℃/year | <0.5%RH/year |
| ||
Storage environment | 10℃-50℃, 10%~70%RH |
| |||
