carbon dioxide detector for Greenhouse, mushroom, grown room and other agricultural applications

Carbon Dioxide Detector Description:

Carbon Dioxide Detector Application:

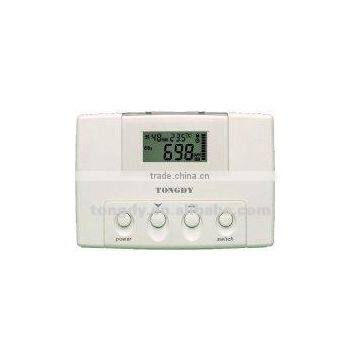

F2000IAQ-CO₂ monitor/controller is used tomonitoring and control room CO₂ level, as well as room temperatureand humidity, provide one or two or three 0~10VDC analog outputs and up tothree dry contact outputs . F2000IAQ-CO₂ can be as a programmablelogical controller to control CO₂ level, temperature or humidity,and also as a transmitter DDC/PLC controller or other automation systems. Itprovides a RS485 communication interface with an independent address to PC orother control systems.

Hotel, exhibition hall, hospital, shop, restaurant, airport, train station, theater and other public places

House, villa, office, meeting room, classroom and otherplaces

Greenhouse, mushroom, grown room and other agricultural applications

All ventilation systems

Carbon Dioxide Detector Features:

Multiple functions and high performance with low prices

Wall mounting type and duct type selectable

LCD display detecting both CO₂ level andtemperature, also relative humidity (optional)

  NDIR infrared CO₂ module inside with special ABC LogicSelf Calibration System. It makes the CO2 measurement more accurate and morereliable in use.

15 years lifetime of CO₂ sensor

Microprocessor control, quick response, high precision

  Provide up to three 0~10VDC outputs or relay dry contactoutputs, or up to three mix outputs.

The analog output with two alternatives: linearized overfull range output or PID control output

Different control mode for delays can be selected by user’sapplication, for example for ventilation or for greenhouse or otherapplications.

Locale adjustable range of CO₂: 0~20,000ppm or0~50,000;

adjustable range of temperature:5~45°C;adjustable range ofhumidity:5~95%RH

RS-485 communication interface optional, 15KV antistaticprotection, independent base address setting

  CE-Approval
