Home > Products > IAQ Detector/Controller > VOC monitor/alarm
VOC monitor/alarm
- Beijing
You May Like
Product Details
Place of Origin | Beijing, China | Brand Name | Tongdy | |
Model Number | G02-VOC-B3 | Usage | Gas Sensor | |
Theory | Other, Monitor indoor air quality | Output | Other, on/off output |
Product Description
Specifications
VOC monitor/alam1xon/off output to control a ventilator
Three-color backlit LCD and buzzer alarm
Temp. and humidity detecti

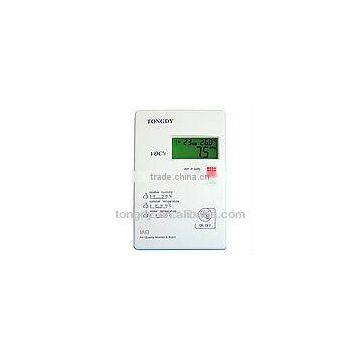

VOC monitor/alarm
VOC monitor/alarm Feature
Real time monitor ambiance air quality
Semiconductor mix gases sensor with 5 year life
Gas detection: cigarette smoke, VOCs such as formaldehyde and toluene, ethanol, ammonia, hydrogen sulfide, sulfur dioxide and other harmful gases
Monitor temperature and relative humidity
Three-color (green/orange/red) LCD backlitindicating air quality at optimal/moderate/poor
Preset warning point of buzzer alarm and backlight
Provide one relay output to control a ventilator
Modbus RS485 communication optional
High quality technics and elegant appearance, best choice for home and office
220VAC or 24VAC/VDC power selectable; power adaptor available; desktop and wall mounting type available
EU standard and CE-approval
IAQ is a comprehensive index, including room temperature, humidity, fresh air, and diverse air contaminants of low concentration. Monitoring IAQ is very important to guarantee healthy life and work. Air pollution caused by decoration, paints on new furniture, smoke from cigarette or cooker and life or office scrap has become an invisible killer of human life, especially to the infant, the pregnant and the old, it can also cause nerve disorder or weak immunity, which is a potential danger to health.
So the key point is to monitor and control the environment we live in, and make invisible pollution visible.
As there are many kinds of harmful gases in the air, it become really cost to monitor every single kind of air. It is recommended that CO and IAQ be monitored at home, and CO2, CO and VOCs in classroom and office.
G02-VOC monitor is specially designed to detect indoor air quality in offices and home environments. Its internal mix gases sensor has high sensitivity not only to VOC's such as toluene and formaldehyde from wood finishing and construction products but also to other air contaminants which are emitted by cigarette smoke, ammonia, hydrogen sulfide etc. It’s also sensitive to carbon monoxide, alcohol, disinfectant and other bad smells. So it is more suitable for monitoring IAQ than any other sensor that for a single kind of gas.
VOC monitor/alarm Application
Ambiance air quality detection and alarm
Ventilation systems
Air cleaning systems.
Installation place such as bedroom, sitting room, study and dinner room, kindergarten, classroom, office, car, restaurant, and other public places.
