Perfect All in 1 monitor for CO2,VOC,Temperature,humidity

Specifications

Perfect All in 1 monitor for CO2,VOC,Temperature,humidity

All in 1 monitor Introduction

The standard monitor has below two models

Carbon dioxide(CO₂)+CO₂ average +Temperature+ Humidity         (Model:DPM-1003)

 Carbon dioxide(CO₂)+CO₂ average +VOC +Temperature+ Humidity   (Model:DPM-1004)

Two unique extended functions (Optional)

 RF short-distance wireless transmission & reception

USB data logging

The product can be worked together with our wireless controller to control a ventilator, air cleaning device, or humidity device, based on the real-time measurements and the presetting values of the monitor.

 Application

all the areas where real time monitoring of indoor air quality such as residence, offices, kindergartens, classrooms in schools, hospitals, shopping malls, restaurants, cinemas and other open areas.

 Indicating and alarm for poor ventilation.

Used to control a ventilator, air cleaner or humidifier/dehumidifier

 Decrease air pollution and cross-infection for relative closed rooms.

ü  With the optional RF short distance wireless module inside, it can be connected to the telecom operating platforms, or other systems. Also realize the remote control

ü  USB data logging, record measurement data.

n  LCD and display

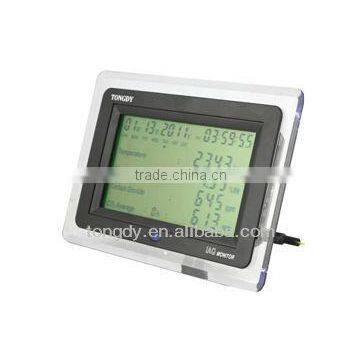

With large 7’’ LCD and 16:9 display, it can be hung easily on the wall or placed on the desk.

With the special self-adaptive brightness design, the LCD can be adjusted its brightness itself based on the light of indoor.

Three-color backlit of the LCD displays the clear and intuitionistic measurements of CO_2, VOC, and temperature, relative humidity.

The three-color backlit LCD indicates and alarm different air quality levels:

GREEN-for optimal air quality, YELLOW-for moderate air quality, RED-for poor air quality

self-adjusted brightness LCD, selectable 3-color backlit switch mode

 Monitoring Focus

ü  Carbon Dioxide (CO₂)

Indoor CO₂ level is a universal accepted parameter for the condition of indoor ventilation and air quality.

A time period can be preset from 1 to 24 hours, e.g. 5 hours, then the monitor can display CO₂ average level during this period, which provides an objective and true data for the measurement of the air quality in a certain space.

Non-dispersive infrared (NDIR) CO₂ sensor with more than 10-year lifetime

ABC self-calibration technology guarantees reliable CO₂ measurement

CO₂ range: 0~2000ppm/0~5000ppm optional

Rapid response, high stability and consistency

Mix Gases (VOC-Volatile organic compound)

VOC emitted from building materials, decoration materials and furniture, includes toluene, ammonia, H2S, formaldehyde and other harmful gases. Its necessary to real time detect these harmful gases. But it’s costly to use the professional instruments to detect each single gas. Also it’s possible to monitor for daily use. These gases exit in air for a long time and their volatilization level are different in different temperature and humidity, the reliability of such detection by a professional instrument for a single gas is very limited.

This multifunction IAQ monitor uses a mix gas sensor. It has high sensitive to kinds of volatile pollutant gases (VOC) such as ammonia, toluene, formaldehyde and cigarette smoke, alcohol, H2S, and carbon monoxide. So it is very suitable to monitor the general indoor air quality in real time and long term. The mix gases sensor responds quickly to any change of the concentration of such gases. Not only you may open windows for fresh air coming but also the monitor can control a ventilator/air-cleaning devise based on the indication and alarm.

 Built in the semi-conductor mix gases sensor

 5~7 years life time

 High sensitive to volatile gases like ammonia, toluene, formaldehyde, sensitive to cigarette smoke, alcohol, H2S, etc.

 Small volume, lower consumption

 Temperature and humidity

Switzerland digital temperature/humidity sensor built in with high accuracy and stability. It also has compensation to CO₂ and VOC which makes the measurements more accurate by minimizing environmental effects.

 Optional functions

 Short-distance wireless: built-in the optional short distance wireless module which can receive or transmit measurements, connect to other equipments for remote control, or connect to the telecom operating platforms to achieve applications like SMS note, cell phone remote control, auto and remote control a ventilator, dehumidifier/humidifier, air-cleaning and etc.

ü  Data logging: provide the USB data-logger with internal data-logging module, record real-time measurements, preset the sampling interval time, and can record maximum 60 days data if sampling interval time is 1 minute. Using the special software with the USB data logger, the record parameters can be preset and the data in the monitor can be copied to a USB disk and displayed in PC.

 Specifications

 Correlative wireless controller

This wireless controller has internal wireless transmission/access two-way module, with the IAQ monitor together; it can control a ventilator, temperature & humidity device, air-cleaning device, etc.

Easy installation and wiring.

The specifications of the controller is as below
