Ldpe Hdpe Plastic Shrink Film Blowing Machine
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
PP PE 5 Layers POF Shrink Film Blown Film Machine
-
Ultra-high Molecule Weight Polythelene Pipe Plastic Extruder Machine
-
Ultra-high Molecule Weight Polythelene Pipe Plastic Extruder Machine
-
SBG(2000)BIG CALBER CENIET HOLLOW WALL SPIRAL PIPE EXIRUSION LINE
-
Plastic Rope Drawing Machine
-
High Output Ultra-high Molecule Weight Polythelene Pipe Extrusion Line
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Other, Extrusion blowing | |
| Automatic | Other, Semi automatic | Place of Origin | Shandong, China | |
| Brand Name | RUNHUA | Model Number | 3FM2200 | |
| Voltage | 380V/3PH/50HZ | Power(W) | 135kw | |
| Dimension(L*W*H) | 9000X7500X8000mm | Weight | 16000kg | |
| Certification | ISO | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Ldpe hdpe plastic shrink film blowing machine
Laiwu Runhua Plastic Machinery Co., Ltd specilized in the field of plastic film blowing machine near 30 years.
Mainly with following production lines of small-scale plastic packaging film blown machine:
Commmon pe film blowing line
3-5 layer pof heat-shrink film blowing line
5 layer high barrier film blowing line
multi-layer stretch film blowing line
1. Machine adpot latest technology of rotary die, up traction rotation, highly improve film uniform quality.
2. Avialable to process with raw material of pe, lldpe, ldpe, hdpe, eva or recycled materials.
3. Extruder adopts wavy screw, with oblique barrier and the mixing screw head, stable function, reliable, high-output and low energy consumption.
4. Has the character of good plasticize, high physical and mechanical performance, strong tear resistance.
5. The die adopts central feeding spiral channel forming technology, machinning centre processed.
6. All machine subject to customized production.
Main machine parameters for 3 layer plastic blown film extrusion machine
MODEL | 3FM1100-I | 3FM1300-I | 3FM1600-I | 3FM2200-I | |
Max.lay-flat width(mm) | 1000 | 1200 | 1500 | 2000 | |
Raw material | LLDPE, LDPE, HDPE, mPE, EVA, master batch or Recycled material | ||||
Film thickness | 0.001-0.1mm | ||||
Optional | Rotary die, automatic winder, IBC cooling, auto loader | ||||
Film Layers | 3 | ||||
Screw diameter(mm) | φ45/φ45/φ45 | φ45/φ45/φ45 | φ45/φ55/φ45 | φ55/φ65/φ65 | |
Max. plasticizing capacity (LDPE) | 120Kg/h
| 120 Kg/h
| 160 Kg/h
| 200 Kg/h
| |
Die diameter(mm) | φ200 | φ300 | φ350 | φ500 | |
Air ring structure | Dyke and dam mode, even air structure | ||||
Winding roller length(mm) | 1100 | 1300 | 1600 | 2200 | |
Haul-off.Wind-up speed | 3~30m/min | ||||
Total power(KW) | 90 | 92 | 110 | 135 | |
Overall dimension(mm) | 9000X5500X6500 | 9000X5700X6500 | 9000X6500X7000 | 9000X7500X8000 | |
Weight (kg) | 12000 | 12500 | 14000 | 16000 | |
Detail images for Ldpe lldpe hdpe high speed 3 layer plastic blown film extrusion machine

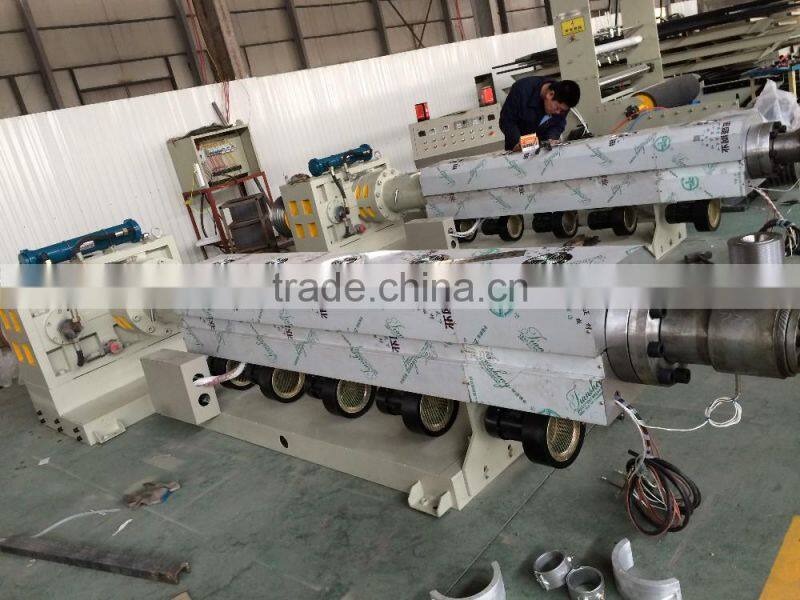

| | Name: Extruder Brand: RUNHUA Original: China Own design, screw with structure of mixer, barrier, distributing etc. |

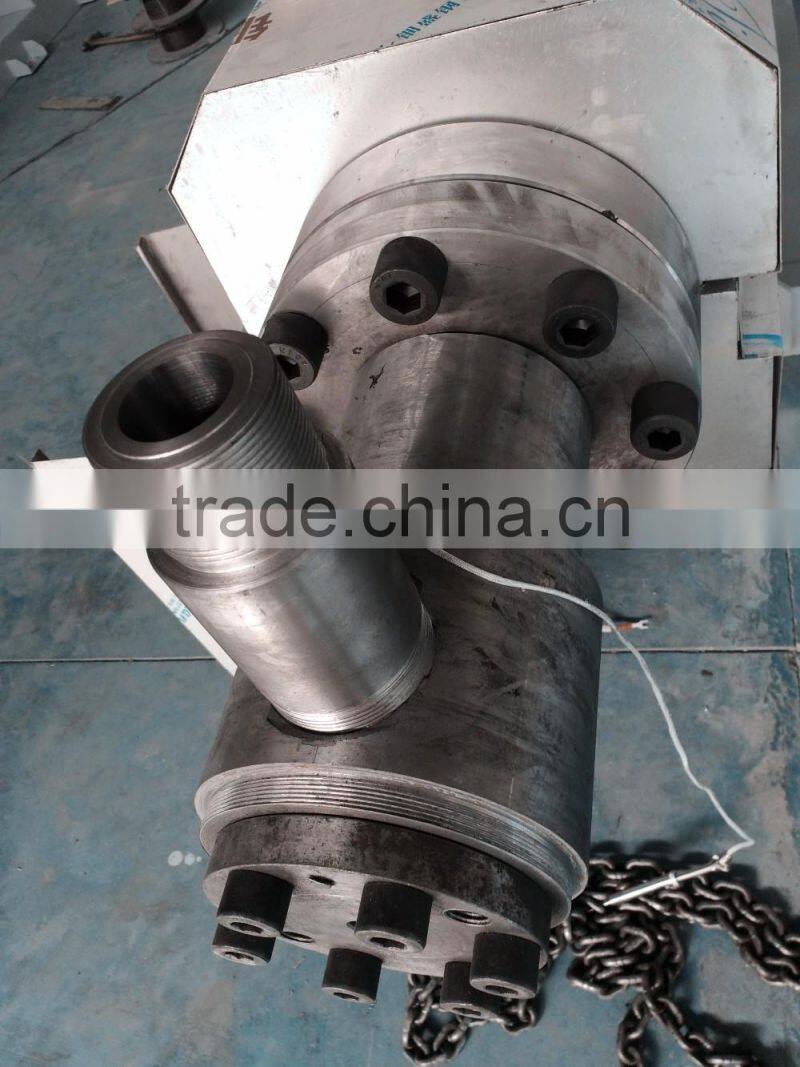

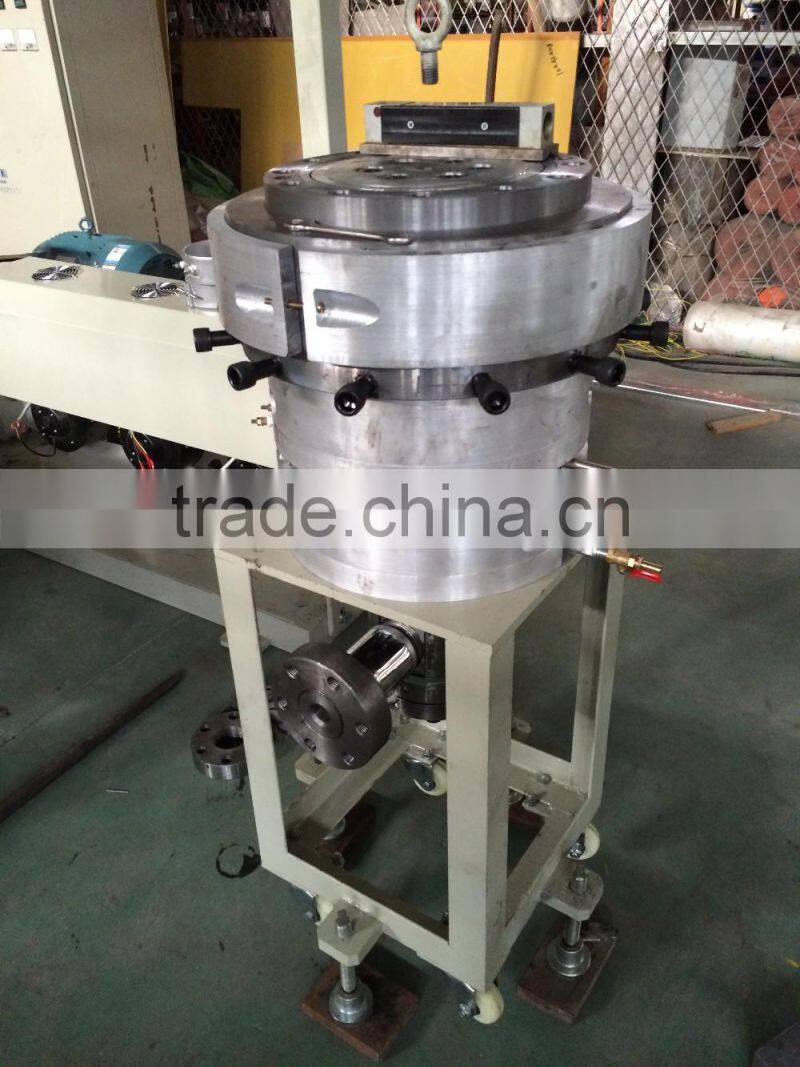

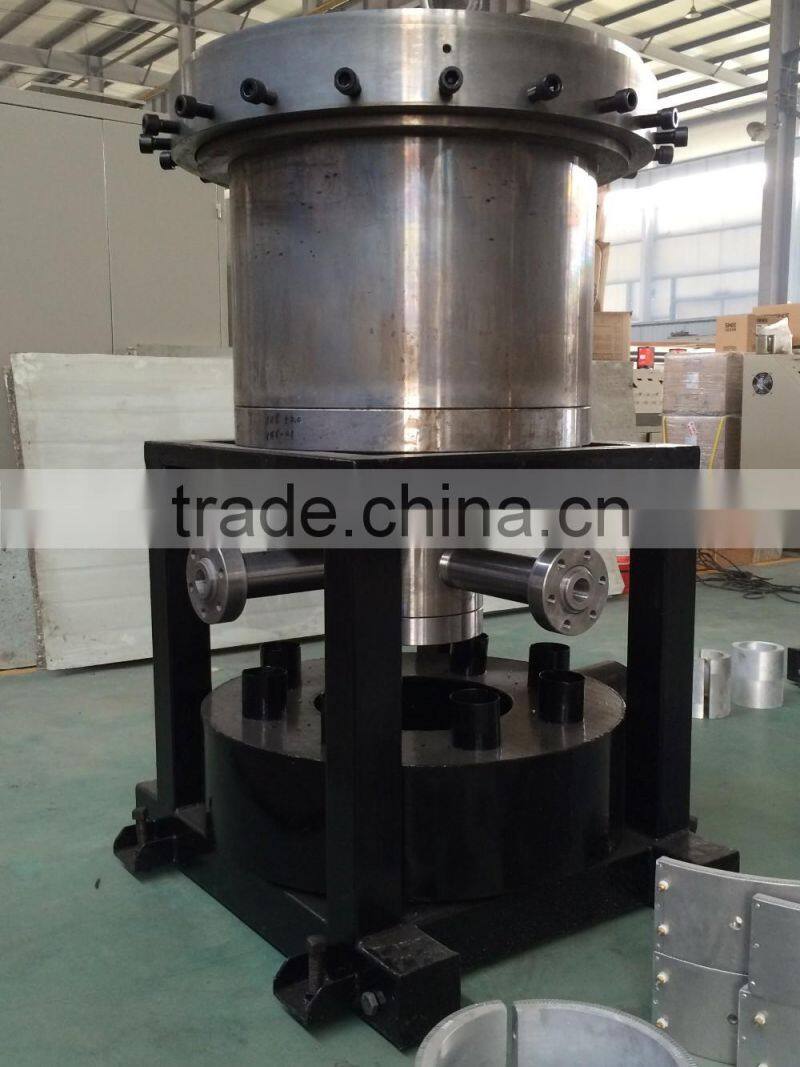

Name: Die head Center-feed die head. | |

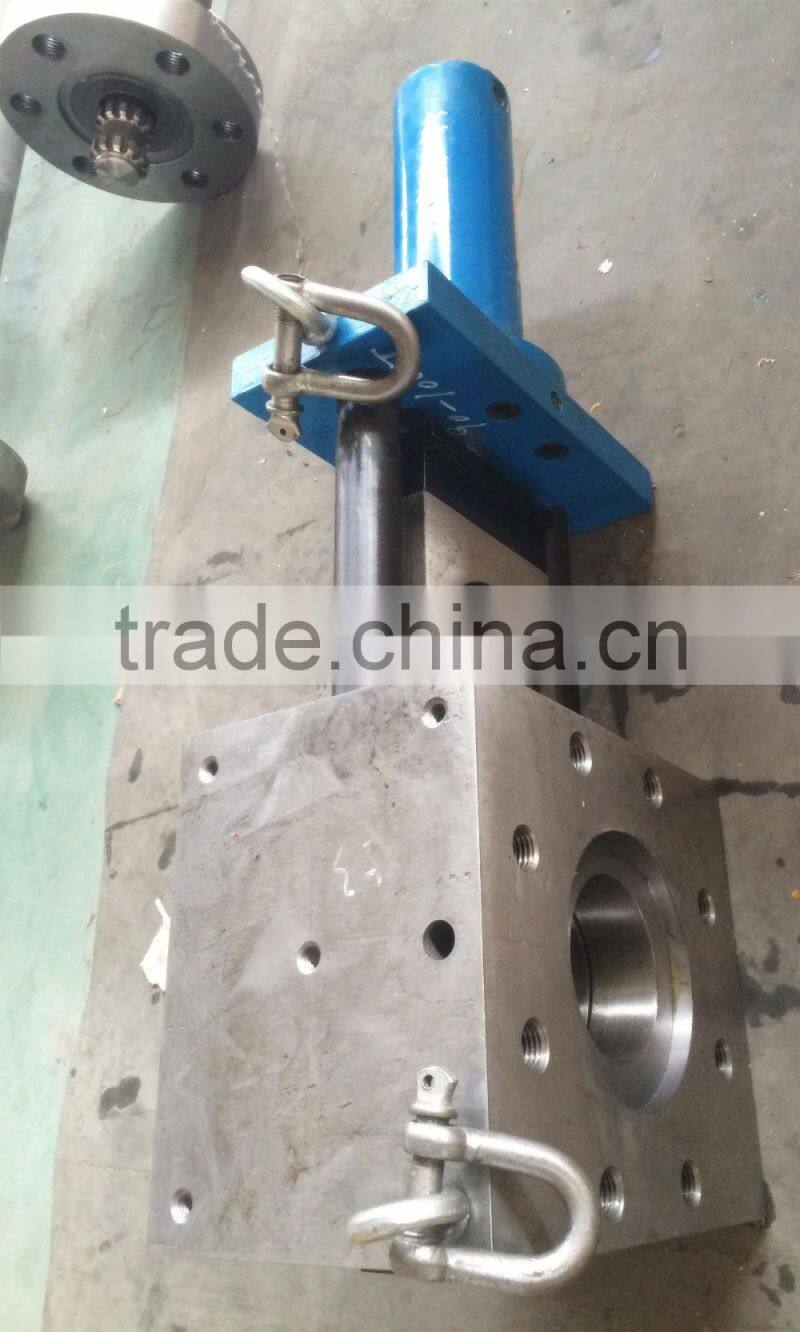

| | Name: Screen changer Manual long-term cylindrical screen changer, need machine shut down each time. Hydraulic quick screen changer, auto change via hydraulic station, no need machin shut down. |

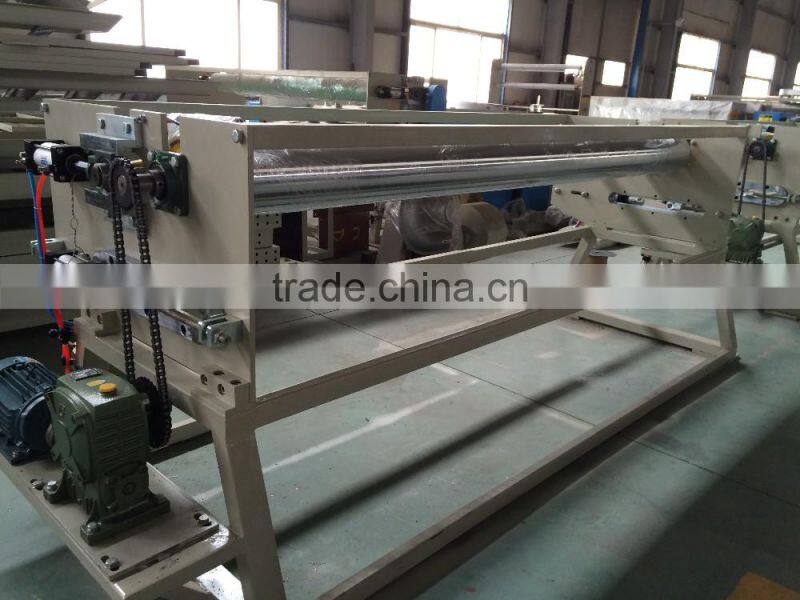

| | Name: Guide roller One steel roller, one nitrile rubber roller |

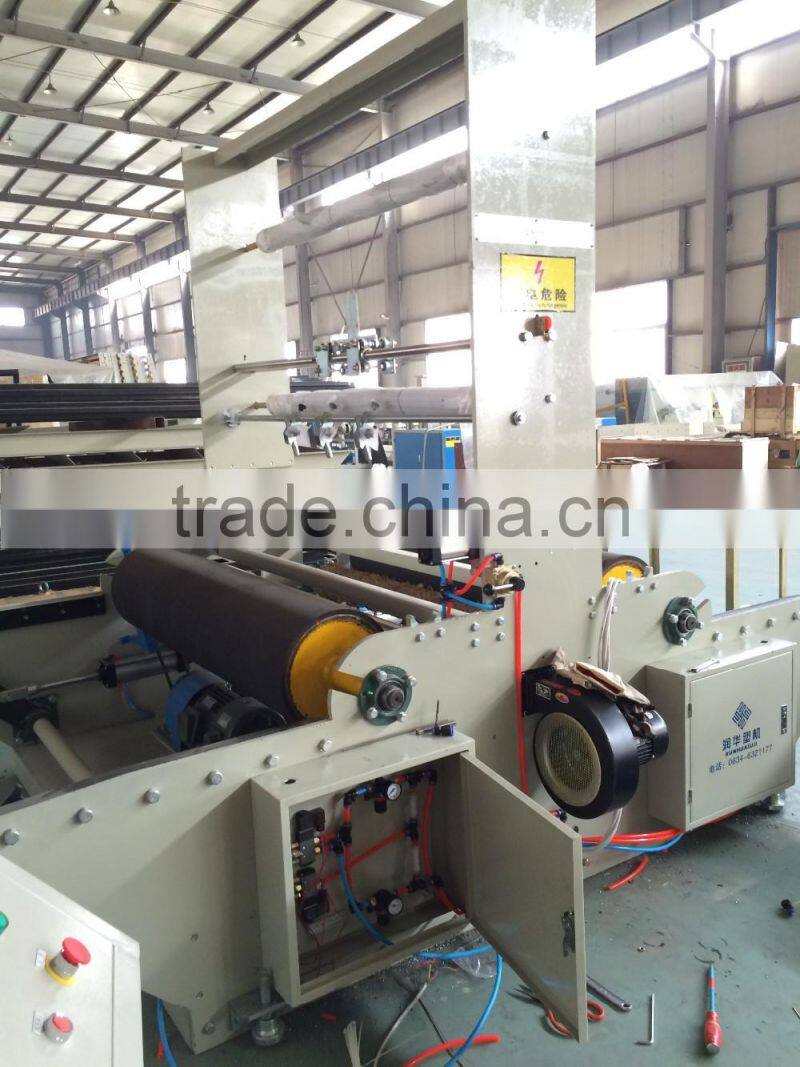

Name: Guide roller Double surface rewinding Fraction rewinding | |

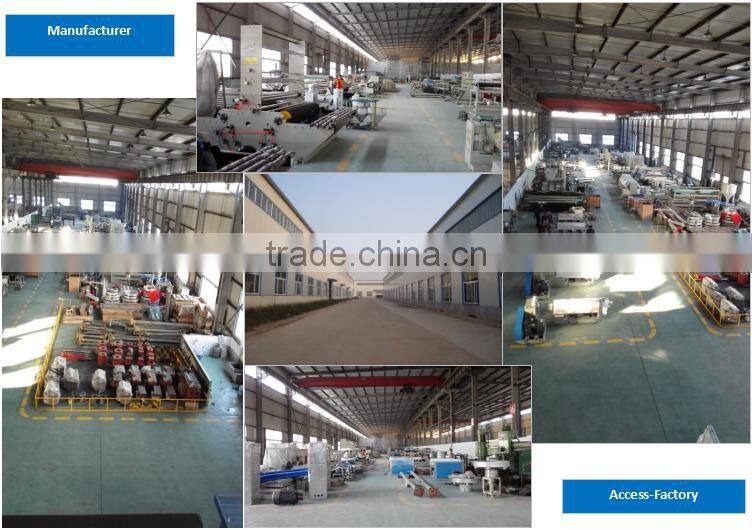

Laiwu Runhua Plastic Machinery Co., Ltd is a high-tech enterprises integrating R&D, production, sales and service. As one of the member of Agricultural Film Comittee of China Plastic Industry Association, Runhua has continuously been rated as the advanced group of National agricultural film technology R&D many years. We attach great importance to technology innovation and R&D work, equipped with plastics equipement research institute, quality control center, maketing and foreign trade department etc.

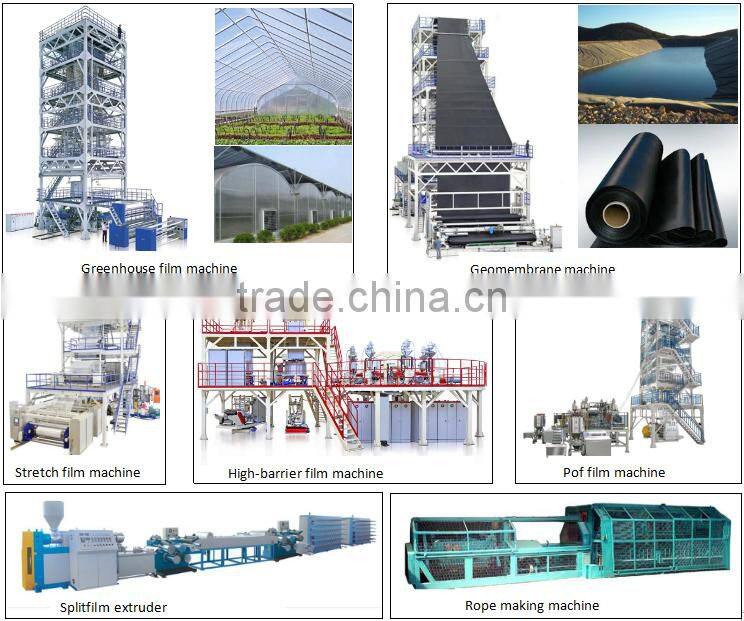

So far, the main production line include:
3-24 meters 3-5 layer greenhouse film blowing machine
4-20 meters outer coating PO greenhouse film blowing machine
0.5-3 meters agricultural mulch film blowing machine
1-9 meters 1-4 layer geomembrane machine
1-7 layer PE pof shrink film, stretch film, high-barrier film blown line
PE PP splitfilm extruder line(plastic yarn extrusion line)
3-24mm rope making machine
Main products line of Runhua:
