pp pe mono filament extruder line
- 10 Set / Sets per Month
- Qingdao
- T/T L/C Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Other, Wire, twist rope | |
| Plastic Processed | Other, plastic rope | Screw Design | Single-screw | |
| Automatic Grade | Semi-auto | Place of Origin | Shandong, China | |
| Brand Name | RUBHUA | Model Number | PLW700 | |
| Voltage | 380V, 3-PHRASE, 50HZ | Power(W) | 18.5KW | |
| Dimension(L*W*H) | 26500X3200X2600 mm | Weight | 23000-25000KG | |
| Certification | CE, ISO9001, CO, CIQ, FTA | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
pp pe mono filament extruder line
1. The machine, using material of polypropylene and high density polyethylene, through heating, extruding and drawing, makes tape that is then winded for the weaving of the circular loom.
Having been improved so many times, the machine can use 100% recycled PP and PE granules or powder to produce yarn.
2. The screw and cylinder of extruder are made of 38CrMoAlA alloy steel; the hardness is over HV950 after nitrogenation treatment.
3. Helical gear reducer made of 20CrMnTi alloy steel is applied to the extruder.
4. The extruder adopts aluminum cast heater, which is endurable.
Model | PLW700(Flat wire drawing machine) | PL700(Mesh drawing machine) |
Extruder screw diameter | 65 | 65 |
Extruder screw length-diameter ratio | 30 | 30 |
Driving power | 18.5KW | 18.5KW |
Screw speed | 10-100r/min | 20-100r/min |
Changing sieve mode | Binocular long-term filter | |
Die lip width | 700 | 700 |
Cooling water tank | flooded | |
Net open way | Needle roller | |
Traction mode | roll type, pneumatic clamping | |
Dryer heating | arc plate, electrical heating | |
Stretcher | seven roller, large angle | |
Extruder driving power | 11KW | 11KW |
Extension ratio | 4-10 | 4-9 |
Winding NO. | 20 | 20 |
Dimension | 26500X3200X2600 | 32000×4000×2500 |
Round wire
Wire drawing root number: PE for 180, PP for 60(if no special request, factory setted With 180 PE mould )
Product specification: round wire diameter 0.15-0.25mm
Wind-up No: 96(practical use 90, for change and reserve 6)
1*EXTRUDER
TYPE | SJ-65/30 |
SCREW DIAMETRE | 65mm |
L/D RATIO | 30:1 |
2*DIE
Die type | Right-angle dise-type |
SPINNERET HOLE NO. | PP60; PE180 |
SPINNERET DIAMETER | PP 3.5mm; PE 1.0mm |
Heating power | 2.8KW |
3*COOLING WATER BOX
Water temperature control way | Cooling circulation |
Overall dimension of the box | 1264*644*545mm |
4*FIRST HAULING-OFF MACHINE
Hauling speed | 5-20m/min |
Traction roller spec (diameter *length) | 350*500 |
Hauling roller No. | 5 |
Driving motor | 5.5KW |
5*HEATER DEVICE
Heater way | PP: circulating hot air ; PE: boiling water heating |
Heater power | Hot air circulation type 0.6*36=21.6KW Water heating type 2.0*21=24.0KW |
Circulating hot air | Use air blower power: 4.0KW Air volume 2700m3/h |
6*SECOND HAULING-OFF MACHINE
Hauling-off speed | 50-150m/min |
Hauling-off roller spec (diameter *length) | 350×500mm |
Hauling-off roller No. | 5 |
Driving motor | 11.0KW |
7*WINDING MACHINE
Wind-up No. | 96(in fact use 90, change and reserve 6) |
Roll core specification | 60×600mm |
Driving motor type | A75624-10 torque, 10kgcm |
Roll silk arrangement shape control | Stand type control/ Row silk form ping-pong |
Winding linear speed | Over 50-150m/min |
Seperate parts for pp pe mono filament extruder line
1. THE FIRST HAUL PART
| 2. THE SECOND HAUL PART
|

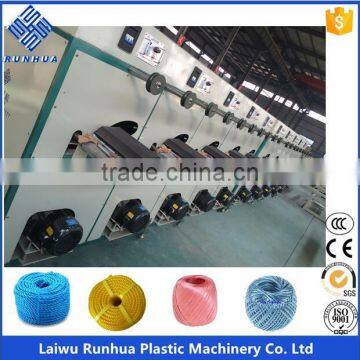

3. THE COOLING PART | 4. THE REWINDING PART
|
5. PLASTIC ROPE MAKING MACHINE
| |
| |
Company: R&D manufacture |
Trade terms: EXW, FOB, CIF |
Payment terms: T/T, L/C, 30% deposit in advance. |
Packaging: standard film packing for oversea transportation. |
Warranty: 12 months. |
Shipping: ocean container transportation. |
Delivery detail: within 60 days after advanced deposit received. |
Laiwu Runhua plastic Machinery Co., Ltd is a high technology enterprise which collects departments of Reserach& Development, Production, Sales and Service. We are specialized in plastic extruder, drawing machine, film blowing machine. Our engineers and experts are available to support you oversea.
Main products: Agriculture film blown film line, Geomembrane film blowing film line, Packing film blown film line, Plastic rope production line, Plastic bag production line
Available material: LDPE, LLDPE, HDPE, PP, mPE, EVA and blended, Recycled, Bio degradable material etc.
1-7 layers co-extrusion supported, with large range for film width and thickness based on your detail demands.
12 months' quality guarantee, and we supply top quality and service. Engineers available to serve for customers overseas.
CONSULTING SERVICE
Different customers have different needs, you could tell us your special requirements, our engineer will design the machine as your require.
INSTALLATION SERVICE
Installation service are available with all new machine purchases. We will provide the technical konwledges to help you installing the machine, so you can put the machine into use as soon as possible.
CLIENT TRAINING SERVICE
We can train your staffs to use your equipment. First, we will trian your staffs use the equipment properly. Second, we will tell them how to use the raw materials to produce the film. Different materials and different proportions will lead to different films. After our training, you staff can produce any films you want.
AFTER-SALE SERVICE
We offer the persistent mantainence service and permenate technical assistance. It's benefit to the prevention of the problems and solveing questions as soon as possibe.
