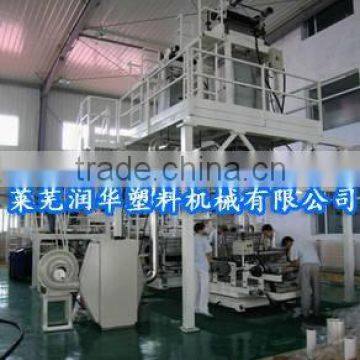

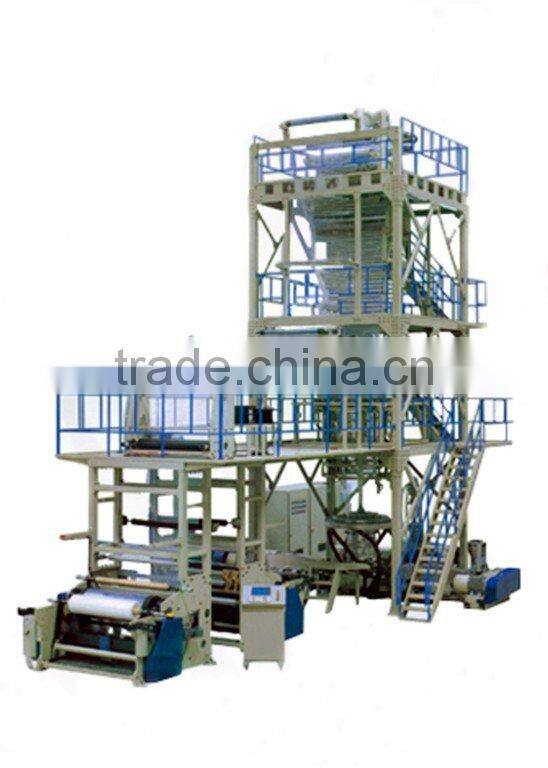

Coextrusion Plastics Film Blowing Machine
US$ 10,000 - 20,000
/ Set
1 Set(Min. Order)
- FOB Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | RUNHUA | |
| Model Number | 3FM |
Product Description
Specifications
1,film blowing machine2,making any layer film
3.multil ayers film, extruder
4,film extrusion
5,film equipment...
3
film blowing machine
| type | 3FM1100-1 | 3FM1300-1 | 3FM1600-1 | 3FM2200-1 |
| max.layflat width | 1000 | 1200 | 1500 | 2000 |
| raw material | LLDPE.LDPE blend compound.mPE.EVA | LLDPE.LDPE blend compound.mPE.EVA | LLDPE.LDPE blend compound.mPE.EVA | LLDPE.LDPE blend compound.mPE.EVA |
| layer number of laminating | 3 | 3 | 3 | 3 |
| screw diametre | 45.45.45 | 45.45.45 | 45.55.45 | 55.65.65 |
| max.plasticzing capacity | 120kg/h (LDPE) | 120kg/h (LDPE) | 160kg/h (LDPE) | 200kg/h (LDPE) |
| mm die | 200 | 300 | 350 | 500 |
| air ring structure | dyke and dam mode .evev air structure | dyke and dam mode .evev air structure | dyke and dam mode .evev air structure | dyke and dam mode .evev air structure |
| haul-off length | 1100 | 1300 | 1600 | 2200 |
| haul-off wind-up speed | 3-30m/min | 3-30m/min | 3-30m/min | 3-30m/min |
| total power | 90 | 92 | 110 | 135 |
| overall dimension | 9*5.5*6.5 | 9*5.7*6.5 | 9*6.5*7 | 9*7.5*8 |
| weight | 12 | 12.5 | 14 | 16 |
