200 Microns 3 Layer Coextrusion pe Greenhouse Film Machine
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Ldpe 10m ABC 3 Layer Coex Greenhouse Film Blowing Extruder
-
3 Layer 100-200 Microns Ldpe Greenhouse Plastic Film Making Machine
-
3 Layer Ldpe Lldpe Agricultural Plastic Blown Film Machine
-
3 Layer 10m Wide Plastic Film Blowing Machine for Greenhouse
-
200 Microns 3 Layer 10m Agricultural Film Blowing Extruder Machine
-
ABC 3 Layer Ldpe 8m Wide Greenhouse Film Blowing Machine
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Other, Semi auto | Place of Origin | Shandong, China | |
| Brand Name | RUNHUA | Model Number | 3FM3000 | |
| Voltage | 380V/3PH/50HZ | Power(W) | 700kw | |
| Dimension(L*W*H) | 14000X9000 X19300mm | Weight | about 66T | |
| Certification | ISO | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
200 microns 3 layer coextrusion pe greenhouse film machine
The PE Greenhouse Film Blowing Machine made by RUNHUA Company had already successfully widely used by domestic large-scale manufacturer, such as Baishan Xifeng Plastic Limited Liability Company, Tianjin plastic Science & Technology Group Co.,Ltd, Beijing Huadun Snow Plastic Group etc. Therefore, many times win the bidding of large-scale bidding projects, such as CNPC, SINOPEC, Agricultural Bureau of middle west each provinces etc. Due to the improvement of longitudinal and transverse strength, agricultural film made by us enjoying good adaptation to severe weather.
RUNHUA Greenhouse Film Blowing Line
Film width range: 3-22meters(unfolding wide)
Film thickness: 0.05-0.2mm
BUR: 1.3-2.6
Film layers co extrusion: 1-5 layer
Processed material: pe, ldpe, lldpe, mpe, eva, master batch or recycled materials
Film function: anti-uv, anti-fogging, anti-dripping

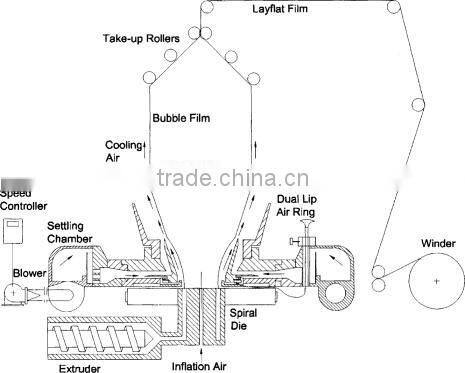

Consist parts of one set machine 1. Single-screw Extruder 2. Screen changer 3. Die head 4. Air ring(cooling fan and connecting soft tube) 5. Herringbone, plugboard and sizing cage 6. First traction device 7. Second traction device 8. Rewinder device 9. IBC inner cooling of film bubble 10. Matched spare parts one set | |
Technical data for 200 microns 3 layer coextrusion pe greenhouse film machine
MODEL | 3FM3200 | 3FM2800 | 3FM3000 | 3FM3500 | 3FM4500 | 3FM5000 | |||
Max. Unfolding Width(mm) | 6000 | 8000 | 10000 | 12000 | 14000 | 16000 | |||
Film thickness(mm) | 0.05-0.2mm | ||||||||
Traction/Rewinding roller length(mm) | 3200 | 2800 | 3000 | 3500 | 4500 | 5000 | |||
Raw material |
LDPE, LLDPE, HDPE, mPE, EVA, master batch and compound or recycled material | ||||||||
Diameter of air ring(mm) | 3200 | 3500 | 3800 | 4000 | 4200 | 4500 | |||
Die diameter(mm) | 1000 | 1100 | 1450 | 1600 | 1900 | 2300 | |||
Traction&winding speed | 3-30(m/min) | ||||||||
Extruder | SJ-90/30 X3 | SJ-90/30 x2 SJ-120/30 | SJ-120/30x3 | SJ-135/30 x2 SJ-150/30 X1 | SJ-180/30 x1 SJ-150/30 X2 | SJ-180/30 x2 SJ-200/30 | |||
Extruder driving power(KW) | 90x3 | 90x2, 132x1 | 132x3 | 280x1 200x2 | 280x1 315x1 | 315x2 375x1 | |||

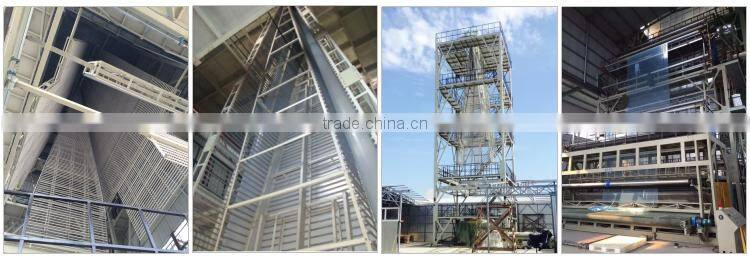

Traction height(mm) | 17000 | 17500 | 19000 | 22000 | 24000 | 26000 | |||
Wind-up method | Even 8 rollers winding | Double-station back-to-back type winding | |||||||
Lay-flat mode | Side gusset or inverted triangular frame | ||||||||
Total power(kw) | 600 | 660 | 700 | 900 | 1200 | 1500 | |||
Overall dimension(mm) | 13000X9000 X17500 | 14000x9000 x17500 | 13000X9000 X19300 | 14000X10000 X22000 | 14000X11000 X24000 | 14000X12000 X26000 | |||
IBC Cooling | Die head film bubble inner cooling system | ||||||||

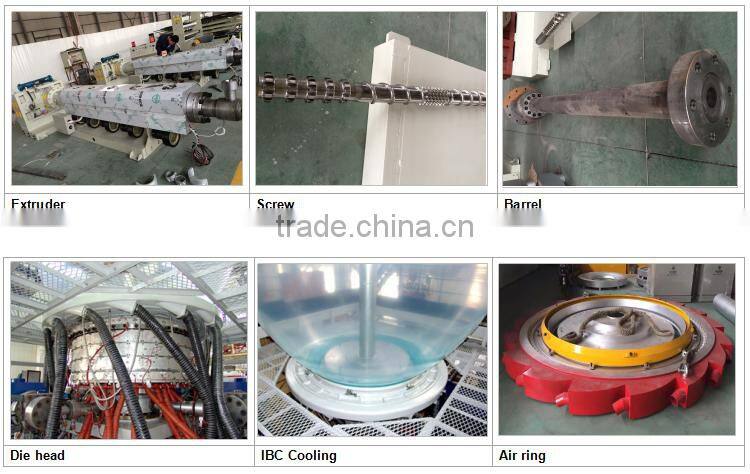

Machine extruder: Own design, screw with structure of mixer, barrier, distributing etc. Matched with standard power motor. Matched with standard Model gearbox |
Die head: Large-scale composite die, center-feed, multi-layer co extrusion Matched with load-bearing car Chrome plated and polishing treatment |

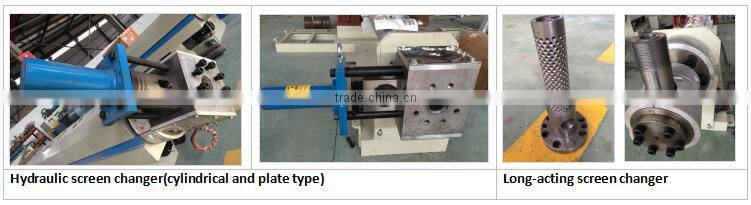

Cylindrical hydraulic screen changer: auto quick screen change, no need machine halt Cylindrical long-acting screen changer: low cost, manual change, machine stop necessary each time.
|

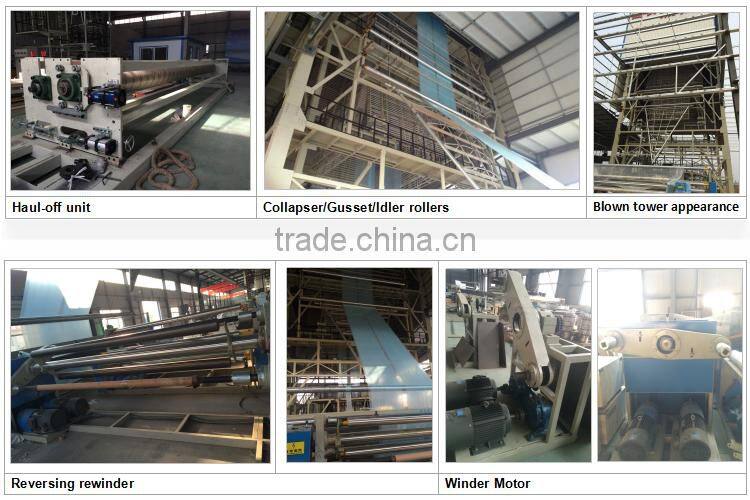

Take-up device Nip rollers: one steel material, one rubber material Nip roller open and close way: pneumatic
|
Collapser and Gussets To fold film to your ideal wdith size
Inverted Triangular fold device Fold film 8 times, to get your needed size of film winding. |
Rewinder device: Overturn type, surface fraction, center-rewinding |

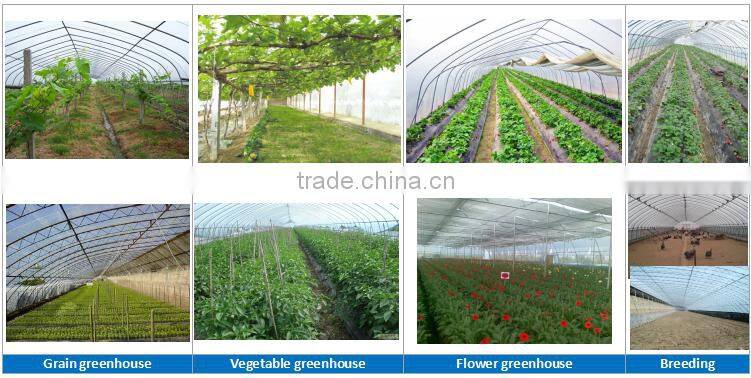

| Various greenhouse application |
|
The Terms and Conditions 1. Trade terms: FOB, CFR, CIF, FCA, CPT, CIP 2. Transportation way: ocean or land 3. Payment terms: 30%T/T + 70%T/T, 30%T/T + 70%L/C, or 100% L/C(for specilized country) 4. Package: disassembled nude packing in container, accessories with stretch film packing 5. Warranty: 12 months after develiry 6. Engineers available for oversea installation direction. 7. Shipment: by sea, by land, by air |
|
RFQ 1. Manufacturer or Trading Company? Manufacturer 2. Customized production or flow line production? Customized production, configuration as your specific demands 3. Provided technical support or not? We provide full set technical supports, for machine design, raw material ratio application, film economic prodution etc, engineers available for oversea installation guidance 4. Can we check running machine before order? Yes, we have domestic customers here, you can check the machine in working condition in their workshop 5. Have you exported before? We do export business since 2009, now we have already exported to Russian, Turkey, Slovenia, Japan, South and North Korea, Algeria, Argentina, Nigeria and Southeast Asia etc |
Factory Location Laiwu, Shandong, China
Nearest Airport: Jinan Yaoqiang International Airport
Nearest High-speed Rail Station: Tai’an Station
Welcome your visiting! | |
