Used Hydroponic Greenhouses

FOB Price

US$ 3 - 10 / Square Meter

100 Square Meters(Min. Order)

Port Shanghai/Guangzhou/Tianjin/Chongqing
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Size	Large	Type	Multi-Span Agricultural Greenhouses
Cover Material	Film	Material	PE
Layer	Single	Model Number	BLD-M
Place of Origin	Sichuan, China	Brand Name	BaoLiDa

Product Description

used hydroponic greenhouses

Main structure:hot dip galvanized steel pipes connected by appropriative connectors.All the pipes and are anti-rust treated.

Film:poly,pe, pvc film,single or double layer,different thickness according to the design.

Ventilation:manual or electrical roller

Irrigation:sprinkling or dripping irrigation.

Sun shading:with or without inside and outside shading system,depending on the design.

Greenhouse Dimensions
Span Width	6m/8m,9m/10m ...
Length	30-100m
Bay	4m/8m/12m....
Gutter Height	3-6m
Top Height	3-8m
Tips	The greenhouse dimension is changable according to practical situation.

Greenhouse Covering
Plastic Film	Thickness: 0.06mm,0.08mm,0.10mm,0.12mm,0.15mm,0.20mm
Poly Carbonate Anti-fog Sheet	Type	Thickness	UV side	Light Transmittance
	2-wall R-Structure	8/10/12mm	1/2	83%/82%/81%
	3-wall R-Structure	8/10/12/14/16/18/20mm	1/2	73%
	4-wall R-Structure /H-Structure	8/10/12/14/16mm	1/2	73%/58%/57%/56%/55%/53%

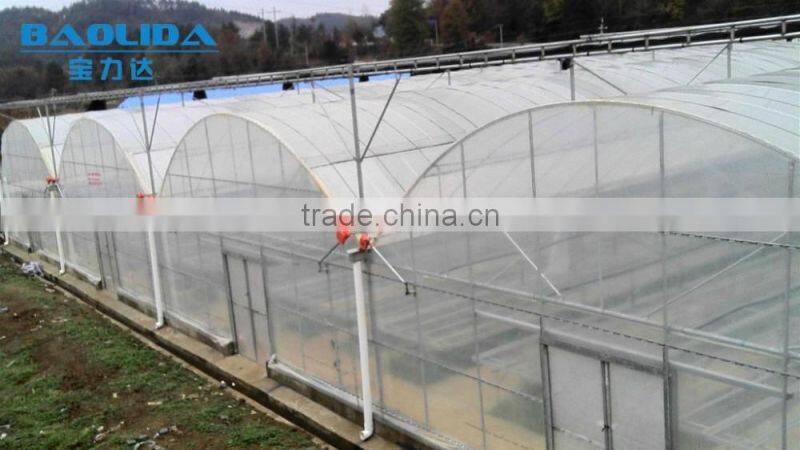

Multi Span Vegetable Greenhouse Covered By Polythene Film Image

Advantages

1.The large inner space makes it possible for small-scale mechanized farming.

2.Uniform temperature distribution in the greenhouse.

3.High efficiendy in land-use.

4.All the metal component are anti-corrosion tteated.Which makes the greenhouse with high intergral strength,It is able to resist strong wind and snow.

5. You can do shading ,cooling ,heating,irrigation,hydroponic,seedling etc. with this greenhouse.

6.The service life of the greenhouse can be more than 15 years.

Usage

.vegetable cultivation

.Flower cultivation

.Fruits such as grapes,strawberry,watermelon,orange etc,.

.Forestry seeding cultivation,planting ornamental tree and shrub.

.Aquaculture and animal breeding.

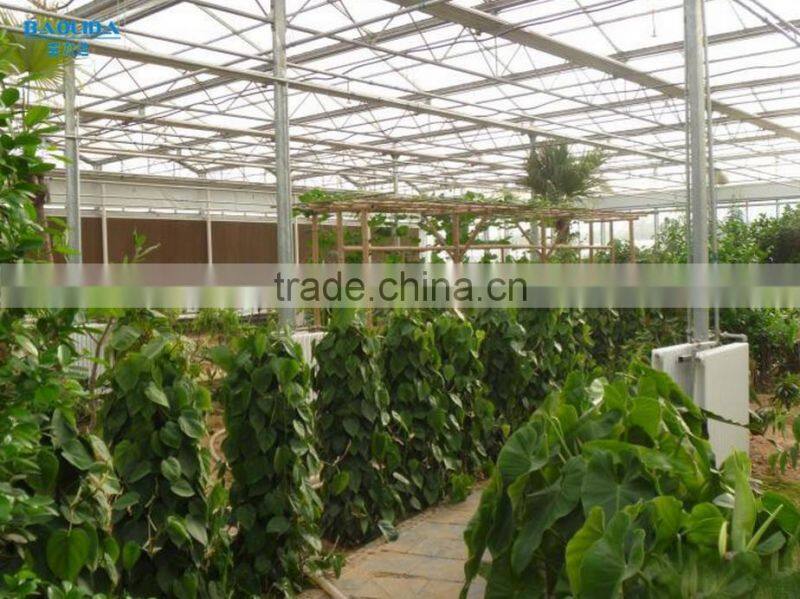

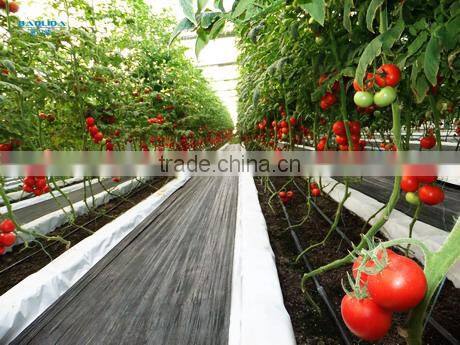

Vegetable Greeenhouse

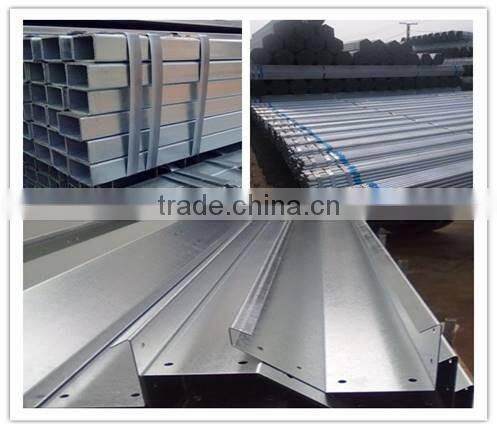

Hot Dip Galvanized Steel Material

Greenhouse Shading
	Type	Shading rate	Fractional energy saving
Outside Shading Net	Black knitted net	50%/65%/75%/85%/90%	12%/20%/24%/28%/30%
	Basic black knitted net	50%/60%/70%/80%/85 %	12%/18%/21%/25%/28%
	Folding black shading net	70%/80%/85%	21%/25%/28%
	Black -white shading net	55%/65%/75%/85%/99%	52%/62%/70%/80%/95%
	Green knitted shading net	70%	21%
Inside Shading Net	Aluminum foil	55%/65%/75%/85%/95%/99%	53%/61%/67%/78%/84%/89%
	Transparent insulation curtain	Light transmittance 80%	45%
	Aluminum foil insulation curtain	50%/65%/75%/85%/95%/99%	53% /61% /67% /78% /84% /89%

Supporting Systems

Installation

We can provide greenhouse installation of all types of greenhouses.
