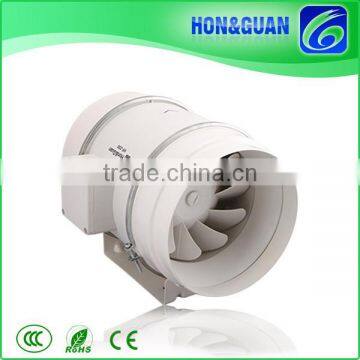

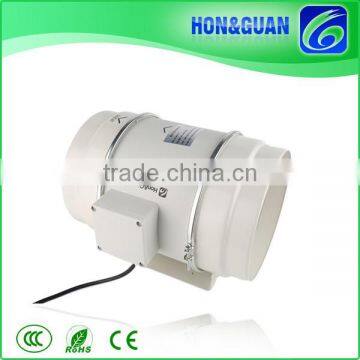

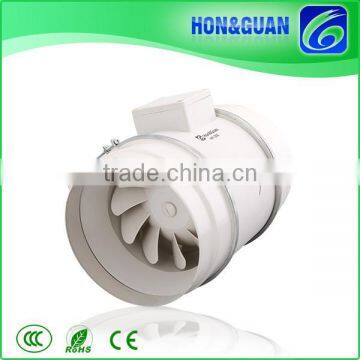

Hon&Guan 8Inch 840CMH Airflow Mixed Flow Inline Duct Fan for Basement
- shenzhen
- T/T Credit Card PayPal
You May Like
-
8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan
-
Exhaust Fan Duct Fan Ceiling Fan for Toilet Bathroom
-
House Ventilation Mixedflow Inline Duct Fan Easy Installation
-
3"/4"/5"/6"/8"/10"/12" Mixed Flow Inline Duct Fan
-
2017 New Wholesale 5" Free Standing Exhaust Fans for Chicken Coop/hvi Bathroom/warehouse/bedroom (EC Motor Supportable)
-
2016 New Wholesale 10" Fireproof Hot Air Smoke Exhaust Fan
Product Details
| Electric Current Type | AC | Mounting | Duct Fan | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | Hon&Guan or OEM | Model Number | HF-200P | |
| Voltage | 110-240V | Power | 128W | |
| Air Volume | 840CMH | Speed | 2450RPM | |
| Certification | CCC, CE, Other, CCC, CE, SAA | After-sales Service Provided | Overseas service center available |
Product Description
Hon&Guan 8Inch 840CMH Airflow Mixed Flow Inline Duct Fan for Basement
Product Features:
- The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function.
- Using ABS blades, design by hydromechanics to reach the optimal air and pressure.
- Two-speed motor, imported NMB ball bearing, it's life expectancy up to 50,000 hours.
- IP44 Protection class, waterproof and dustproof more effective.
- Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design.
- Run the ambient temperature range: -20°C~60°C.
Hon&Guan 8Inch 840CMH Airflow Mixed Flow Inline Duct Fan for Basement
Performance Parameter:
| Model | Gear | Voltage/Frequency | Current | Power | Speed | Weight | Air Flow | Air Pressure | Avg. dBA@3m |
| (Amps) | (W) | (RPM) | (Kg) | (M3/H) | (Pa) | (db) | |||
| HF-100 (4") | H | 230V/50Hz | 0.12 | 26 | 2200 | 2.0 | 198 | 156 | 31 |
| L | 0.11 | 23 | 1850 | 165 | 131 | 26 | |||
| H | 115V/60Hz | 0.26 | 30 | 2200 | 198 | 156 | 31 | ||
| L | 0.24 | 28 | 1850 | 165 | 131 | 26 | |||
| HF-125 (5") | H | 230V/50Hz | 0.14 | 33 | 2250 | 1.8 | 284 | 159 | 31 |
| L | 0.13 | 28 | 1850 | 248 | 106 | 26 | |||
| H | 115V/60Hz | 0.30 | 32 | 2250 | 284 | 159 | 31 | ||
| L | 0.26 | 27 | 1850 | 248 | 106 | 26 | |||
| HF-150 (6") | H | 230V/50Hz | 0.24 | 54 | 2550 | 2.7 | 530 | 300 | 33 |
| L | 0.21 | 48 | 1850 | 410 | 240 | 29 | |||
| H | 115V/60Hz | 0.58 | 65 | 2550 | 530 | 300 | 33 | ||
| L | 0.49 | 53 | 1850 | 410 | 240 | 29 | |||
| HF-200 (8") | H | 230V/50Hz | 0.57 | 128 | 2450 | 4.9 | 840 | 352 | 63 |
| L | 0.52 | 123 | 1950 | 690 | 274 | 55 | |||
| H | 115V/60Hz | 1.41 | 162 | 2450 | 840 | 352 | 63 | ||
| L | 1.28 | 146 | 1950 | 690 | 274 | 55 |
Hon&Guan 8Inch 840CMH Airflow Mixed Flow Inline Duct Fan for Basement

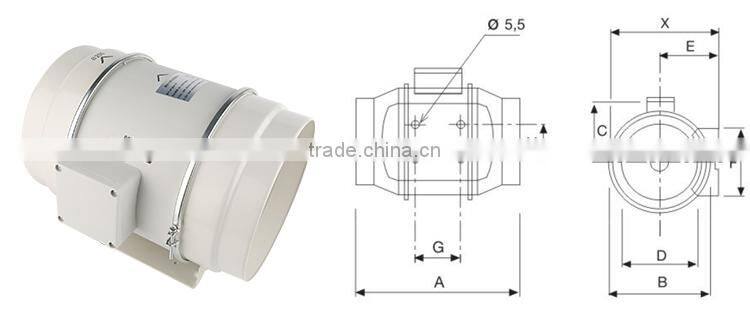

Dimensions (mm):
| Model | X | A | øB | C | øD | E | F | G | H |
| HF-100 | 188 | 303 | 176 | 115 | 97 | 100 | 90 | 80 | 60 |
| HF-125 | 188 | 258 | 176 | 115 | 123 | 100 | 90 | 80 | 60 |
| HF-150 | 212 | 320 | 200 | 127 | 147 | 112 | 130 | 80 | 60 |
| HF-200 | 232.5 | 302 | 217 | 141 | 197 | 124 | 140 | 100 | 94 |
Hon&Guan 8Inch 840CMH Airflow Mixed Flow Inline Duct Fan for Basement

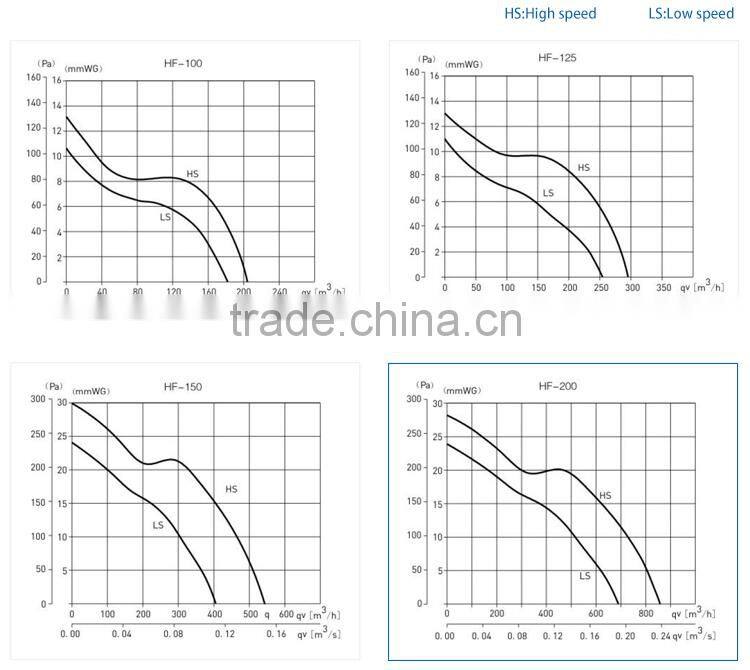

Performance Curves
qv: Air volume in m3/h and m3/s.
psf : Static pressure in mmWG and Pa.
Dry air at 20°C and 760mmHg.
Performance data in accordance with ISO 5801 and AMCA 210-99 Standards.
Hon&Guan 8Inch 840CMH Airflow Mixed Flow Inline Duct Fan for Basement

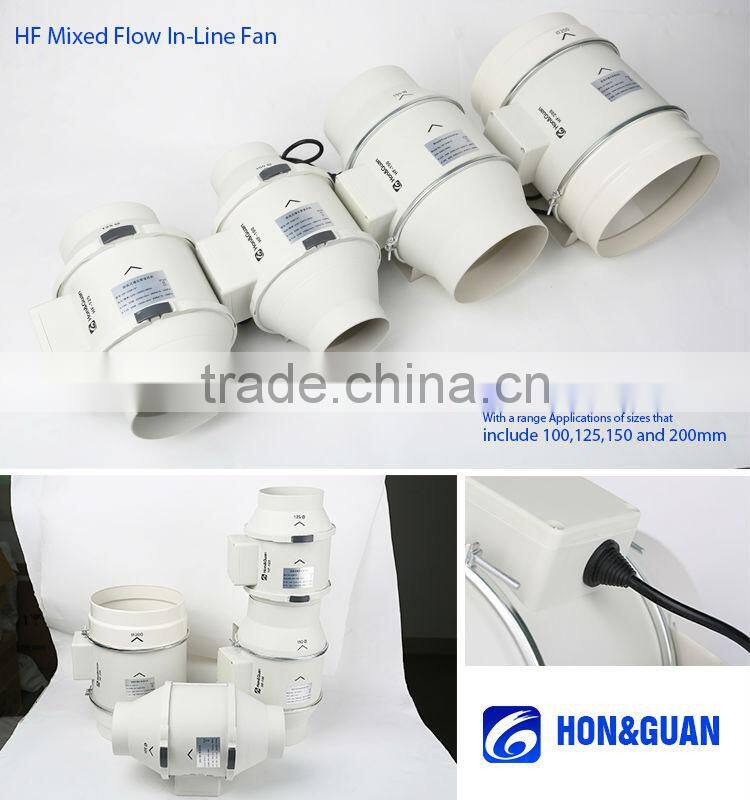

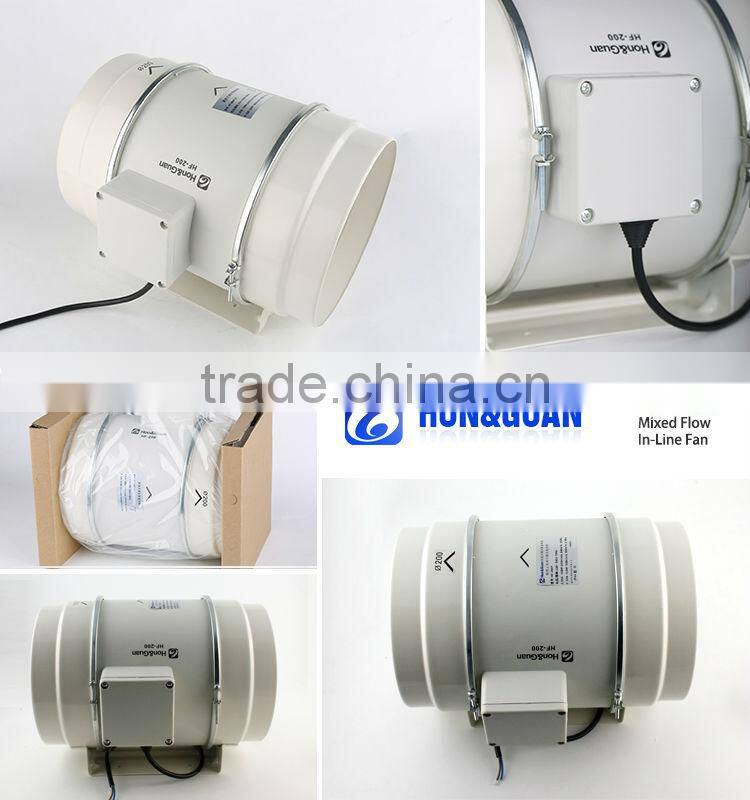

Photo Gallery (Various angles):
Hon&Guan 8Inch 840CMH Airflow Mixed Flow Inline Duct Fan for Basement
Application:
Practical examples of installation of the HF mixed flow fans range The HF fans provides a large number of solutions for small and large ventilations.
Residential-Kitchen, Domestic-Range Hood Exhaust, Commercial-Office, Industrial-Republic Restroom, School-Dining Hall, Industrial-Locker Room Health-Waiting Room, Meeting Room, Catering, Gym, Bathroom, Study Room.
Hon&Guan 8Inch 840CMH Airflow Mixed Flow Inline Duct Fan for Basement
