Home > Products > pvc electrical wire > ISO 9001 Building Wire for Sale
ISO 9001 Building Wire for Sale
- Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangxi, China | Brand Name | Qunxing | |
| Model Number | BV | Type | Insulated | |
| Application | Other, CONSTRUCTION & HOUSEHOLD | Conductor Material | Copper | |
| Conductor Type | Solid |
Product Description

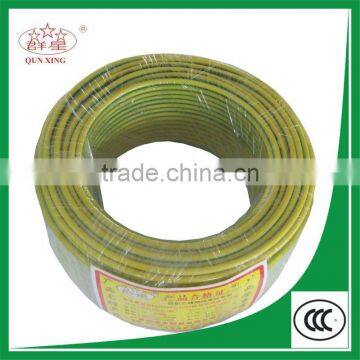

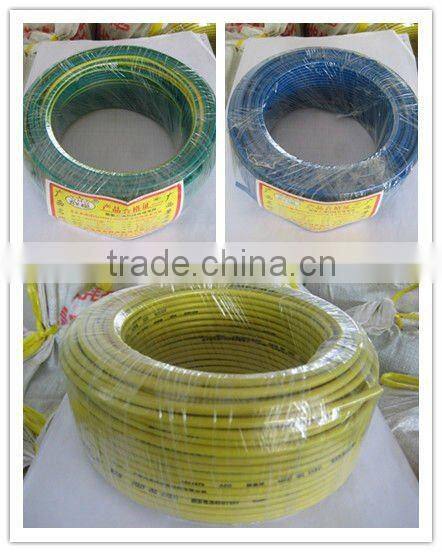

Building Wire
1.Insulated Electrical Wire
2.Material: Copper, CCA, CCS
3.Main market:Middle east,Africa
4.MOQ: 10000 meters
| PVC Insulated Wire | |||
| Conductor | Insulation | Type | Section Area mm² |
| Copper | PVC | BV | 1-300 |
| Aluminum | BLV | 2.5-300 | |
| Copper | PVC(flame retardant) | ZRBV | 1.5-300 |
| Aluminum | ZRBLV | 2.5-300 | |
| Copper | Crosslinked Insulation | YJV | 1.5-630 |
| Aluminum | YJLV | 2.5-630 | |
| Copper | PVC(refractory) | NHBV | 1.5-300 |
PVC Electrical wire:
1). Standard: BS6004, IEC227
2). Voltage: 300/500V, 450/750V
3). Application:electric equipment, household, and electrical appliance.
4). Specification (Electrial wires series include the following) :
* Solid copper (or aluminum) conductor, PVC insulated single core electrical wire
* Stranded copper conductor, PVC insulated single core electrical wire
* Solid copper conductor, PVCinsulated and PVC sheathed round multi-core electrical wire
* Solid or stranded copper conductor, PVC insulated and PVC sheathed flat electrical wire(two cores or three cores)
* Flexible copper conductor, PVC insulated single core electrical wire
* Flexible copper conductor, PVC insulated twin parallel electrical wire
* Flexible copper conductor, PVC insulated and PVC sheathed multi-core electrial wire
| Nominal section (mm 2 ) | Number/diameter of core (mm) | Maximum outer diameter (mm 2 ) | Reference weight (Kg/km) | Conductor resistance at 20°C ≤(Ω/km) | ||
| copper | aluminum | aluminum | copper | |||
| 1.5(A) | 1/1.38 | 3.3 | 20.3 | ----- | ----- | 12.1 |
| 1.5(B) | 7/0.52 | 3.5 | 21.6 | ----- | ----- | 12.1 |
| 2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.80 | 7.41 |
| 2.5(B) | 7/0.68 | 4.2 | 34.8 | ----- | ----- | 7.41 |
| 4(A) | 1/2.25 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
| 4(B) | 7/0.85 | 4.8 | 50.3 | ------ | ----- | 4.61 |
| 6(A) | 1/2.76 | 4.9 | 65 | 29 | 4.91 | 3.08 |
| 6(B) | 7/1.04 | 5.4 | 71.2 | ---- | ---- | 3.08 |
| 10 | 7/1.35 | 7.0 | 119 | 62 | 3.08 | 1.83 |
| 16 | 7/1.70 | 8.0 | 179 | 78 | 1.91 | 1.15 |
| 25 | 7/2.04 | 10.0 | 281 | 118 | 1.20 | 0.727 |
| 35 | 7/2.52 | 11.5 | 381 | 156 | 0.868 | 0.524 |
| 50 | 19/1.78 | 13.0 | 521 | 215 | 0.641 | 0.387 |
| 70 | 19/2.14 | 15.0 | 734 | 282 | 0.443 | 0.268 |
| 95 | 19/2.52 | 17.5 | 962 | 385 | 0.320 | 0.193 |
| 120 | 37/2.03 | 19.0 | 1180 | 431 | 0.253 | 0.153 |
| 150 | 37/2.25 | 21.0 | 1470 | 539 | 0.206 | 0.124 |
| 185 | 37/2.52 | 23.5 | 1810 | 666 | 0.164 | 0.0991 |
| 240 | 61/2.25 | 26.5 | 2350 | 857 | 0.125 | 0.0754 |
20170208

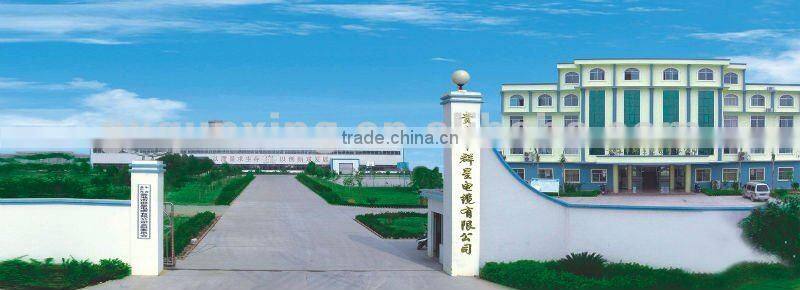

Factory
