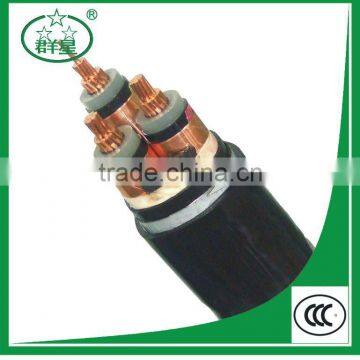

High Voltage XLPE Power Cable
- Shenzhen Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangxi, China | Brand Name | Qunxing | |
| Model Number | YJV/YJLV | Insulation Material | PVC | |
| Type | High Voltage | Application | Underground | |
| Conductor Material | Other, Copper / Aluminum | Jacket | PVC |
Product Description
Specifications
high voltage XLPE power cable1,Conductor: ALuminum,Copper
2,Insulation: XLPE
3,Jacket:PVC/PE
4,Armored:Option
high voltage XLPE power cable
Product Description
Conductor: copper (aluminum) stranded
Insulation: XLPE
Sheathed: PVC (PE)
Armored: steel tape/ steel wire /aluminum tape/ aluminum tape
Standard:
Products are produced and provided according to GB/T 12706.
Product features:
>Not drop restriction on laying
>Stable & process performance
>Strong ability to adapt to the environment
>Short circuit (the longest duration of not more than 5s)
>The highest temperature of cable does not exceed 250 °C
>The maximum normal operating temperature of conductor 70°C
>Good flexibility, easy maintenance, installation, simple structure
>AC rated voltage 0.6/1kv,50 HZ for the fixed installation , transmission and distribution lines.
No.of Core ×Cross-sectional Area (mm2) | Approx.Outer Diameter (mm) | Approx.Weight kg/km | |||||||
Non-armoured | Steel tape armoured | Steel wire armoured | YJV | YJLV | YJV22 | YJLV22 | YJV32 | YJLV32 | |
4×4 | 13 | 16 | 18 | 261 | 164 | 418 | 322 | 657 | 561 |
4×6 | 14 | 17 | 19 | 345 | 207 | 518 | 381 | 778 | 651 |
4×10 | 17 | 20 | 22 | 535 | 290 | 744 | 499 | 1064 | 819 |
4×16 | 20 | 23 | 25 | 783 | 390 | 1020 | 627 | 1532 | 1139 |
4×25 | 23 | 26 | 28 | 1167 | 550 | 1439 | 822 | 2029 | 1412 |
4×35 | 26 | 29 | 31 | 1547 | 694 | 1851 | 998 | 2502 | 1648 |
4×50 | 27 | 30 | 33 | 2090 | 912 | 2420 | 1241 | 3337 | 2158 |
4×70 | 31 | 35 | 37 | 2901 | 1214 | 3596 | 1909 | 4300 | 2613 |
4×95 | 35 | 40 | 42 | 3882 | 1570 | 4694 | 2382 | 5489 | 3177 |
4×120 | 39 | 43 | 46 | 4830 | 1927 | 5716 | 2913 | 7010 | 4108 |
4×150 | 43 | 48 | 51 | 6040 | 2395 | 7068 | 3423 | 8494 | 4848 |
4×185 | 48 | 53 | 56 | 7502 | 2961 | 8645 | 4104 | 10169 | 5628 |
4×240 | 54 | 59 | 62 | 9548 | 3695 | 10874 | 5022 | 12613 | 6761 |
4×300 | 59 | 65 | 68 | 11919 | 4554 | 13384 | 6019 | 15343 | 7979 |
4×400 | 66 | 72 | 77 | 15530 | 5859 | 171219 | 7548 | 20235 | 10564 |
