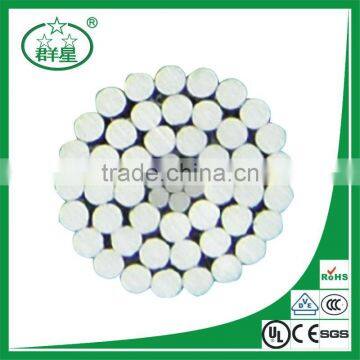

Acsr Cable High Voltage
- Shenzhen Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangxi, China | Brand Name | Qunxing | |
| Model Number | LJ/LGJ | Insulation Material | Other, NA | |
| Type | High Voltage | Application | Overhead | |
| Conductor Material | Aluminum | Jacket | Other, NA |
Product Description
acsr cable high voltage
Application:
To be used in the overhead power distribution system and it is one of the main products to form electrified wire network.
Standards:
GB 1179 " Circular Central Stranded Overhead Cable".
Conductor:
Single core
Temperature Rating:
0 to +70°C
Minimum Bending Radius:
9 x overall diameter
Model:
All Aluminum Conductor (AAC)
Aluminum Conductor Steel Reinforced (ACSR)
All Aluminum Alloy Conductor (AAAC)
All Steel Stranded Conductor (ASSC)
All Aluminum Conductor Alloy Reinforced (AACAR)
| Nominal Area (mm2) | Stranding | Calculated Area | Approx. | Approx.. | Calculated | Calculated | Code Name |
| Wire No. | (mm2) | Overall | Weight | Min.Breaking | D C Resistance | ||
| and Dia. | Dia. | (kg/km) | Load(KN) | at 20°C(Ω /km) | |||
| (No./mm) | (Mm) | ||||||
| 22 | 7/2.06 | 23.33 | 6.18 | 63.88 | 3.99 | 1.227 | Midge |
| 25 | 7/2.21 | 26.85 | 6.63 | 73.53 | 4.59 | 1.066 | Gnat |
| 35 | 7/2.59 | 36.88 | 7.77 | 101 | 6.02 | 0.7762 | Mosquito |
| 50 | 7/3.10 | 52.83 | 9.3 | 144.7 | 8.28 | 0.5419 | Ant |
| 60 | 7/3.40 | 63.55 | 10.2 | 174 | 9.9 | 0.4505 | Fly |
| 75 | 7/3.78 | 78.54 | 11.34 | 215.1 | 11.97 | 0.3645 | Earwig |
| 100 | 7/4.39 | 106 | 13.17 | 290.2 | 16 | 0.2702 | Wasp |
| 150 | 19/3.25 | 157.6 | 16.25 | 433.6 | 25.7 | 0.1825 | Hornet |
| 200 | 19/3.78 | 213.2 | 18.9 | 586.6 | 32.4 | 0.1349 | Chafer |
| 250 | 19/4.22 | 265.7 | 21.1 | 731.2 | 40.4 | 0.1083 | Cockroach |
| 300 | 19/4.65 | 322.7 | 23.25 | 887.7 | 48.75 | 0.08916 | Butterfly |
| 350 | 37/3.78 | 327.6 | 25.06 | 1021 | 57.29 | 0.07739 | Drone |
| 400 | 37/3.78 | 415.2 | 26.46 | 1145 | 63.1 | 0.06944 | Centipede |
| 450 | 37/4.09 | 486.2 | 28.63 | 1341 | 73.82 | 0.0593 | Maybug |
| 500 | 37/4.27 | 529.8 | 27.89 | 1461 | 80.14 | 0.05442 | Scorpion |
| 600 | 37/4.65 | 628.3 | 32.55 | 1732 | 94.91 | 0.0459 | Cicada |
