Underfloor Flat Ribbon Heating Cable for Russia
- Shenzhen Urumqi Dalian Ningbo and Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Guangxi, China | Brand Name | OGILLT | |
| Type | Floor Heating Parts | Floor Heating Part Type | Floor Heating Cables |
Product Description
Specifications
1.Underfloor Flat Ribbon Heating Cable for Russia2.Patent products
3.Only 2mm thickness
4.Full metal shield layer
Underfloor Flat Ribbon Heating Cable for Russia

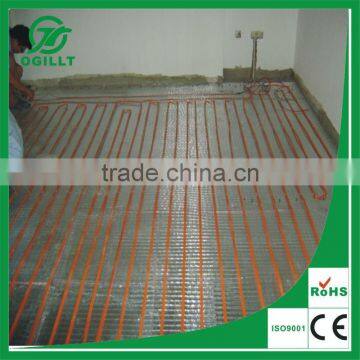

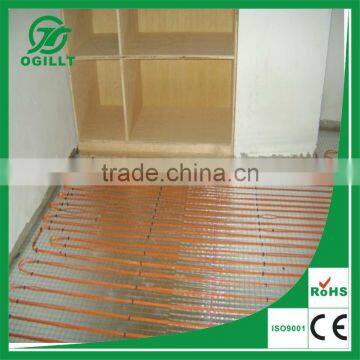

OGILLT, the “Thin Flat Heating Cable” awarded “Utility Model”& “Invention” Patents, and passed many kinds’ tests at our China and abroad. It could be used in floor and soil heating, pipeline warm keeping, snow melting and de-icing, Cultivation and breeding and so on.
Compared with the traditional round heating cable, the flat heating cable offers a variety of distinct advantages, including:
Energy Efficient: Super thin flat design, larger heating and transferring areas, saving more than 10% to ordinary heating cables.
Safe & Reliable: Alloy metal conductor, full metal shield layer and tinned copper wire; almost “0”radition for human.
Less Area: only 2mm thickness, suit to most place, especially limited on the height.
Product Features:
1. Construction:
Outer Sheath: Poly Vinyl Chloride (PVC)
Grounding line: Tinned copper wire
Shielding layer: Full metal shield layer
Conductor: Alloy resistance
Insulation: Crossing linking polyethylene/XLPE, Poly Vinyl Chloride (PVC)
Connector: External
2. Dimensions:
Cable thickness: 2mm
3. Parameter:
Power Supply Voltage: 220V (can be customized/custom-made)
Linear power: 17W/m
4. More:
length of cold wire: 2.5m
Max work temperature: 70°C
20150103
Flat Heating Cable list:
Specification | Power(W/r) | Length(M/r) | Resistance(Ω/r) |
OGILLT-BX-300/17 | 300 | 17.6 | 161.3 |
OGILLT-BX-400/17 | 400 | 23.5 | 121.0 |
OGILLT-BX-500/17 | 500 | 29.4 | 96.8 |
This is Kien from Qunxing, Please contact us for more specifications!
