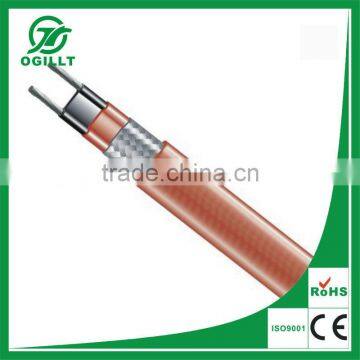

Self Regulating Heat Trace Cable
- shenzhen/ningbo/shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangxi, China | Brand Name | OGILLT | |
| Model Number | Ogillt | Conductor Material | Copper | |
| Insulation Material | Other, modified polyolefin | Jacket | Other, modified polyolefin | |
| Number of Conductors | 2*7 | Application | Anti-frezzing |
Product Description
Specifications
self regulating heat trace cable1.Frost Protection
2.Temp Maintenance
3.Heating of Tanks and Vessels
4.In Pipe Heating
self regulating heat trace cable
Specification
Maximum maintain temperature 65°C
Maximum exposure temperature 85°C
Maximum surface temperature 85°C
Minimum installation temperature -40°C
Maximum Circuit Length 100m
Minimum bend radius at 20°C: 25.4 mm
Minimum bend radius at -30°C: 35 mm
Supply Voltage
110v 220-230v
Grey:flame retardant outer jacket
Black:UV resistant outer jacket
Working Principle
When power supply is connected to the cable the ends of two conductors can not be connected, the current flows from one conductor to another by way of parallel-connected PTC materials to form a circuit. Electricity can raise the temperature in the materials, with that its resistance increases.When the temperature rises to a certain value and the resistance is so high and almost interdict the current, its temperature stops rise. In the meantime it transfers heat to the low temp part through the sheath.
Application:
The products are mainly used in petroleum, chemical, steel, power and other industrial enterprises and instrumentation pipe storage containers with thermal insulation box, antifreeze, anticoagulant, and fire hydrant ice insulation.
