Home > Products > Dredger > customized cutter suction dredger for Canel and River

customized cutter suction dredger for Canel and River

FOB Price

USD $70,000 - $2,900,000 / Set

1 Set(Min.Order)

Port Qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Cutter Suction Dredger
Power Type	Diesel	Dredging Depth	7 m
Draught	3 inch	Place of Origin	Shandong, China
Brand Name	Shandong Shuiwang	Model Number	SW-CSD150,SW-CSD250,SW-CSD300,SW-CSD400,SW-CSD750
Dimension(LWH)	52.5ft18.4ft5.25ft	Weight	180 tons
Certification	ISO9001/ZC	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

China customized suction dredge

Shandong Shuiwang Environmental Protection Equipment Co., Ltd.are specialized in high-standard sand washing machinery, amphibious excavator,submersible sand pump,diesel and gas generator and other mechanical equipment.

We have a 17000 square meters production base,20 technical staff ,5 senior.The company have good relationship with Guangzhou university,Guangxi metallurgy institute and other university or institute ,have passed ISO9001.

With the principal “capability will tell,credibility will win”,Shandong Shuiwang Envirommental Protection Equipment Co.,Ltd strives to provide best sevice to customers,more and more qualified products to customers.

There is six types of Cutter suction dredger in Shandong Shuiwang Environmental Protection Equipment Co., Ltd.

As the table:

Technical Parameters
Types	SW-CSD150	SW-CSD250	SW-CSD300	SW-CSD400	SW-CSD500	SW-CSD750
Productivity Flow(m³/h)	150 m³/h	250 m³/h	300 m³/h	400 m³/h	500 m³/h	750m³/h
Water flow rate (m³/h)	800 m³/h	1200 m³/h	2000 m³/h	2800 m³/h	3500 m³/h	5000m³/h
Dredging depth(m)	9 m	10 m	14 m	15 m	16 m	18 m
Overall length(m)	21 m	25 m	35 m	36 m	40 m	44 m
Hull length(m)	14 m	18 m	25 m	26 m	28 m	35 m
Hull height(m)	1.6 m	1.6 m	1.8 m	1.8 m	2.0 m	2.8 m
Hull width(m)	4.7 m	5.2 m	6.0 m	6.0 m	7.8 m	8.8 m
Main engine power(kw)	330 Kw	450 Kw	720 Kw	900 Kw	1000 Kw	1200 Kw
Discharge distance	1000m	1200m	1500m	1500m	1500m	3000m
Cutter head diameter(m)	1.0m	1.2m	1.5m	1.5m	1.7m	1.8m
Suction /discharge pipe diameter(mm)	250/200 mm	300/250 mm	350/300 mm	450/350 mm	600/450 mm	650/500 mm
Operation system	PLC system , mechanical operation system	PLC system , mechanical operation system	PLC system, mechanical operation system	PLC system, mechanical operation system	PLC system, mechanical operation system	PLC system, mechanical operation system

Overseas client : Products discussion:

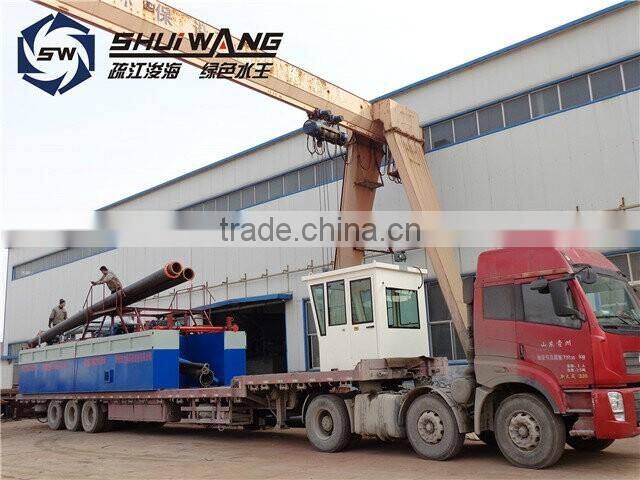

Products transportation:

we can supply what you want.
