Price of Mini Lagoon Sharp Sand Pumping Dredge Machinery

A. MODELS & SPECIFICATIONS

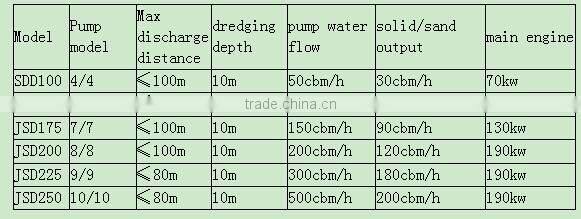

We have two series. If you want to discharge less than 100m distance, please check the blow list:

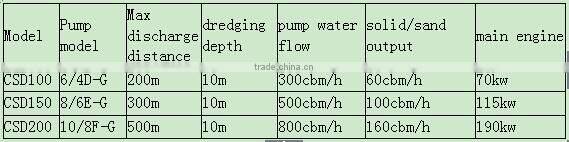

If you want to discharge more than 100m by discharge pipe, please check the below list:

B. DESCRIPTION & ABSTRACT

Discharge dredger is also called small sand suction dredger, mini sand jet suction dredger/vessel, small sand dredging machine, associated equipment of auto sand suction hopper transporter. The sand suction transporter unloads sand near to the shore, and then discharge dredger will suck the sand to the designated place.

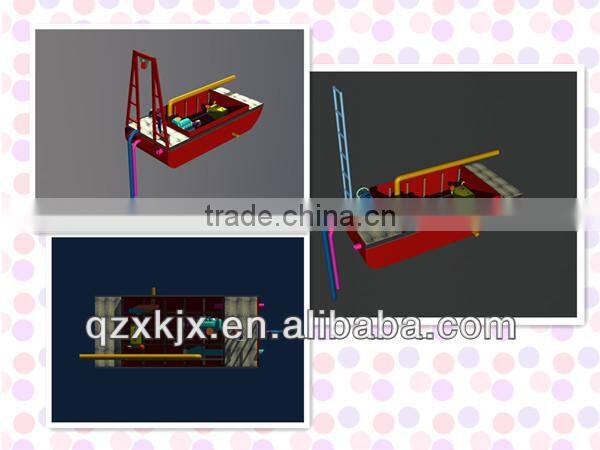

The discharge dredger consists of pontoons, discharge pipe system, water jet system, pumping sand system, winch system, and self-propelled system, etc.

Discharge system includes power, sand discharge pipe, sand pump, etc. After the sand slurry is sucked, it runs along the sand pipe and discharged to the sand store place through the long discharge pipe.

Sand suction system includes water jet system and sand pumping system. Water jet system includes water jet pump, power, water inlet pipe, outlet pipe and water gun, etc. Pumping sand system includes sand pump, power, suction hose pipe, sucker, etc. At the end of sucker or ladder, there is steel net to prevent stones and rubbish to enter into the pump and pipe.

Winch system includes winch, power, gantry frame, pulley, etc. The winch is drived by the motor of water jet pump. The winch has two operating handles. The operator can drive it to lift and drop the sucker to adjust the dredging depth.

Self-propelled system includes propeller and power, the operator can drive the operating handle to move forward or backward. Usually few people installs this system, but if you want, we can install it.

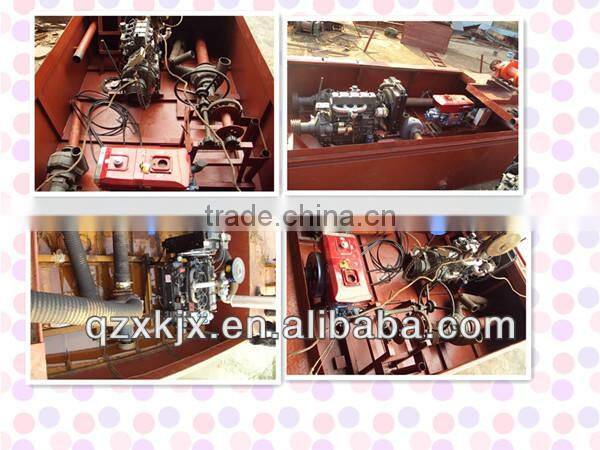

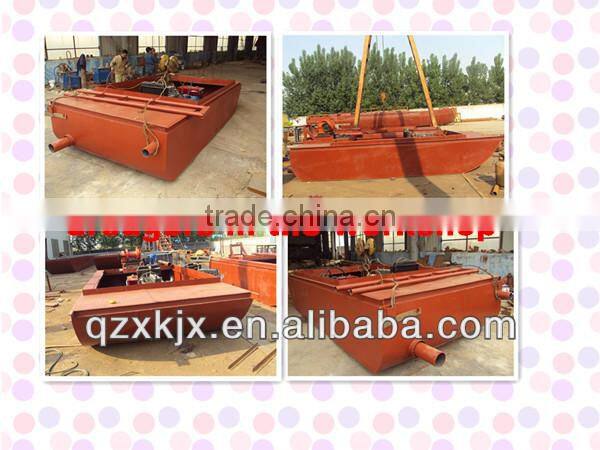

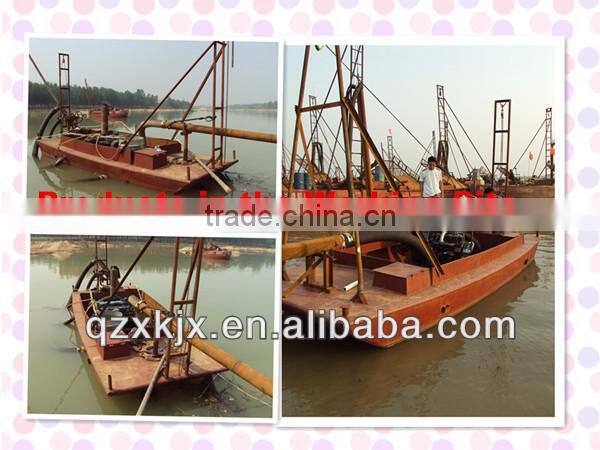

The discharge dredger has three or one pontoons, one pump pontoon and two side pontoons. All the machines are installed in the middle pontoon. The small one just has one pontoon, which can be loaded in one 20ft container.

C. APPLICATIONS & USE

PURPOSE: The discharge dredger is mainly used for dredging sand as a part of the auto sand suction hopper dredger/transporter or small sand carrier/barge/boat/transporter near to the shore .

Working conditions: Max. Temperature40℃; Min. Temperature -10℃; Max. Water Temperature32℃; Relative Humidity less than 70%.

D. WORKING PRINCIPLE

Its working principle is, the high-pressure water jet pump produces high pressure and shoot the sediment through high-pressure water gun, making the sediment into floating state; then sand pump sucks sand and discharges it to the destination by discharge pipe.

E. FEATURES & ADVANTAGES

(1) rapidly assembly and dismantling

(2) Low price, small investment, quick effect.

(3)Long distance discharge, can discharge up to the shore .

(4) Simple structure, easy to maintain.

(5) Simple operation, easy to learn.

(6) Easy maintenance, less wearing parts .

(7) Large production capacity, according to different customer requirements can achieve different output.

(8) One man operation

(9)Can be transported by road, sea, and rail

(10)Spare parts and floating pipe available

(11)Efficient fuel consumption.

(12)Diesel engines can be decided when ordering

(13)Many service tools and free spare parts

1. cutter suction dredger

hydraulic or not, cutter head, or spiral cutter, for sand, dredging, gold panning, etc.

2. jet suction dredger

with sand pump or slurry pump; for sand dredging

3. auto sand suction hopper dredger/transporter

from 20cubic meters to 100cubic meters

4. discharge dreger

with sand pump or slurry pump; for sand dredging

5. bucket chain dredger

for sand dredging, gold mining, or iron mining

6. gold suction dredger

with gold chute, or jigger or centrifugal concentrator

7. gold bucket chain dredger

with gold chute, or jigger or centrifugal concentrator

8. gold panning machine

with gold chute, or jigger or centrifugal concentrator

9. sand screeing machine

10. sand washing machine

11. small sand carrier/transporter/barge

with belt conveyor or open-door-cabin

12. sand making machine with stone crusher

13. iron mining machine

14. iron mining dredger

15. coal separating machine

16. sand drilling suction dredger

17. discharge pipe

18. sand pump and slurry pump

19. gold grass and gold chute and concentrator

20. boat propeller and winches

Qingzhou Xianke Mechanical Device Co., Ltd.

1. Located in Huanglou Town, Qingzhou, Weifang City, Shandong Provence

2. Established in 2010, a professional manufacturer and exporter of dredgers

3. One building for office staffs

well-equipped, clean and tidy offices, and available facilities,

the office consists of Design Department, Sales Department, Logistics Department

4. Four workshops

Occupies over 1500square maters

Skilled workers

Advanced equipment

5. Near to Qingdao Port

Based on the honest, mutual benefit and development, we warmlywelcome new and old customersto visit our company and negotiate business.

1. Delivery

Usually we have no finished dredgers or machines in store. But we can build it as soon as possible. Usually we will build it in 10-60days. The bigger model, the more time. If you want to know the accurate time of delivery, please reply to me.

2. Payment terms

cutter suction dredger: 30% deposit, after pontoons finished, 30%-50%, balance before loading.

Theothers: 30% deposit and before loading, the balance.

We just can accept T/T. If you want to pay by L/C, please ask us. We will check if we can accept. Thank you.

1. Packing

All the dredgers and machines have no package. We load all the goods in the container without package.

If you just order some small parts or engines or machines, we should put the goods inside the woodbox.

2. Loading

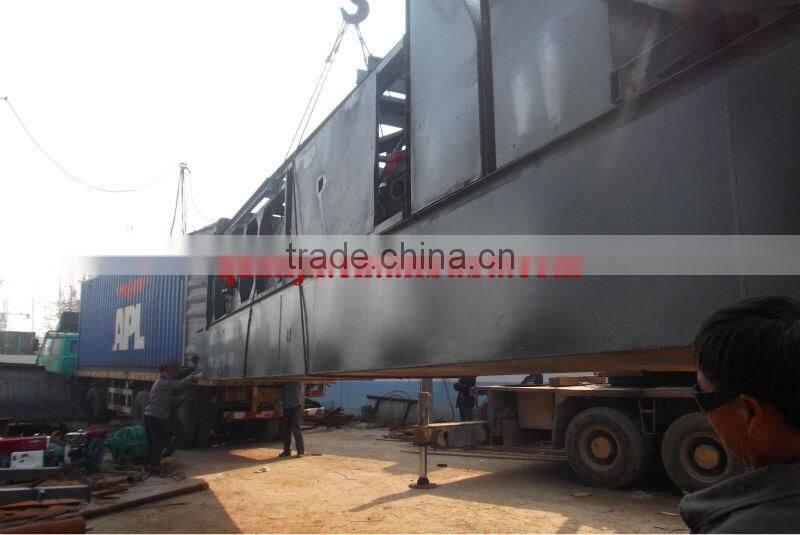

We would put all the small parts inside the pontoons or boxes. we would depart the dredgers into several parts, so we can put it in the container. If we can't put it in the container, we have to order the bulk cargo.

3. Shipping

We will choose the cheapest and fastest ship for the customer. if all the goods can put in the container, we won't order the bulk cargo ship, if it can't, we have to order the bulk cargo ship, if you just order several small machines, and it can't be full of one container, we will send it by LCL (less than container load).

1. Installation

After the goods arrives at the dredger or machine working site, we will send our engineers to install it for the customer. but we don't afford the installation expense, for example, freight, visa, foods, accommodation, labors, installation tools.

2. Training

If your workers need to be trained, we also can send the professional operators to train them. but we won't afford any cost of training.

3. Professional workers

If you need the professional workers, we can look for them for you in China, but we won't afford any expense and we should get some commission.

4. spare parts

When you order the goods, you should order some spare parts at the same time and load in containers, if some part is broken, you can change at once.

5. maintainance service

We have no oversea department to supply service. If the dredger or machine can't work, we can send engineers to maintain for you, but you should afford all the maintainance expense.

If what you need is not in the models list, please reply to my email, I will check if we can help you to build it.

If you have special requirements, please tell me.

If you can’t be sure which model you need, please tell me as follows:

1. Where will it work? in the river? in the lake? in the sea? Are there big waves? How deep is the water?

2. How deep does it dredge? (just for dredger)

3. How long does it discharge?

4. How many cubic meters of solid/sand do you need in one hour?

5. How about the sediment? What does the sediment consist of?  (just for dredger)

6. Do you use Cummins engine or China engine?

7. How many meters of discharge pipe?do you need? How many meters on the water?  (just for dredger)
