Single Layer Plastic Film Multi-span Greenhouse

Specifications

Multi-span single layer film Greenhouse

Advantage;

Full range and customized of product

Ideal price-quality ratio

Satisfactory service from “A” to ”Z”

True quality guarantee

I)Venlo Glass greenhouse

-Commercial Greenhouses - agricultural greenhouse for flower/vegetable

1.Feature:

Modern appearance, stable structure, high intensity, light transmission over 90%, special suitable for those places with less sunshine.

 2.Structural Characteristics:

♦ Venlo structure,

♦  Well sealed aluminum gutter,

♦ Cover: float or tempered glass, fitted by special aluminum profile together with sealed band

♦  Span: 8M, 9.6M, 12M,

♦  Section: 4M, 4.5M, 5M

♦  Wind load: 0.5 KN/M2, Snow load: 0.4KN/M2, Max Tonnage:150/M3/H

♦ Ventilation: Single or double roof vents, controlled by the rack and pinion system

♦ Shading, heating, cooling, irrigation, hydroponics, and climate control systems can be installed if requested

Polycarbonate greenhouse Venlo

-Commercial Greenhouses - agricultural greenhouse for flower/vegetable

1.Feature:

Good heat retention, high intensity, easy assembly, energy saving, anti dew, strong impact resistance and long service life, etc

2.Structural Characteristics:

 ♦ Venlo structure or A shape structure

 ♦ span: 8m/9.6M/12M, bay size: 3.2M/ 4M, section :4M/ 4.5M;

 Gutter: 3-5.5M

♦ The frame works structure is assembled by prefabricated parts. All main parts are hot dipping galvanized after processing with zinc cover 275G/M2 in order to avoid any rust;

 ♦ Cover: 8mm polycarbonate panel, by special aluminum profiles together with sealed band

 ♦ Ventilation: single roof vents or double roof vents, controlled by rack and pinion system

 ♦ Aluminum sliding doors;

Multi span plastic film greenhouse

--European structure, multi span commercial film greenhouse for agriculture

1.Feature:

Modern appearance, special designing structure, high intensity, easy assembly, single film is suitable for tropic area while air-inflated film is suitable for frigid area.

2.Structural Characteristics:

♦ Gothic roof structure, span: 8M/9.6M section : 4M /5M;

♦ Gutter height:3-5M, top height:5.5-7.5M.

♦ The frame works structure is assembled by prefabricated parts. All main parts are hot dipping galvanized after processing with zinc cover 275G/M2 in order to avoid any rust.;

♦ Covering is 3 layers extruding film, the outer layer has the function of dustproof and the inner layer anti-dripping; UV block treatment

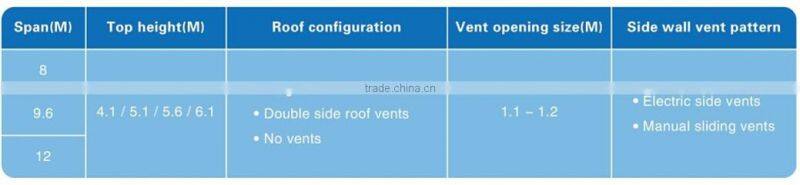

♦ Roof configuration: following options are available based on customers' needs:

Plastic film greenhouse

--economical multi span film greenhouse, no foundation needed, satisfy basic growing needs

 1. Features:

Simple structure, easy assembly, low cost, it's the best choice for planting by big area.

2.Structural Characteristics :

♦ Gothic structure,

♦ span: 6M/8M/9M, arches space: catering for different climate conditions;

♦ Top height: 3.5-4M.

♦ Covering is 3 layers extruding film, the outer layer has the function of dustproof and the inner layer anti-dripping; UV block treatment

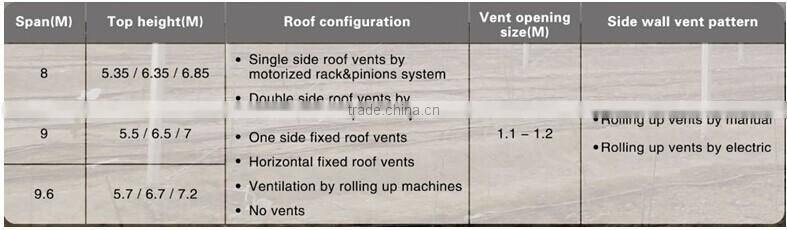

♦ Roof configuration: following options are available based on different climate conditions:

-One side fixed roof vents;

-Double side roof vents by film rolling up machine.

-No vents

♦ Side ventilation(optional): by film rolling up machines or fixed vents covered by mesh.

Plastic film greenhouse

--single tunnel plastic greenhouse/ low cost film greenhouse/ plastic tunnel house

1.Features:

Simple structure, easy assembly, low cost, it is the best choice for planting by big area .

2.Structural Characteristics:

♦  Gothic structure, span: 6-9M, arches space: catering for different climate conditions;

♦ Top height: 3.5-4M;

♦ The frame works structure is assembled by prefabricated parts. All main parts are hot dipping galvanized after processing with zinc cover 275G/M2;

♦ Covering is 3 layers extruding film, the outer layer has the function of dustproof and the inner layer anti-dripping; UV block treatment;

♦ Roof configuration/ventilation: following options are available based on different climate conditions:

--One side fixed roof vents

--Double side roof vents by film rolling up machine

--No vents

♦ Side ventilation(optional): by film rolling up machine or no vents.

Please contact saleman  if you want more info
