Home > Products > 15. Inline duct fan/Ventiation clip fan > Hydroponics Inline Extractor Fan/centrifugal Fan
Hydroponics Inline Extractor Fan/centrifugal Fan
- NINGBO/SHANGHAI
- Money Gram Credit Card
You May Like
Product Details
| Electric Current Type | DC | Blade Material | Plastic | |
| Mounting | Duct Fan | Place of Origin | Zhejiang, China | |
| Brand Name | TIDESTAR | Model Number | TD-DA | |
| Power | 65-380W | Voltage | 120/230V | |
| Air Volume | 290~1900m³/h | Certification | CE |
Product Description

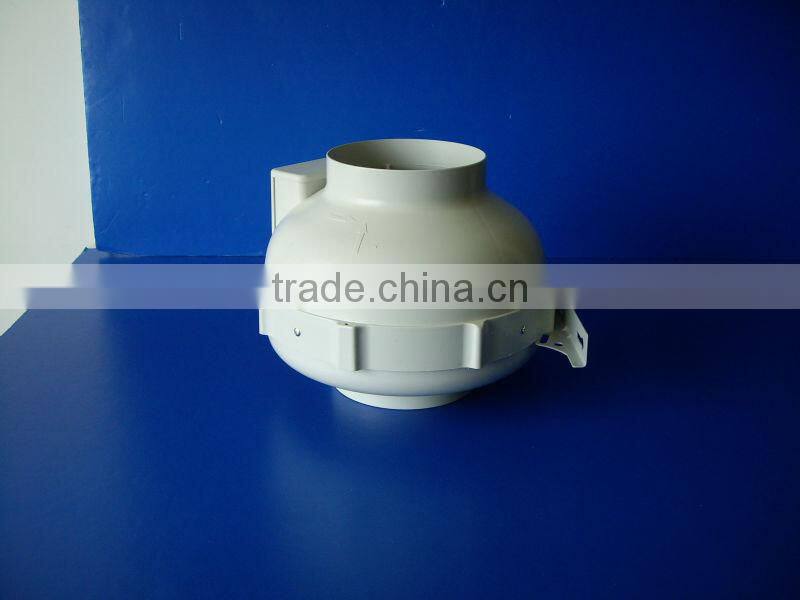

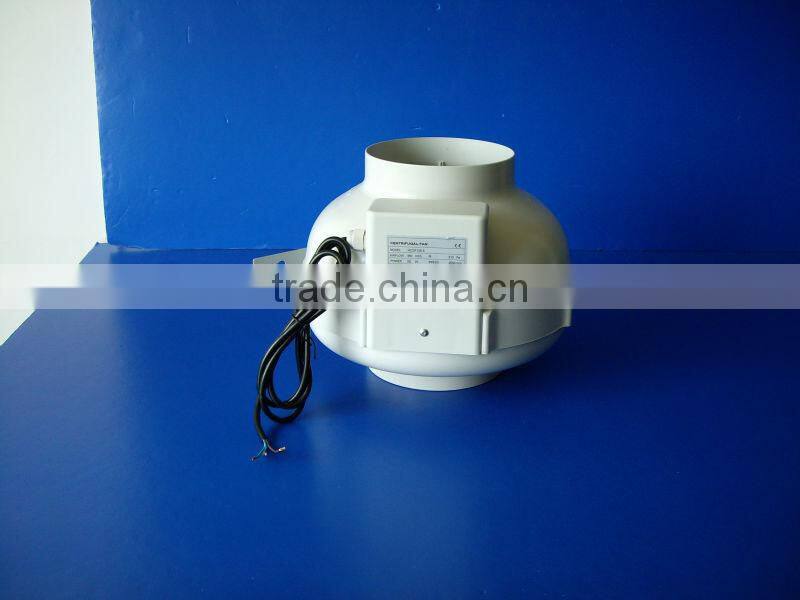

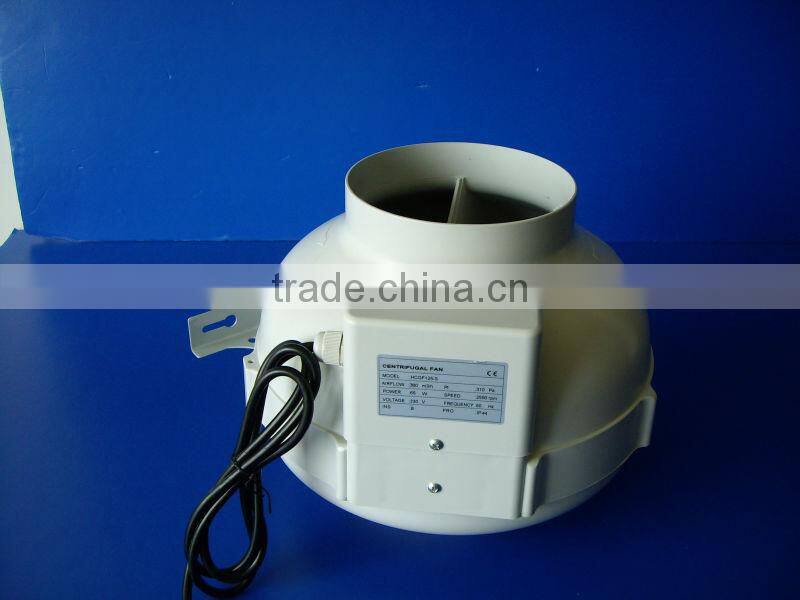

Hydroponics Inline extractor fan/centrifugal fan
In line Duct Fan
1.Noiseless
2.High quality molded impeller
3.Thermally protected AC motor
4.Includes mounting brackets
DETAILS
Colour available: Black, White
It is used to transmit and strengthen the air flow inside a network of ventilation systems.
The Plastic Inline Duct Fan is equipped with ball bearing and visible propeller with a protective grate. The installations can be mounted horizontally and vertically.
The propeller blades are directed backwards, ensuring higher pressure and work effciency.
The casing is made from Plastic (ABS) and the fan sat included fixings for a secure installation.
TECHNICAL PARAMETER
Model | Voltage | Frequency | Power | Rotate | Air Flow | Pressure |
(HCEU-D) | (V ) | (HZ) | (W) | (R/Min) | (M3/H) | (Pa) |
Φ100mm | 120 / 230 | 60 / 50 | 69 | 2590 | 175 / 350 | 360 |
Φ125mm | 120 / 230 | 60 / 50 | 71 | 2535 | 220 / 440 | 390 |
Φ150mm | 120 / 230 | 60 / 50 | 100 | 2350 | 305 / 610 | 430 |
Φ160mm | 120 / 230 | 60 / 50 | 130 | 2580 | 350 / 700 | 475 |
Φ200mm | 120 / 230 | 60 / 50 | 190 | 2150 | 525 / 1050 | 620 |
Φ250mm | 120 / 230 | 60 / 50 | 195 | 2250 | 600 / 1200 | 635 |
Φ305mm | 120 / 230 | 60 / 50 | 245 | 2450 | 925 / 1850 | 690 |
Φ315mm | 120 / 230 | 60 / 50 | 250 | 2520 | 950 / 1900 | 720 |
Contact Us
- Yongkang Tengrun Electronics Co., Ltd.
- Contact nameJeff ding Chat Now
- Phone86-579-87542099
- Address3/F, No. 1, Bldg. 30, Gaozhen Road, Gaozhen Village, Dongcheng Street
