2013 hot sales GSM sms controller S140 Temperatures, water leakage applications,Tanks, Oil or Water levels monitoring

Standard Package list:
GSM Controller X 1
Power supply adapter X 1 (12V 1.5A)
CD (Pc programmer tool) X 1
GSM Antenna X 1
Gross Weight: 1.0Kg
15pcs per carton

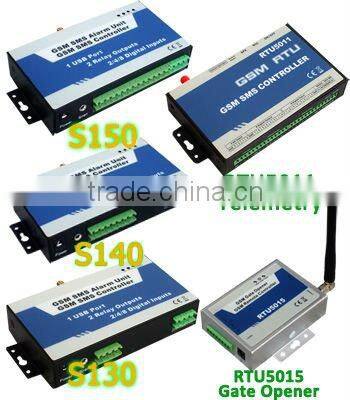

King Pigeon S130 S140 S150 GSM Wireless Remote Switch,

SMS Remote Controller, Home Automation

Turn Relay ON OFF by Mobile Phone/SMS Text Command

 itch, GSM controller, Automation,Remote Controller S130/S140/S150 work as a wireless remote switch or Automation by GSM network.Also called GSM Remote Controller in industry area.

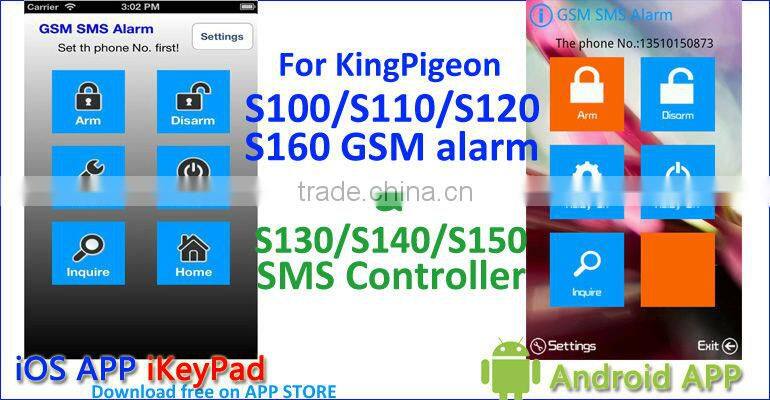

ios APP iKeypad download free on APP STORE!

Android App Available Now!!!

Make Control Easier!

ASK US FOR MORE DETAILS!

1.Wireless remote controller work by GSM Quad-band Network

2.Lighting/Pump/Generator/Motor/Valve Remote switch controller

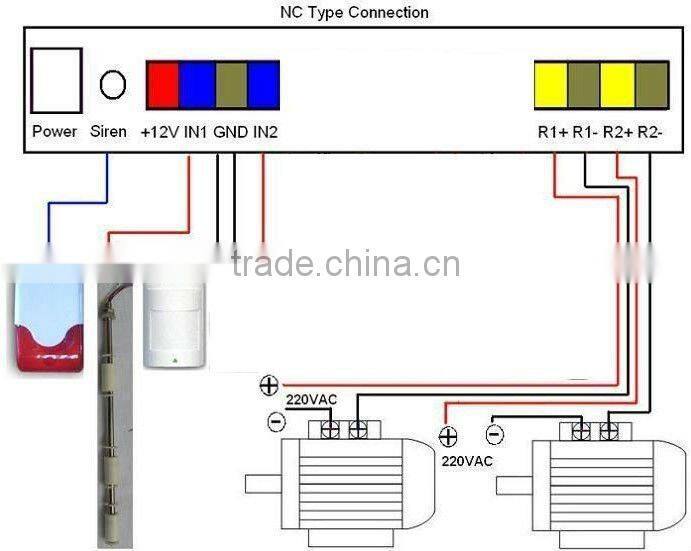

3.Wireless GSM Switch 2/4/8 NC/NO Dry Contact Inputs & 2 Relay Outputs

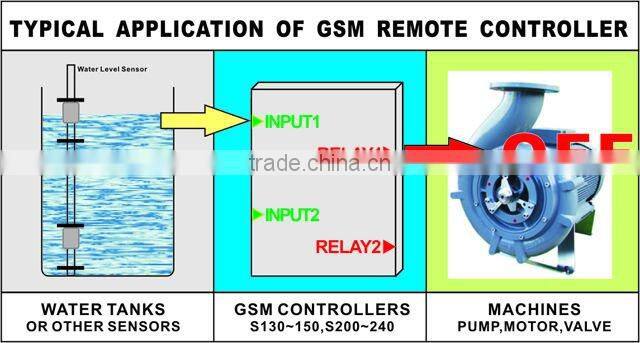

>>>>SMS Controller Alarm, S130 S140 S150 used for:

>>>GSM Water leak alarm,

>>>GSM Humidity alarm;

>>>GSM Automation System;

>>>Power Station,Transformer,Regulator,Stabilizer monitoring and control;

>>>Vending machine controller;

>>>Pump,Motor,Tank,Generators monitoring and switch control.

>>>>>>GSM SMS Controller & Alarm Features:

>>> 1 relay output (240VAC/3A) can be switched ON/OFF by sending a SMS text;

>>> 1 relay output (240VAC/3A) can be switch on 0-120mins if any inputs triggered;

>>> 2/4/8 Alarm logic inputs, NC or NO and EOL is optional;

>>> 3 SMS Alert numbers and 5 auto-dial phone numbers can accept to the alarm message;

>>> Two-way voice communication* by external microphone and speaker;

>>> Supports armed, disarmed, inquiry status, switch ON or OFF relay output by SMS Commands;

>>> Password protection, prevents unauthorized user;

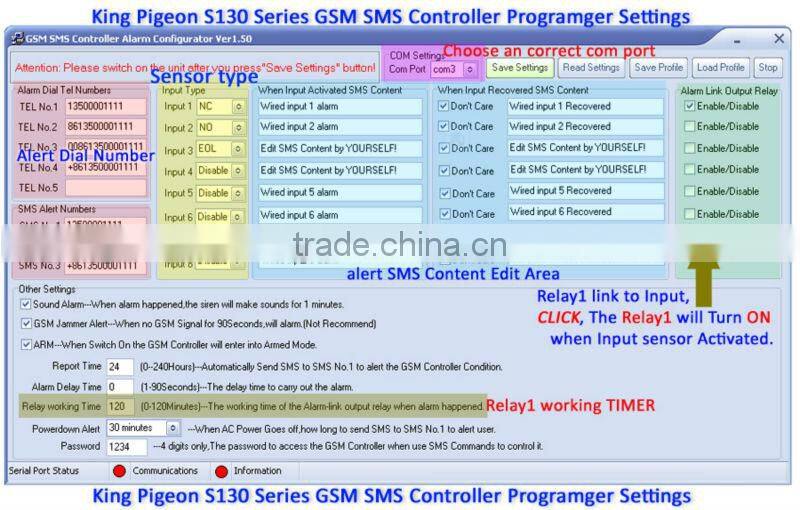

>>> Configuration from PC Programmer software via USB port;

>>> Time stamped alarm messages;

>>> Backup rechargeable battery inside, runtime more than 24hours;

 >>>>>>The GSM SMS Controller & Alarm suitable for:

1.Security Alarm System applications;

2.Supervision and monitoring alarm systems;

3.Automatic monitoring system;

4.Vending Machines security protection;

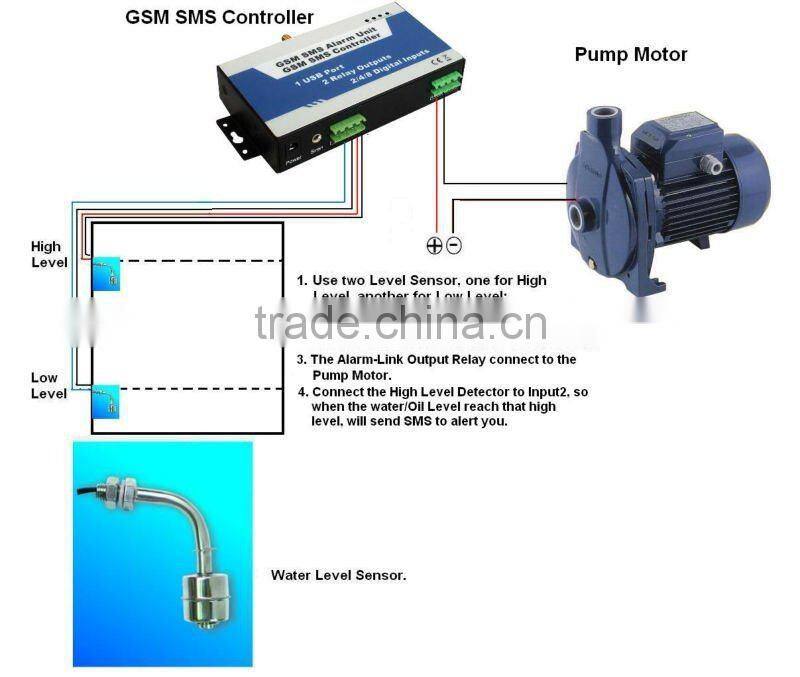

5.Pumping Stations, Tanks, Oil or Water levels;

6.Buildings and Real Estate;

7.Weather Stations;

8.River Monitoring and Flood Control;

9.Oil and gas pipelines;

10.Corrosion protection

11.Temperatures, water leakage applications;

12.Wellheads, boat, vehicle;

13.Energy saving, street lights control system;

14.Valve controls;

15.Transformer stations;

16.Unmanned machine rooms;

17.Control room application;

18.Automation System, M2M;

19.GSM Access Control System, GSM Gate Opener, etc.

>>>>>>Specifications:

GSM Frequency: Default 900/1800/1900MHz, Optional 850/1900/1800/1900MHz

Power adapter: DC 12V/1.5A

Power Current: Max:500mA   Type :50mA

SIM Card     :    Supporting 3V SIM Card

GSM Antenna : 50 Ω SMA Antenna interface,

Serial       : USB Port

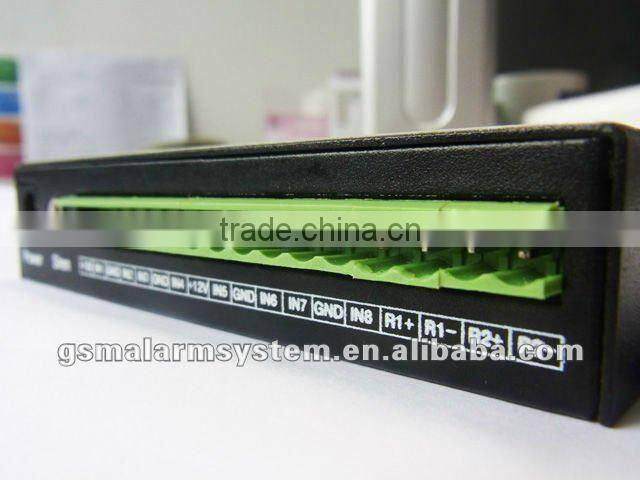

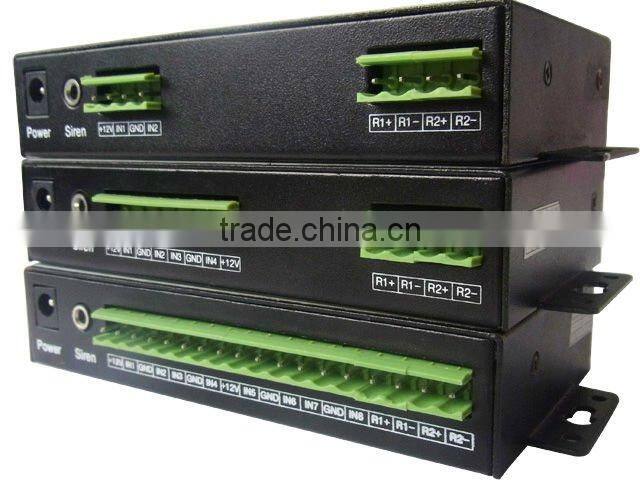

Input Type : UP TO 8, dry contact, NC,NO,EOL

                    S130: 2

                    S140: 4

                    S150: 8

Output Type : 2 Relay,dry contact, 240VAC/3A.

Dimension   : LxWxH 153x86x28mm

Backup-Power :     3.7V 1200MAh LI-ION battery

Temperature :    -20°C ~ +60 °C

Humidity     :     Relative humidity 20~95% (condensation free)

Net Weight   : 320g

** Electrical Characteristics /25°C

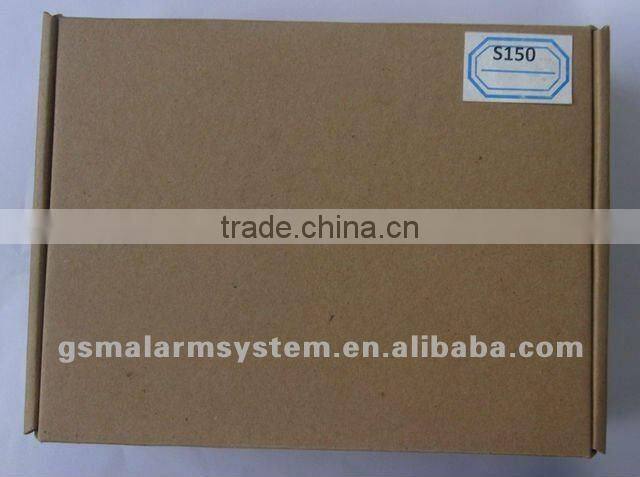

>>>>>>Standard Package list:

>>GSM SMS Controller * 1

>>AC/DC Power supply adapter * 1 (12V 1.5A),UK/EU/USA/AU type plug are available

>>CD (Pc programmer tool) * 1

>>GSM Antenna * 1

>>Package Size:W190*D140*H60mm

>>Gross Weight: 1.0Kg

15pcs per carton

>>Optional Accessories:

Water Overflow Level Sensor,
Oil Overflow Level Sensor,
Water Leak Sensor,
Temperature Sensor,
Door Sensor,
PIR Motion detector,
Smoke detector,
Gas Leak detector,
Glass Break detector,
Shock detector,
Power failure detector, etc.

>>>>>>>Why KING PIGEON?

King Pigeon is a professional GSM Wireless Alarm, GSM Home Alarm System, GSM SMS Alarm, GSM SMS Controller, GSM Home Automation system, Industrial Remote Controller, GPRS RTU Data Logger, GSM Telemetry, Temperature Measurement Logger, Power Monitoring Alarm, GSM M2M Products Manufacturer since 2005.

Based on more than 8 years rich experiences, King Pigeon provide Professional High Quality and Reliable OEM/ODM service for the market in worldwide!

Welcome OEM/ODM Service

Put Your LOGO on Unit and Package Available!

Your any requests would be much appreciated, please do not hesitate to contact us.
