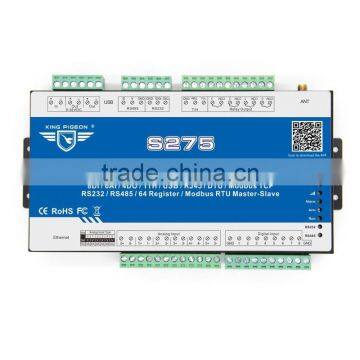

Product details of King Pigeon gsm modbus rtu gateway S275:

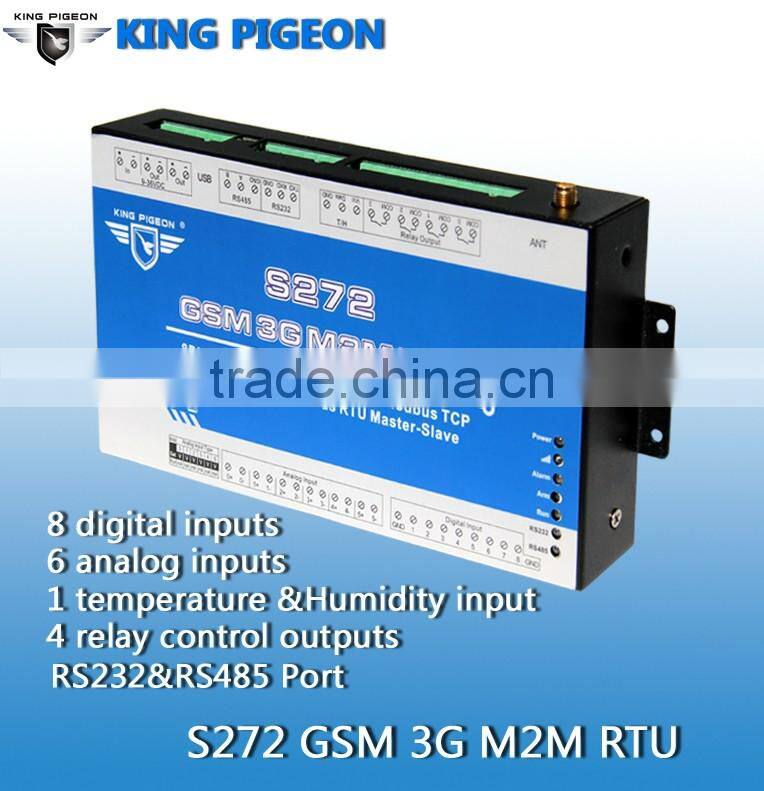

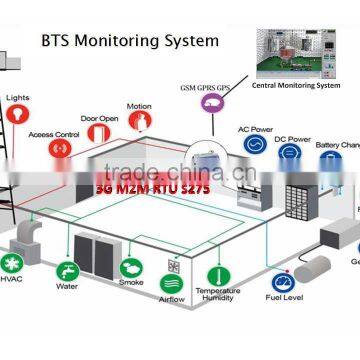

The RTU Telstra 3G SIM Card IOT RTU S272T GSM 3G M2M RTU is a multi I/O port remote terminal unit, through the RS232/485 port can extend up to 64 additional I/O or connect intelligent meters or PLC. It is special for BTS monitoring, remote data acquisition, telemetrically, BTS access control and other applications. It supports voice communication, SMS, GPRS, 3G and RJ45 LAN IP communications.

The GSM 3G M2M RTU can be used as remote access control; the authorized users can open the gate or turn on the machine with a free charge call at specified time.

The RTU Telstra 3G SIM Card IOT RTU S272T  GSM 3G M2M RTU supports Modbus RTU, Modbus TCP, TCP/UDP protocol, transparent data transmission over GPRS/3G, RS232, RS485, RJ45, performs as Modbus Master or Modbus Slave.

The RTU Telstra 3G SIM Card IOT RTU S272T  GSM 3G M2M RTU can be used as Modbus RTU SMS Alarm, when the data acquisition from via RS232/485 exceeds threshold, it also can send pre-definition SMS to users.

The GSM SMS Controller  RTU Telstra 3G SIM Card IOT RTU S272T   suitable for below applications:

A: I/O port connections, RS232/RS485 extend I/O ports, RS232/RS485 connect Air-Conditioners, Diesel Generator, Power System, and Battery Groups via transparent protocol or Modbus RTU protocol. Under this condition, the RTU performs Modbus RTU Master;

B: Through RJ45 LAN cable or GPRS or 3G to OMC, the protocol is defined by user of personal.

C: Through RJ45 LAN cable or GPRS or 3G or RS232 or RS485 to standard SCADA systems. Under this condition, the RTU performs Modbus Slave.

D: Through SMS to control RTU or receive alarm information, or through voice communication to open the door or receive alarm calling.

Features and Advantages of King Pigeon gsm modbus rtu gateway S275:

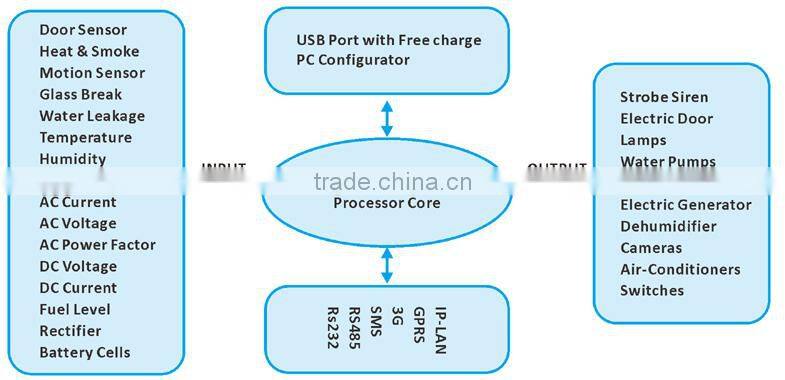

1. ARM® Cortex™-M4 32 Bit RISC Core, 168 MHz inside, RTOS system;

2. Widely Rated voltage range, 9~36VDC, Inbuilt large capacity rechargeable backup battery;

3. 2G SD card for save historical data, USB port for configuration and upgrade firmware;

4. 6 analog inputs, 16bits, supports 0-5V, 0-20mA, 4-20mA;

5. 4 Relay outputs, 5A/30VDC,5A/250VAC;

6. 8 digital inputs, dry contact or level input. One of the input can be used as counter;

7. 1 temperature probe input, 1 humidity transducer input;

8. I/O ports with opto-isolated, RS232/485 with 15KV ESD protection;

9. 2 IP data centers, supports Modbus TCP,TCP/IP protocol over GPRS/3G/RJ45 LAN network;

10. RS232/RS485 can performs Modbus RTU Master, Modbus RTU Slave, supports 01,02,03,04,05 code, up to 64 registers, the register arise alarm also can send SMS to alert;

11. RS232/485 can be used as data transparent transmission for different intelligent meters or PLC;

12. Automatically resend the data while communication failure, GPRS failure will alert by SMS text;

13. Supports remotely restart the RTU, and configure it by SMS commands remotely;

14. Supports over voltage protection and phase-reversal protection;

15. 10 SMS Alert and auto dial numbers, can program to receive specified alarm message.

16. 10 access control authorized numbers, can open the BTS door or turn on/off machine with a free charge call at the specified time.

Specifications of King Pigeon gsm modbus rtu gateway S275:

Standard Packing List:

Ø  S272T GSM Controller * 1

Ø  AC/DC Power supply adapter * 1 (12V 1.5A 1)

Ø  CD (Pc programmer tool/ User's Manual) * 1

Ø  GSM Antenna * 1
