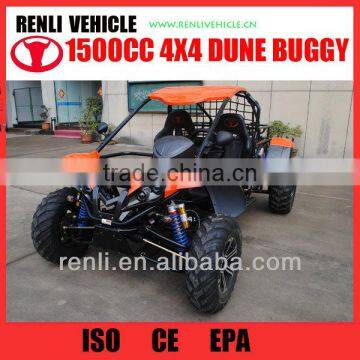

New Renli 1500cc 4x4 Dune sand buggy

2014 New Renli 1500cc 4x4 Dune sand buggy

Specification

DIMENSIONS

Overall Length--------------------------------------------------------------------------------------------------3140mm

Overall Width -------------------------------------------------------------------------------------------------- 1850mm

Overall Height ------------------------------------------------------------------------------------------------- 1580mm

Wheelbase --------------------------------------------------------------------------------------------------------2450mm

Front Track ------------------------------------------------------------------------------------------------------ 1375mm

Rear Track --------------------------------------------------------------------------------------------------------1570mm

Ground Clearance ------------------------------------------------------------------------------------------------310mm

ENGINE

Type -------------------------------------------------------------------------------4 Cylinder,4-Strokes,water cooled

Bore x Stroke ---------------------------------------------------------------------------------------------77.4×79.52mm

Displacement ------------------------------------------------------------------------------------------------------1497mL

Compression ratio ------------------------------------------------------------------------------------------------10.5:1

Carburetor --------------------------------------------------------------------------------------- Electric Fuel Injection

Max Power ------------------------------------------------------------------------------------------------80KW/6000rpm

Maximum Torque ------------------------------------------------------------------------------------140/3000Nm/r/min

Fule consumption----------------------------------------------------------------------------------------------6.2L/100km

Starting ----------------------------------------------------------------------------------------------------------- Electric

Ignition -------------------------------------------------------------------------------------------- Electric Fuel Injection

Lubrication -------------------------------------------------------------------------------------------- Force & Splash

Transmission ------------------------------------------------------------------------ Manual clutch, 5 shift/Reverse

Fuel type ------------------------------------------------------------------------------------------------ RQ93 (unleaded)

Engine oil ----------------------------------------------------------------------------------------------------- SAE-10W/30

Gear oil ----------------------------------------------------------------------------------------------------- GL-4 75W/90

CAPACITIES

Maximum load -----------------------------------------------------------------------------------------------------250kg

Fuel tank --------------------------------------------------------------------------------------------------------------- 30L

Engine oil ---------------------------------------------------------------------------------------------------------------3.8L

Gear oil ------------------------------------------------------------------------------------------------------------------2.3L

Starting ----------------------------------------------------------------------------------------------------------------≤15s

Climbing -------------------------------------------------------------------------------------------------------------- ≥25°

Battery ------------------------------------------------------------------------------------------------------------ 12V36Ah

Head Light -------------------------------------------------------------------------------------------------- 12V 35W/ 5W

Redirector Light -------------------------------------------------------------------------------------------------- 12V 5W

Tail Light -----------------------------------------------------------------------------------------------------12V 21W/ 5W

Horn---------------------------------------------------------------------------------------------------------------------12V3A

Fuse ------------------------------------------------------------------------------------------------------------------------30A

SPECIFICATIONS

Brake Track ----------------------------------------------------------------------------------------------- < 7m @40 km/h

Top speed ------------------------------------------------------------------ 115km/h (or limited as customers require)

CHASSIS

Front, Rear brake ----------------------------------------------------------------- Hydraulic disc, right foot control

Front tire -------------------------------------------------------------------------------------------------------- 205/70 R15

Rear tire --------------------------------------------------------------------------------------------------------- 205/70 R15

Front Suspension --------------------------------------------------------------------------- Independent Dual A-Arm

Rear Suspension ---------------------------------------------------------------------------- Independent Suspension

Final Drive --------------------------------------------------------------------------------------------------- shaft driven

TIRE PRESSURE

Front ----------------------------------------------------------------------------------------------- 280kpa2.5kg/cm2 41psi

Rear ------------------------------------------------------------------------------------------------ 280kpa2.5kg/cm2 41psi

WEIGHT

Net Weight ----------------------------------------------------------------------------------------------------------------689kg

G.W -------------------------------------------------------------------------------------------------------------------------780kg

Container quantity---------------------------------------------------------------------------20GP:4Units. 40HQ:12Units

Carton dimiensions---------------------------------------------------------------------------2930 mm×1770mm×850mm

1.Renli 4x4 dune buggies/sand go kart must adapt all terrains such as mountain,shallow lake,grassland ,snowfield,mine ,marsh ,sand ,beach,lawn etc!

2.Most selectable colors :free ( lucky red, bright orange, beautiful black,shiny yellow, apple green, skyey blue, pure white, shining silver, lovely pink),

extra money (forest camouflage, army green, follow one's inclinations combination)!

3.nice design,reasonable price,excellent quality,reliable engine,better service,your money paid must be worthy!

4.Excellent durable engine –Chery/QQ&CFMOTO/ChunFeng!less money spent,more profits got,own automobiles' enjoyable right now!

5.Relieve pressure, get close to nature ,enjoy beauty life!great way for fun!

6.Can most conventional autos used for hunting and climbing?We renlians made it! All buggies performance will beyond your imagination,push the envelope!just do it!

7.Maximum customized designs can be accepted!that cool & fantastic and eyecatching originalities all changed by you!

8.Renli is growing with your support!all OEM service and rebrand are okay!

9.strongest steel bars fixed inside package & durable carton covered outside to protect your buggies better!

10.Any comments are highly welcomed! Any interested heartbeat?Hurry up!call me!contact us!
