Home > Products > XBH 8X8 > XBH 8X8-2C Diesel-engine Vehicle Water and Land Vehicle Go-anywhere Vehicle Fire Fighting Truck All-Terrain ATV

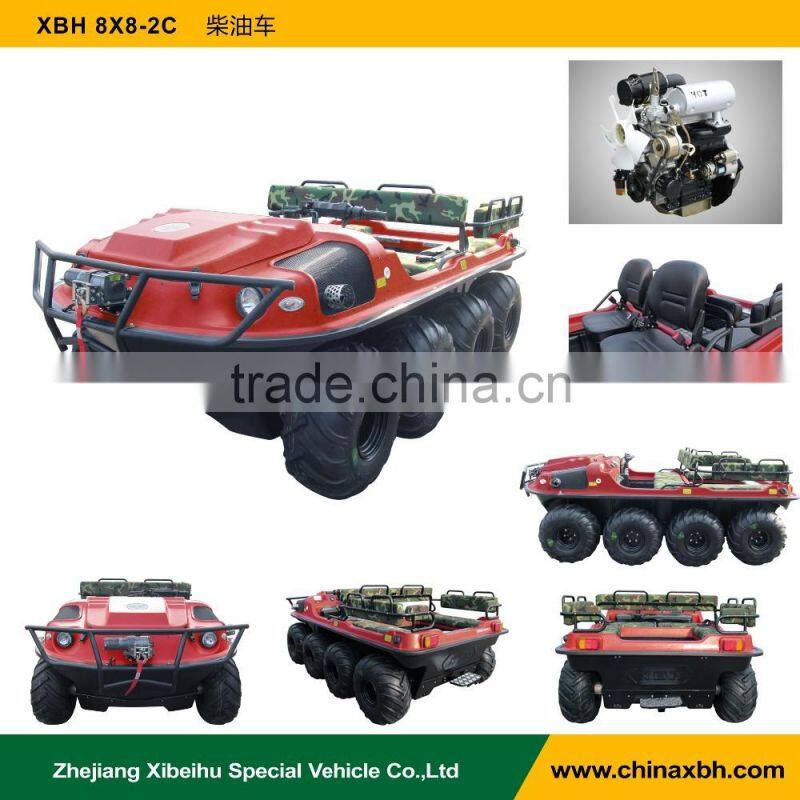

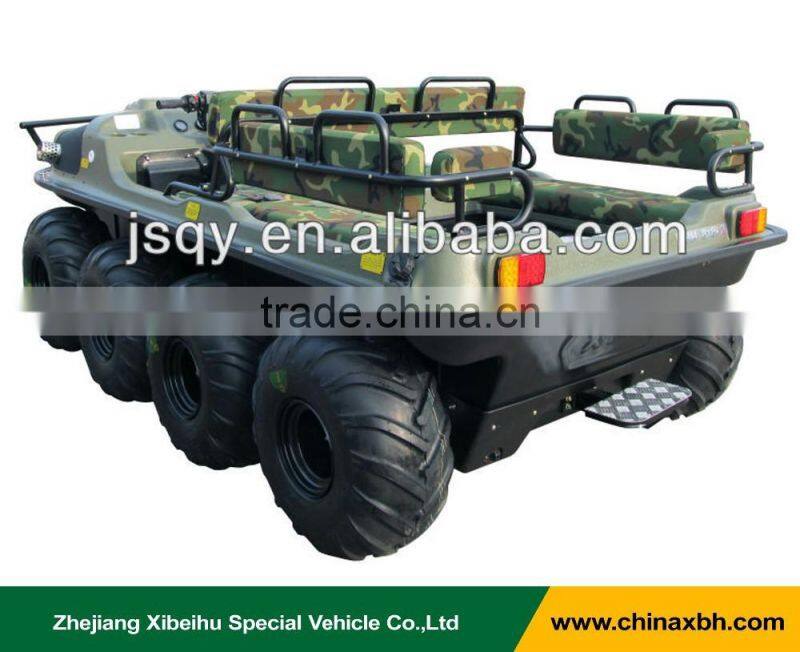

XBH 8X8-2C Diesel-engine Vehicle Water and Land Vehicle Go-anywhere Vehicle Fire Fighting Truck All-Terrain ATV
- NIngbo
You May Like
-
XBH 8X8-2 Fire-fight Truck All-Terrain Amphibious Vehicle Forest Fire Fighting 800cc 8 Wheels ATV Mini Fire Engine
-
XBH 8x8-2 Amphibious Vehicle With Forklift Reversible Snow Plough Shovel Snow Special Car Snow Cleaning Vehicle
-
XBH 8x8-2 Amphibious Reversible Snow Plough Shovel Snow Special Car Snow Cleaning Vehicle
-
XBH 8X8-2A Jet Propelled Vehicle Floating Water River Lake Amphibious ATV Crossing River Car
-
XBH 8X8-2 Standard Amphibious Vehicle 800cc 8 Wheel 4 Stroke ATV
-
XBH 8X8-2(Mark-3) Forest Pump Vehicle With Mini-Striker Forest Fire Fitting Flood and Drainage Fitting Wide Application Car
Product Details
| Brand Name | XBH | Model Number | XBH 8X8 > 8X8-2C | |
| Place of Origin | Zhejiang, China |
Product Description
XBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATV
XBH 8X8-2C Diesel-engine Vehicle
Body Parameters: | ||
| Dimension: | 3160×1720×1150mm | |
| Wheel Base: | 670×670×670mm | |
| Track: | 1420mm | |
| Minimum Ground Clearance: | 180mm | |
| Complete Vehicle Kerb Mass: | 750kg | |
| Rated Load: | On Land:500kg(6 People) | On Water:300kg(4 People) |
Performance Parameters: | ||
| Start Mode: | Key | |
| Ignition Mode: | EFI | |
| Battery Specification: | 12V/60Ah | |
| Drive Mode: | On Land: All-wheel Drive On Water: All-wheel Drive or Outboard Drive | |
| Top Speed: | On Land:45km/h On Water: 5km/h(Tyre Stroke)or 12km/h(15 hp Outboard) | |
| Minimum Turning Radius: | 0.71m | |
| Maximum Climbing Angle: | 32 º | |
| Approach Angle: | 54 º | |
| Departure Angle: | 57 º | |
| Brake Mode: | Caliper Hydraulic Brake | |
| Tyre Specification: | 25×12(11.5)-9NHS | |
| Tyre Pressure: | 5-7psi (34.5-48.3kPa) With track: 3-5psi(20.7-34.5kPa) | |
| Transmission Mode: | Belt and Chain Transmission | |
Dynamic Parameters: | ||
| Engine Model: | 3M78 | |
| Engine Type: | Inline, Water-cooled, Four-stroke, Tunnel-type | |
| Air Intake: | Normally Aspirated | |
| Combustion Chambe: | Swirl | |
| Cylinder Diameter ×Stroke: | 3-78×78.4mm | |
| Cylinder Jacket: | Dried | |
| Displacement: | 1123ml | |
| Compression Ratio: | 22:1 | |
| Normal power and Revolution: | 8~18 kW (1800~3600 r/min) | |
| Max. Torque and Revolution: | 60 N•m (1800~2200 r/min) | |
| Idle Speed: | 900±50r/min | |
| Lubricating Mode: | Pressure and Splash Lubrication | |
| Cooling Mode: | Coolant | |
| Clutch System / Transmission Type: | CVT / CVT+2 Forward Gears, Neutral, Reverse Gear | |
| Fuel Type / Oil Tank Capacity: | Diesel 0# / 38L | |

In 2005, Yiwu Xi Beihu Special Vehicle Co., Ltd., which is specially engaged in the development, production and sales of amphibious special vehicles, is a high-tech enterprise invested by Jia's Industrial Co., Ltd. with a total investment of 200 million yuan. The company has a dozens of senior technical staff of the product development team and the international advanced production equipment, and through the Chinese People's Liberation Army Armored Engineering Institute of cooperation to ensure that the company's research and development capabilities and technical level.
After years of research, the company has successfully developed a new generation of complete intellectual property rights of all terrain vehicle --- "Xi Beihu" amphibious special vehicles. The successful development of the car, to fill the domestic amphibious all terrain operation vehicle blank, breaking the domestic automobile industry single use limit.

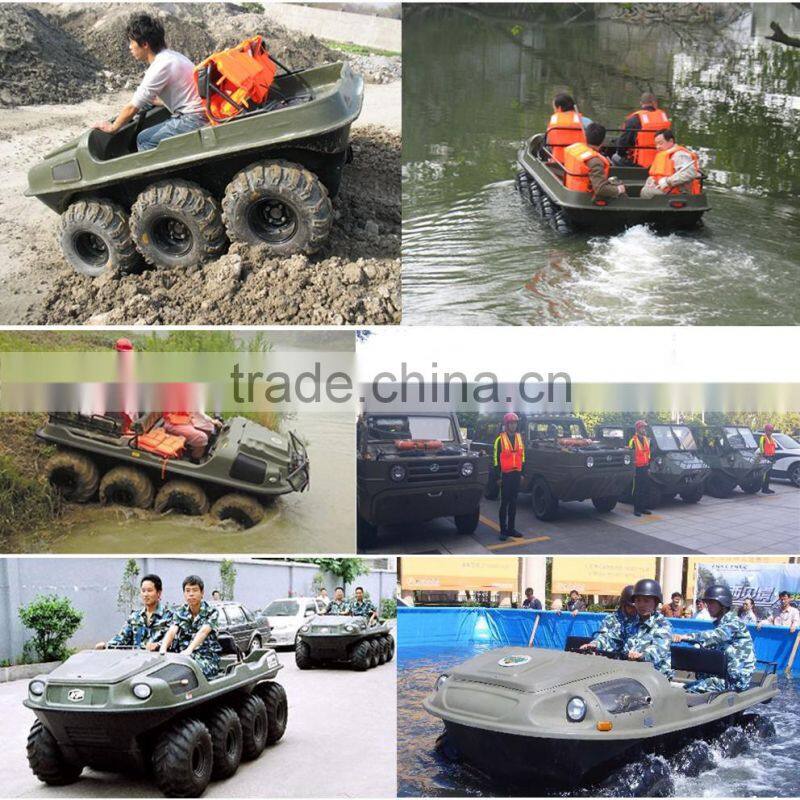

The performance test and practical application show that "Xi Beihu" in the water, hills, swamps, snow, forests and other bad terrain in the free travel, and can be ± 40 ℃ in the ultra-conventional temperature environment for continuous Operations, the key technical indicators to achieve and exceed the international advanced level.
1.Q:Are your company a manufacturer or trading company?
A:We are a manufacturer with 13 years .And 10years of exporting experience
2.Q:Where is your factory? How can I get there?
A:Our factory is located in Yiwu City, Zhejiang Province.Which closed to Yiwu Airport.We are highly welcome your visit of our factory.And we can pick you up from the Yiwu airport.
3.Q:Can your products be customized?
A: Almost all of our products can be customized, including the sizes, color, logo, package and so on. OEM is acceptable.
What's your Product MOQ?
A:For whole set car 3units/1X20GP container,MOQ 3units.
4. Q: What is the advantages of your products?
A: High quality and copetitive price. Xibeihu Pay attention to production quality control from the beginning to the end . Each product will be fully assembled and carefully tested before it's packed for shipment.
5. Q: What makes your company a reliable supplier?
A: Many years of experience in manufacturing and exporting.Strict quality control, the QC strictly carries on a precise process to ensure the best quality. We have the most professional overseas sales and customer service team. In a word, we offer you not only the products, but also the professional service.
