Home > Products > Rocker Switch > 12V 24V Carling waterproof Rocker Switch
12V 24V Carling waterproof Rocker Switch
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | LT | Model Number | LTC-141116-06 | |
| Max. Current | 20A | Max. Voltage | 250V | |
| Mechanical Life | 500000 |
Product Description
Specifications
12/24V rocker switches with two colors LED lights!Anti-corrosion ABS plastic panel
2 colors of LED lights
Red&Blue Lights
12V 24V Carling waterproof Rocker Switch
1.Abs plastic panel
2.waterproof rocker switch
3.500000 Mechanical Life
4. Process can be screen printing and laser carving
5. It has a face surface size of 0.90'' x 1.92'' and uses a standard din size mounting hole. Cutout Dimensions are 0.83'' x 1.45''.
These high quality 12 volt Rocker switch is a single throw ON - OFF switch designed to operate your 12 volt accessories. They have a face surface size of 2'' (50mm) x 1'' (25mm) and uses a standard din size mounting hole of 1.41'' (36mm) x .86'' (22mm) this is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.
- Single Pole Single Throw ON-OFF switch.
- 12VDC 20Amps, 24VDC 10Amps 125VAC 16Amps, 250V DA10Amps.
- Black hard surface rocker.
- Two LEDs in the switch.
- Upper LED is ON only when the switch is turned ON.
- Lower LED is independent.
- Both LEDs have separate grounds.
- Same size as the Carling and ARB switches.
- Rated 16A 12V.

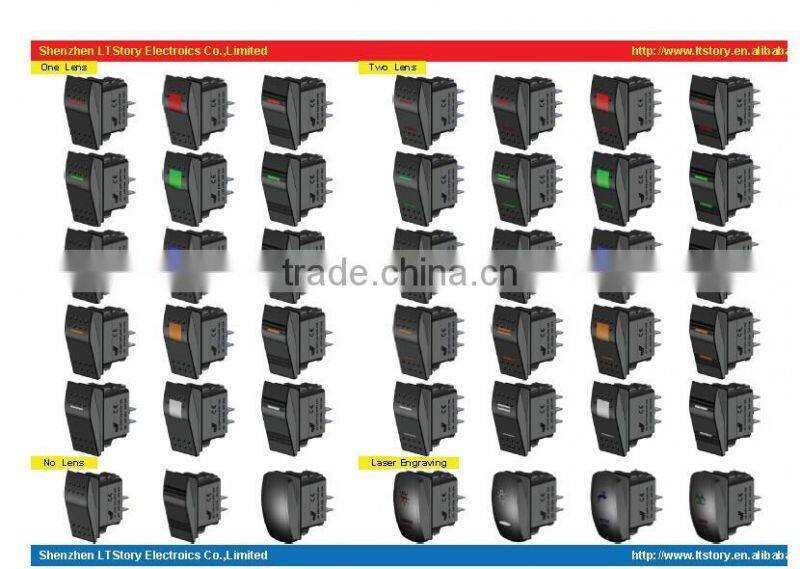

- No rear barriers between terminals.Photos on the samples for your reference:
