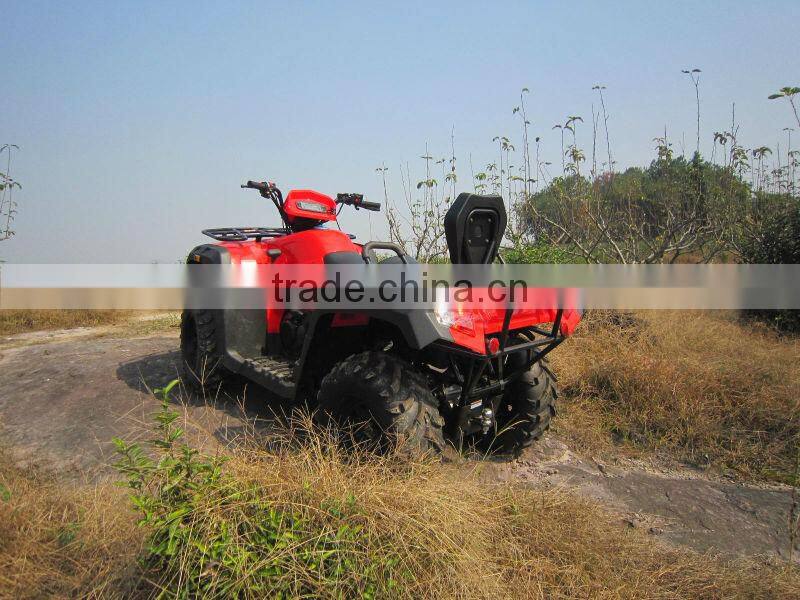

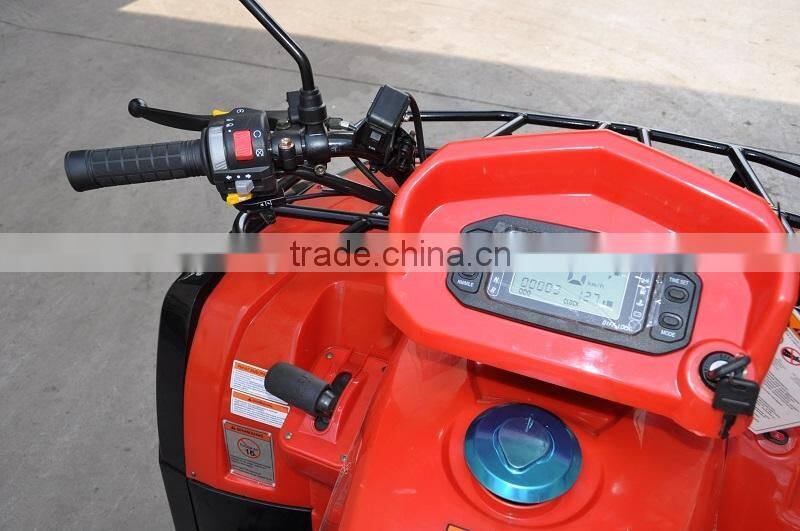

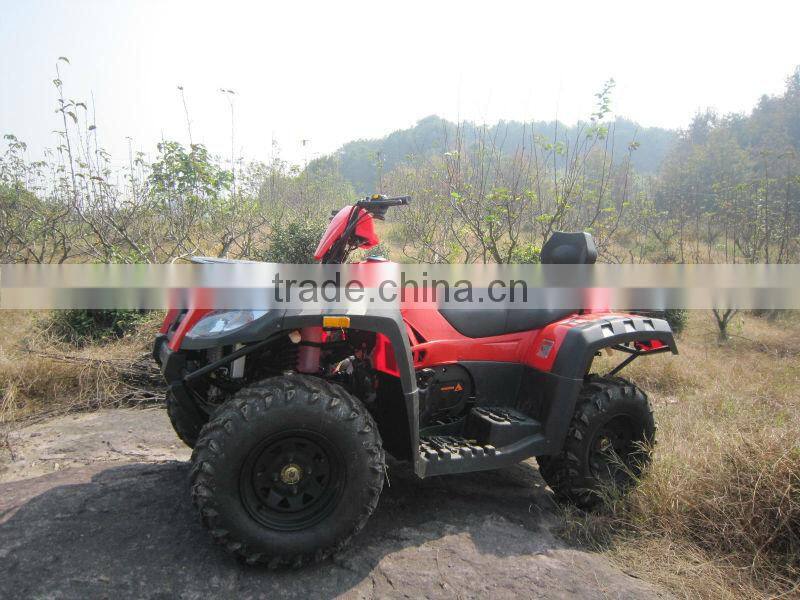

2013 NEWEST Atv 500cc (ZP500ST-4)

TECHNICAL FEATURES OF ATV "RYS 500".

1. Main features and dimensions

Seat capacity (number of places), people.

2

2

Unequipped (dry) weight, kg, not more then

(),

364

364

Equipped weight, kg, not more then

,

380

380

Notice – equipped weight – ATV with fuel, oil and instrument.

()

433

433

Max weight of ATV, kg, not more then

,

710

710

Dimensions, mm:

(mm)

- length

2330

2330

- width

1185

1185

- height

1330

1330

Wheel base, mm

(mm)

1490

1490

Front track / rear track, mm

/(mm)

926835

front 926/rear 835

2. Engine

Model

SQ188MR-2

SQ188MR-2

Type

\,

four stroke,water cooled

Cylinder

Single cylinder

Working capacity of cylinder, cm 3

493ml

493ml

Max power, kW (h.p.)

23kw(6300r/min)

23kw(6300r/min)

Max torque H@m (min -1 )

250N.m(660r/min)

250N.m(660r/min)

Compression ratio

10.9:1

10.9:1

Oil-pressure:

8kgf

8kgf

Fuel type:

90#

90#

Carburetor

vacuum diaphragm

Air filter

Adsorption type

Coolant

+

Water & oil cooling

Ignition system

CDI

CDI

Start system

Electric start hand starting

3. Transmission

Shifting way

Shaft drive

Type

automatic

Gear box

external

Clutch

CVT

CVT

Brake system

23

2 Torr 3 hydraulic brake

- working

Linkage

- parking

()

Mechanical park brake ( handbrake )

4. Undercarriage

Front suspension

Independent suspension

Travel of front suspension, mm

(MM)

90

90

Rear suspension

Independent suspension

Travel of rear suspension, mm

(MM)

110

110

Tires

25x8-12  25x10-12

front25x8-12  rear25x10-12

5. Refill capacities

Fuel tank, L

(L)

17

17

Engine case, L

(L)

2.1L

2.1L

Front differential, cm 3

cm3

330

330

Rear reducer, cm 3

cm3

165

165

Engine cooling system, L

(L)

0.39

0.39

Brake system, L

(L)

DOT-3

DOT-3
