Full Roll Cage Bumper UTV/250cc Shaft Drive Sport UTV/250cc SPIDER UTV GO KART (TKG250-A3)

FOB Price

US$ 2,650 - 2,990 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED lights&LED speedmeter SPIDER UTV GO KART

Full roll cage Bumper GO KART UTV

250cc shaft drive sport UTV

Automatic Go kart 250cc, 4x2 drive UTV go kart

whatsApp: 008615305843351

ENGINE
Engine type		4-stroke,Single-Cylinder, Air/Oil-cooled
Displacement		232cc
Max power		10.5Kw/7500r/min (14.5HP)
Valve Configuration		OHV
Compression ratio		10.3:1
FUEL SYSTEM
Fuel Delivery System		Fuel pump+Vacuum Diaphragm carburetor
Choke System		Automatic
Fuel capacity		9.5L (2.1 Gallon)
DRIVETRAIN
Driveline Type		2WD
Final Drive		shaft drive
Transmission		Constantly variable Transmission
Gear Selection		F-N-R
Speed meter		LED Speed meter
ELECTRICAL SYSTEM
Forward Lights		Headlights-High & Low Beam
Heading Light		LED
Driving Light		LED
Rear Lights		Brake Lights & Left/Right Signal lights
Starting system		Electric start
Ignition system		D.C.D.I
SUSPENSION / BRAKES
Suspension Front		Double A-arm Suspension

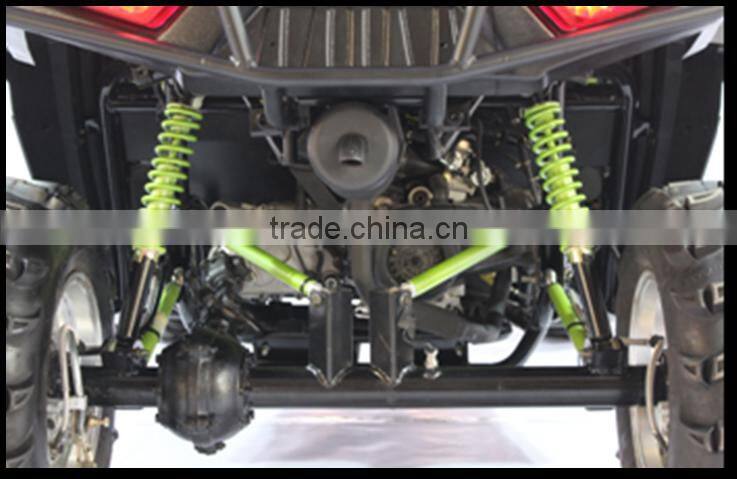

Suspension Rear		4-link bar rear suspension
Brakes Front		Dual Hydraulic Disc 220mm
Brakes Rear		Dual Hydraulic Disc 180mm
TIRES
Front Tread		1150mm ( 45.3 in)
Rear Tread		1040mm ( 41.0in)
Front & Rear tire size		25x8-12 / 25x10-12
Front & Rear rims size		12x6/12x8
MISC
Loading information		8 units/20″; 18units/40″; 26units/40HQ
Manufacturers Defect Warranty		6 Months
Top speed		62km/h
Dry weight		320kgs ( 750 lbs.)
Gross weight		348kgs (766 Ibs.)
Wheelbase		1980mm (78.0in)
Vehicle dimension (L×W×H)		2590x1350x1660mm (102x 53x65.4 in)
Packing size
Ground clearance		260mm (6in)
Safety Driver&Passenger triple		Point Fix seat Belts/metal Semi-Door

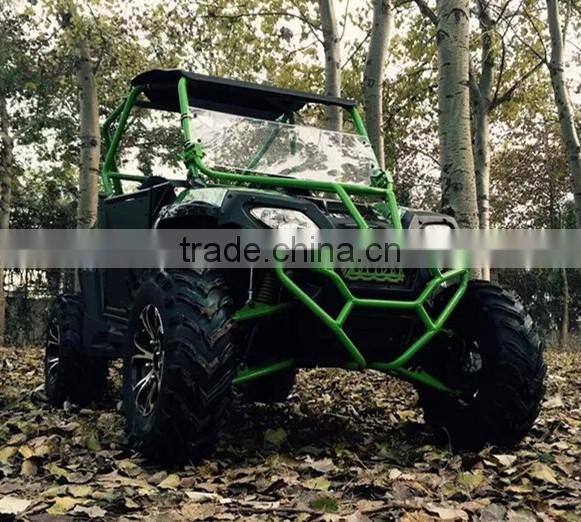

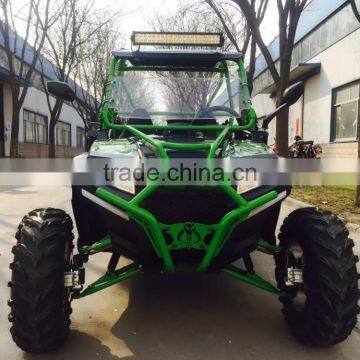

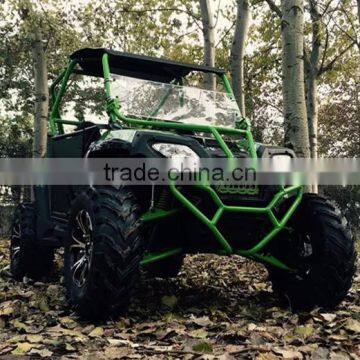

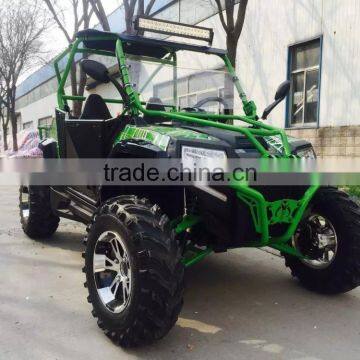

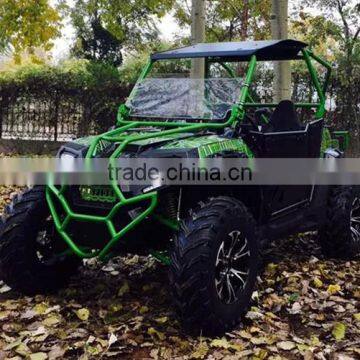

Full roll cage Bumper Design, metal semi-door, 12"Alloy-wheel,LED lights

Shaft drive

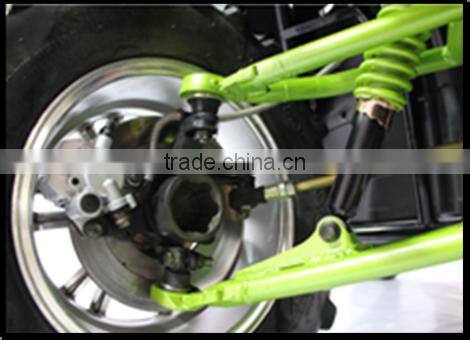

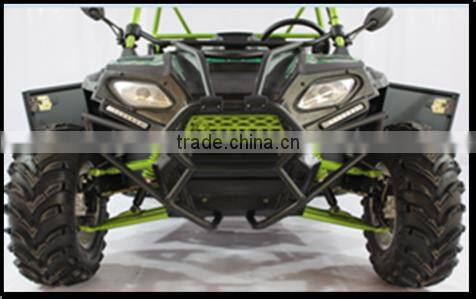

Double A-Arm

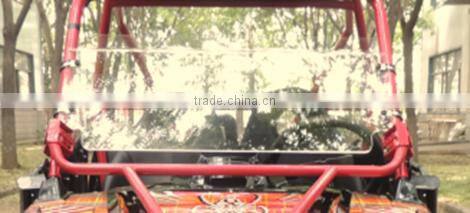

Windshield

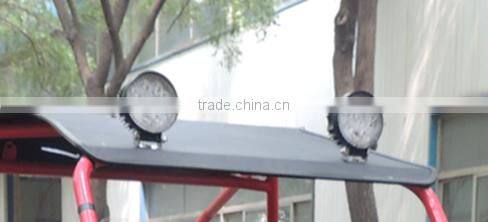

steel roof and roof lights
