250cc Quad Atv Utility Atv

Specifications

SPECIFICATION

Displacement 150cc (200cc, 250cc engine optional)
Size 1730×1020×1000mm
Lubrication combined force-feed and splash lubrication
Front Tread  870mm
Rear  Tread  660mm
Wheelbase 1110mm
Net Weight 140kg
Gross Weight 160kg
Ground Clearance 150mm
Engine Type Single cylinder,air-cooled, 4 stroke
Ignition CDI
Start mode  Electric start
Front Wheel 19/7-8 (10" wheel optional)
Rear Wheel 18/9.5-8 (10" wheel optional)
Front Brake manual drum brake
Rear Brake foot disk brake
Transmission System chain drive
Front axes weight 55KG
Rear axes weight 57KG
Compress Ratio 9:1
Bore ×Stroke (mm) 57.4×57.8
Seat height 850mm
max climbing ability 17°
Head light 12V 35W
Rear light 12V 15W
Turning light no
Horn no
Clutch Automatic
Front shock hydraulic spring
Rear shock hydraulic spring
Max Power Kw(r/min) 5.9/7500kw/(r/min)
Max torque 8.3/6000N·m/(r/min)
Min fuel consumption 354g/KW.h
spark plug Model A7TC
Fuel 90#
Battery 12V9AH
Turning degreedegree  ±23
Min. Turning radius(mm) 3500±300
Front and rear tyre air pressureKpa 69
Brake performance  ≤7m/30Km/h
Max. vox   db(A)  ≤115
parking performance(°)  ≤15
Initial SpeedS  ≤30
Surpassing PerformanceS  ≤30
Breaking Stability  ≤2.5
Max Speed 65(Km/h)
 Max Loading Capacity 90KG
Tank Capacity 4L
Carton Size 1500mmx830mmx810mm
Container Quantity 66pcs/40HQ

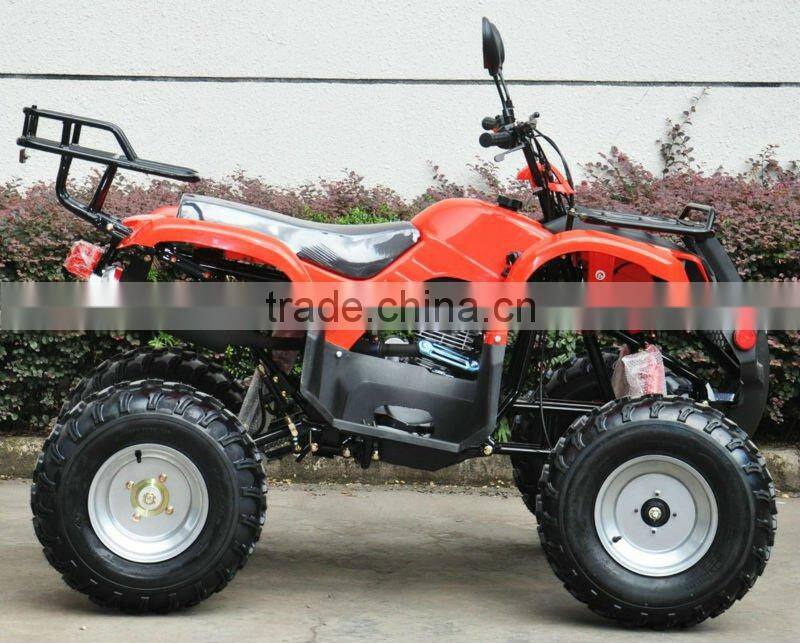

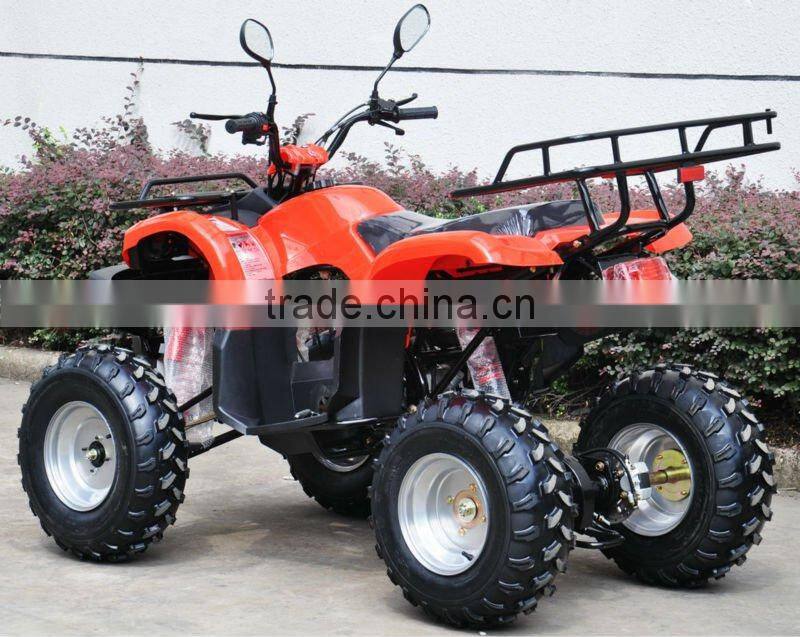

Product Photos

Product Work Flow

Package

Certificate

FAQ

1. Q: Can I get some samples? A: We are honored to offer you samples for quality check.

2. Q: Do you have the products in stock?

A: No. All bikes are to be produced according to your order including samples.

3. Q: What’s the delivery time?

A: It usually takes about 25 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.

4. Q: Can I mix different models in one container?

A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.

5. Q: How does your factory do regarding quality control? A: Quality is priority. Highper People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

6. Q:What's your warranty terms? A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.

7. Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. Highper has been alibaba’s Gold supplier since 2004. If you check with alibaba, you will see that we have never got any complaint from our customers.

Highper Sales Team
