Home > Products > ATV > 2014 New EEC Quad Bike With 300cc Water Cooled Shaft Transmission,4X4

2014 New EEC Quad Bike With 300cc Water Cooled Shaft Transmission,4X4

FOB Price

US$ 2,450 - 2,500 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

quad
1.300cc water cooled engine
2.4X4
3.shaft transmission,automatic with reverse
4.EEC approval

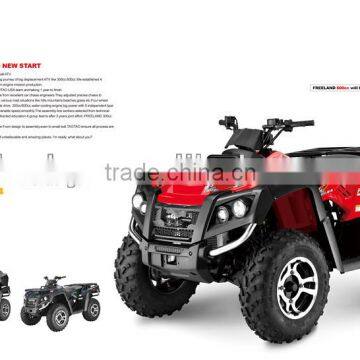

2014 new EEC quad bike with 300cc water cooled shaft transmission,4X4

specification:

Specification/TYPE	ATV300-F
Specification/TYPE	ATV300-F
ENGINE TYPE	4 Strokes,Water-cooled
MAX.POWER(KW/rpm)	16KW/7000rpm
MAX.TORQUE(NM/rpm)	23N.M/5500rpm
MAX.SPEED	65KM/h
CYLINDER NO.	Single Cylinder
BORE STROKE	72.5mm x 66.8mm
DISPLACEMENT	276cm
COMPRESSION RATIO	10.3:1
CARBURETOR	CVK052
LUBRICATE	Separated&pressure
AIR FLTER TYPE	Dry Air-Cleaner Net
SPARK PLUG	A7RTC
STARTING	C.D.I.Electric Start
STARTING PROCEDURE	Open lgnition,Brake,Press on Switch
GEARSHIFT	By hand
TRANSMISSION	Axle
BRAKE FRONT	Disc Brake
BRAKE REAR	Disc Brake
BRAKE DISTANCE	7m/30km/h
FRONT SUSPENSION	McPherson suspension
REAR SUSPENSION	Single-arm device
SHOCK ABSORBER(F)	Double
SHOCK ABSORBER®	Double
BATTERY	12V/14AH
ENGINE OIL	1.5L
TRANSMISSION OIL	0.8L
REAR OIL	0.3L
FUEL	93# Unleaded Gasoline
FUEL CAPACITY	12.5L
TURNING RADIUS	3280mm
MAX.LOAD(kgs/lbs)	129kg
FRONT TIRE	25x8-12
REAR TIRE	25x10-12
OVERALL	2160x1210x1250mm
PACKAGE40HQ`(SET)	27pcs
WHEELBASE(mm)	1295mm
SEAT HEIGHT(mm)	950mm
GROUND CLEARANCE	200mm
CONTAINER LOADING QTY	20':12pcs,40'HC:27pcs

Pictures:
