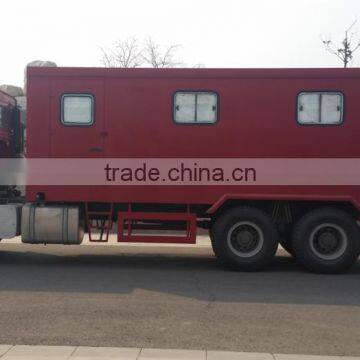

Mobile Workshop truck for sale

Engine

Make and model…………………..………….. WD615.62

Type………….. Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling

Displacement................................................ 9.726 liter

Maximum output………………..…..266 HP@ 2200 rpm ( 196KW @ 2200 rpm )

Max. torque .......................... 1100NM@1300-1600 rpm

Bore ………………………………………………...126 mm

Stroke ………………………………………………130 mm

Mean piston speed ………………………………11.5 m/s

Compression ratio……….……………………………16:1

Specific fuel consumption …………..……...197 g/kWh

Engine oil filling quantity ……………………….19 liters

Cooling system filling quantity ……………….40 liters

Gearbox

Type..….........................………..... HW13710

No. of speeds ................................ 8 forward, 1 reverse

Forward ratio................................ 11.4; 7.94; 5.63; 4.06; 2.81; 1.96; 1.39; 1.00

Reverse ratio... .........................….........................11.35

Front axle

Type.…….Rigid stub axle with double T-cross members

Max. load............................................................ 6500Kg

Tandem axle

Type..........……………….…………Pressed axle housing, single reduction with planetary wheel reduction

Ratio..............................................……...………….....4.8

Max. load.......................................................….13000Kg

Frame

Type................................ parallel ladder with U-profiles and riveted cross members

Steering

Type.....................................................................ZF8098

Ratio................................................................……..26.2

Fuel tank capacity…………………………..…..400L

Wheels and tires

Rim……..............................................…..............8.50-20

Tire ……..........……………….……Triangle 11.00-20 /16

Quantity………………………………………………….7

Brakes

Service brake.................Double circuit pneumatic brake

Parking brake.............. Spring-powered air-cut off brake

Assistant brake..................Engine exhaust brake

HOWO Cabin

All-steel forward control, 70° hydraulically tiltable to the front, 3-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial,

Overall dimension (length×width×height) .....………….………….....8400×2496×3700mm

Body dimension (length x width) …….…4500 x 2300 x2000mm

Wheelbase....………………….………......4600+1350mm

upper frame configuration

40kw Generator,Oxygen bottle,Acetylene bottle,Inventer welder with cable,Air compressor ,Bench driller,Bench Grider,Bench vise,wall fan,workbench with drawer,mobile cable roll,standard tool,folder chair,lathe,insulation carpet,reserve tyre
