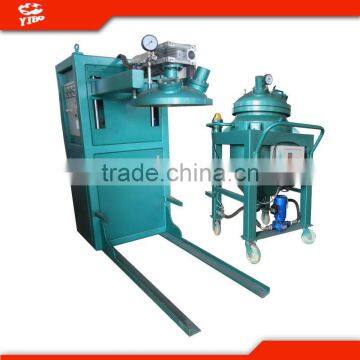

China supplier epoxy mixer machine for producing insulators
- Shanghai/Shenzhen or your choice
- T/T Credit Card PayPal
You May Like
-
China supplier resin injection machine with vacuum pump for insulators
-
Professional manufacturer of vacuum epoxy resin injection machine
-
Vacuum stirring mixing device and injection vehicle for epoxy resin clamp machine
-
Factory Made Good price vacuum degassing equipment for APG process
-
Factory Made Good price vacuum degassing device for APG process
-
Factory Made Good price vacuum degassing tank for APG process
Product Details
| Condition | New | Application | Viscous Fluid | |
| Place of Origin | Jiangxi, China | Brand Name | YIBO | |
| Model Number | AH | Max. Loading Capacity | 100L | |
| Voltage | 220V | Power(W) | 3KW | |
| Dimension(L*W*H) | 2000*850*1950 | Certification | ISO9001:2008,CE,SGS | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Epoxy mixer machine1.Standard accessories for APG machine.
2.Flexible use.
3.Adopt the temperature control system.
Epoxy mixer machine , Injection Vehicle for Resin Transfer Molding Machine
Features
1.Compact structure, less floor space, flexible use.
2.The temperature control system has functions of temperature.
3.Display, automatic temperature limiting, safety protection and so on.
4.Use stirring and injection vehicle directly, it is convenient to use.
5.Adoption of oil heating device, with stable temperature and perfect reliability.
6.Adoption of frequency control of motor speed, is featured with large range of stirring speed, quick degassing, uniform mixing.
Reinforced Type
1.Adoption of video display for working condition, it is obvious and clear.
2.Adoption of digital display vacuum gauge, with accurate display.
3.Control box stand-alone unit.
4.Strengthened filter unit, significant effect.
5.Accident alarm, it adopts alarm lamp device.
6.Special cooling fan.
Main Technical Parameters
Item | Technical Parameters |
Stirring power | 3KW |
Stirring speed | 21~118r/min |
Vacuum pump power | 1.5kw, 2800r/min |
Worm gear screw jack | 0.25 |
Vacuum degree | 2 |
Allowing air force in pot | ≤0.6 |
Dimensions of mixing device | 2000*850*1950mm |
Weight of mixer device | 600KG |
Capacity of pot | 100L |
Heating power of pot | 3(220V) |
Dimensions of pot | 1000*810*1620mm |
Weight of pot | 350KG |
Corollary Equipment: Resin Transfer Molding Machine
Resin Transfer Molding Machine Operation Process Flow Chart
With Resin Transfer Molding Machine and Mold,
you can manufacture the following products
Resin mixing machine
Resin injection machine
