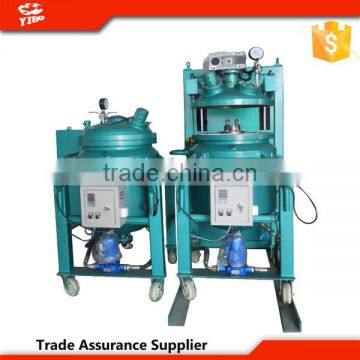

Epoxy resin mixer mixing device for insulators
- 100 Unit / Units per Month
- Shanghai/Shenzhen or your choice
- T/T Credit Card PayPal
You May Like
-
High quality resin mixing tank for resin products
-
Eopxy resin vacuum stirring and mixing device for insulators
-
Manufacturing of best quality resin vacuum mixing machine for resin transfer molding machine
-
China suppliers & new technology epoxy mixer machine vacuum mixing machine for insulators
-
Resin transfer molding machine epoxy mixer machine for insulators made in China
-
China supplier epoxy mixer machine for producing insulators
Product Details
| Condition | New | Application | Viscous Fluid | |
| Place of Origin | Jiangxi, China | Brand Name | YIBO | |
| Model Number | AH | Max. Loading Capacity | 100L | |
| Voltage | 220V | Power(W) | 3KW | |
| Dimension(L*W*H) | 2000*850*1950 | Certification | ISO9001:2008,CE,SGS | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Vacuum mixing machine, Injection Vehicle for Resin Transfer Molding Machine
Features
1.Compact structure, less floor space, flexible use.
2.The temperature control system has functions of temperature.
3.Display, automatic temperature limiting, safety protection and so on.
4.Use stirring and injection vehicle directly, it is convenient to use.
5.Adoption of oil heating device, with stable temperature and perfect reliability.
6.Adoption of frequency control of motor speed, is featured with large range of stirring speed, quick degassing, uniform mixing.
Reinforced Type
1.Adoption of video display for working condition, it is obvious and clear.
2.Adoption of digital display vacuum gauge, with accurate display.
3.Control box stand-alone unit.
4.Strengthened filter unit, significant effect.
5.Accident alarm, it adopts alarm lamp device.
6.Special cooling fan.
Main Technical Parameters
Item | Technical Parameters |
Stirring power | 3KW |
Stirring speed | 21~118r/min |
Vacuum pump power | 1.5kw, 2800r/min |
Worm gear screw jack | 0.25 |
Vacuum degree | 2 |
Allowing air force in pot | ≤0.6 |
Dimensions of mixing device | 2000*850*1950mm |
Weight of mixer device | 600KG |
Capacity of pot | 100L |
Heating power of pot | 3(220V) |
Dimensions of pot | 1000*810*1620mm |
Weight of pot | 350KG |
Corollary Equipment: Resin Transfer Molding Machine
Resin Transfer Molding Machine Operation Process Flow Chart
With Resin Transfer Molding Machine and Mold, you can manufacture the following products
YIBO Company:
- The only manufacturer who can supply one-stop complete solution service for electric industry of resin products such as CT,PT,insulators,SF6 shell.with best factory price and fast shipment.
- Professional rich experience engineers and research team, we offer free APG technique training.Our engineers have 23 years experience who serviced many years in ABB, We 100% promise to teach APG technique to you even you are newcomer.
- Have a line and lab special for producing CT and PT.we can winding samples and test in our lab.
