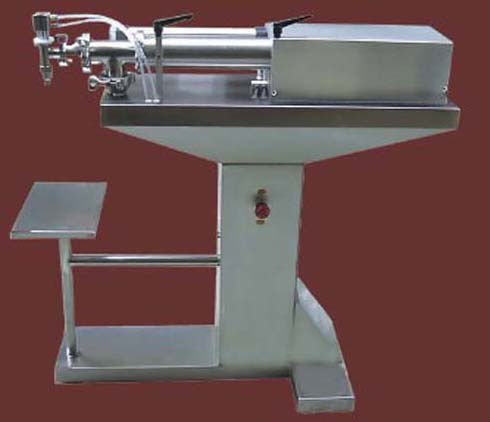

Pneumatic Viscosity Filler

Specifications

The machine series piston fillers are designed to dispense a wide variety of liquid and semi-liquid products and serve as ideal filling machines for the cosmetic, pharmaceutical, food, pesticide and other industries. These kinds of pure pneumatic machines represent significant improvements based on our LW series fillers. They are completely powered by air, which makes them especially suitable for an explosion-resistant or moist production environment. All the components that come in contact with product are made of 316 L stainless steel imported, processed by CNC machines, and the surface roughness of which are ensured to be lower than 0.8. The pneumatic components are from FESTO, Germany. It is these high quality components that help our machines achieve market leadership when compared with other domestic machines of the same type.

We also have the Series its pneumatic components from Taiwan or Korea, which offer quality at an affordable price, making our machines more accessible.
Options include:

Pinhead filling Nozzles, Hoppers and Ball Valve System

In addition, these machines also have the following features:
1.series machines are controlled by compressed air, so they are suitable in explosion-resistant or moist environments.
2.Because of the pneumatic controls and mechanical positioning, this series has a high filling accuracy. 3.The filling volume is adjusted using screws and the counter, which provides ease of adjustment and allows the operator to read the real-time filling volume on the counter.
4.When you need to stop the machine in an emergency, push the URGENT button. The piston will go back to its initial location and the filling will be stopped immediately.
5.Two filling modes for you to choose—'Manual' and 'Auto'.
6.Equipment malfunction is extremely rare.

Technical Specifications:
Filling Speed 0~50cpm.
Filling Accuracy Within ±5‰ (measured on dispensing WATER at larger than one half of the machine's maximum filling volume)
Air Pressure: 4-6kg/cm2
