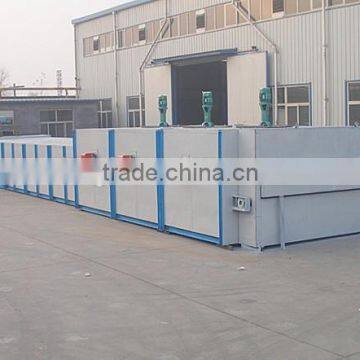

annealing lehr for container glass

FOB Price

USD $30,000 - $300,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

Henan, China

Main Features

radiation heating with flame above.
Temperature can be set in each section to achieve a optimal temperature curve according to the type of annealing product;separate and automatic control on each burning zone.
Evenly distributed temperature,all burning chamber in stainless steel,long service life expectancy.
full automatic and precise control of temperature,temerature difference within +/- 1℃; high energy efficiency.
tailor-made according to production capacity, length of annealing lehr adjustable to guarantee best performances in each different case.

Flame-fired Annealing Lehr

	Item	Unit	Main technical parameters
			FAL	FAL	FAL	FAL	FAL	FAL	FAL	FAL	FAL	FAL	FAL	FAL
				-RTS	-RTS	-RTS	-RTS	-RTS	-RTS	-RTS	-RTS	-RTS	-RTS	-RTS
			600	900	1200	1500	1800	2100	2400	2700	3000	3300	3600	4200
1	Width of Mesh belt B(mm)	mm	600	900	1200	1500	1800	2100	2400	2700	3000	3300	3600	4200
2	Lever Height of Mesh belt	mm	900-1000(or Customized)
3	Mesh belt Speed	mm/min	10-500
4	Allowable Maximum Temperature	℃	630
5	Furnace Hight	mm	350/400
6	Temperature Difference at cross section	℃	±2
7	Max load of Mesh Belt	kg/m2	90
8	Thickness of Stainless Steel Container	mm	3
9	Gear Motor Power	kw	1.1-3
10	Power of Circulation Fan	kw	1.1-2.2
11	Power of exhaust Heat Recovery Fan	kw	0.75-1.5
12	Fuel Type	natural gas,liquefied petroleum gas,Light diesel oil
13	origin of burner	Italy or Germany
14	gas control system	electromagnetic control or Germany proportional control
15	Temperature Control Methods	full-automatic independent control
16	Full Length	mm	25000-28000
17	Width of High-temperature section	mm	B+1100
18	Width of cold section	mm	B+600
