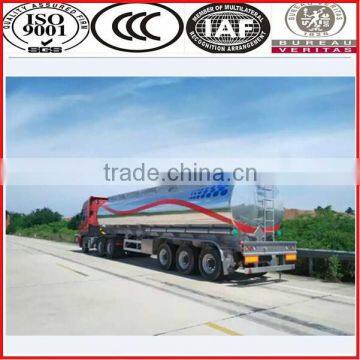

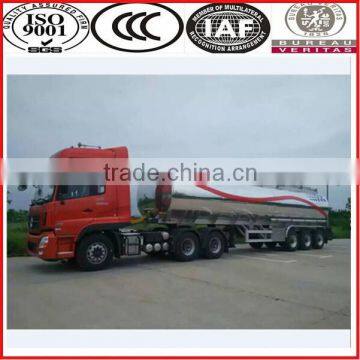

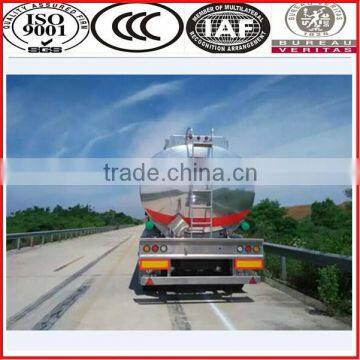

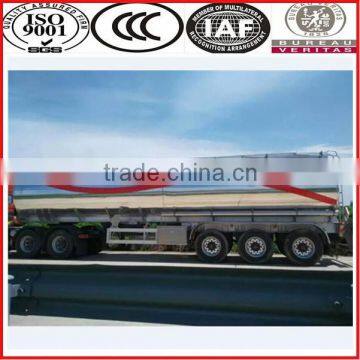

Bottom Loading Aluminum Fuel Tanker 42,000liters (SASO-2288/2809)

Vehicle model

CLW9402GYY

Batch No.

2001F0

Overall dimension(mm)

12980×2500×3900

Total weight(Kg)

39990

Body internial dimension(mm)

 ××

Rating load(Kg)

28400

Approach/departure angle

-/16

Curb weight(Kg)

11590

Front hang/rear hang(mm)

-/1840

Max speed(km/h)

Axle number

3

Tyre number

12

Wheelbase

7200+1310+1310

Tyre specification

11.00R20

Axle load

-/23960

Front wheel distance

Leaf spring number

8/8/8

Rear wheel distance

1840

Other

Tanker capacity:44M3

DIMENSIONS

Tare  Weight

7200kg

Payload

31750kg

Total  Weight

38950kg

Overall  Length

13000mm

Overall  Width

2500mm

Overall  Height

2720mm

Wheel track

1840mm

Wheelbase

7280mm+1310mm+1310mm

SPECIFICATION

Main  Frame

Back three axles and steel spring balance suspension system.With steel frame throughout type and the high quality alloy steel welding longeron into h-beam

Floor

Steel Sheet 3mm thickness

Axle

Three Units of FUWA 12Ton axle

Suspension

3-axle mechanical suspension,German design

Leaf Spring

Six sets of reliable local brand, 8-piece leaf spring

King Pin

one unit of 2`` welded kingpin

Landing Gear

Two-speed ,manual operation, heavy duty JOST landing gear

Wheel Rim

Twelve units of 8.25-22.5 rim

Tyre

Twelve units of 11R22.5 tyre

Twist  Lock

Twelve nos. four nos are fasten mode,eight nos are up-down mode, of ISO twist lock for 2x20ft;1x40ft container,central locks can be laid down.

Spare Wheel Carrier

One set of spare wheel carrier including a riser.

Pneumatic Braking System

Two units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber , two units of reliable local brand 45L air tank ; two units of reliable local brand standard coppery air-connector.

Electrical  System

One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket;two sets of reliable ,local brand standard rear light,turn light,rear reflector,side light,side reflector etc. One set of  DAFA(brand ) 6-core standard Cable.

Painting

Sand blasting before painting;

one coats of primer, anti corrosion

two coat of finish painting;

colour advised by client

Accessory

One box with a set of standard trailer tool
