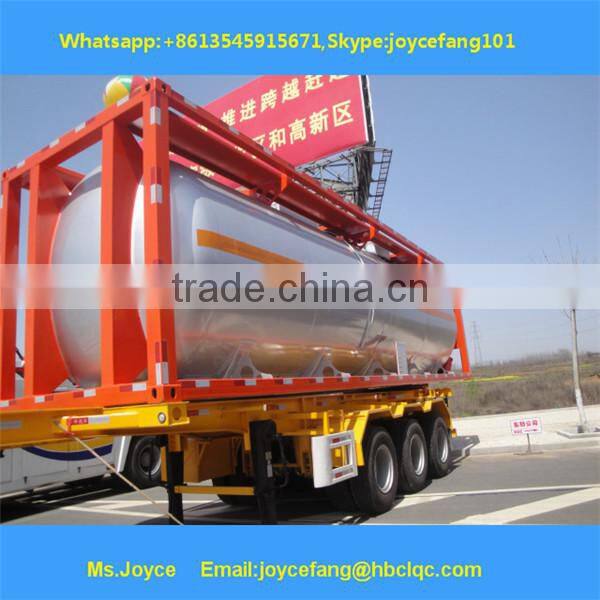

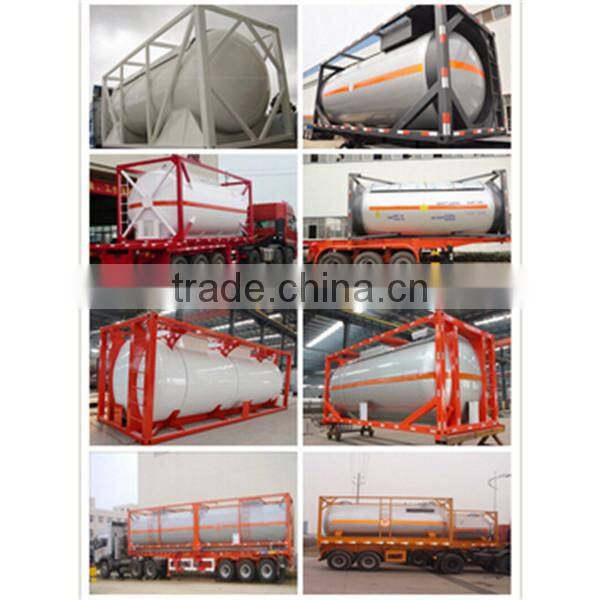

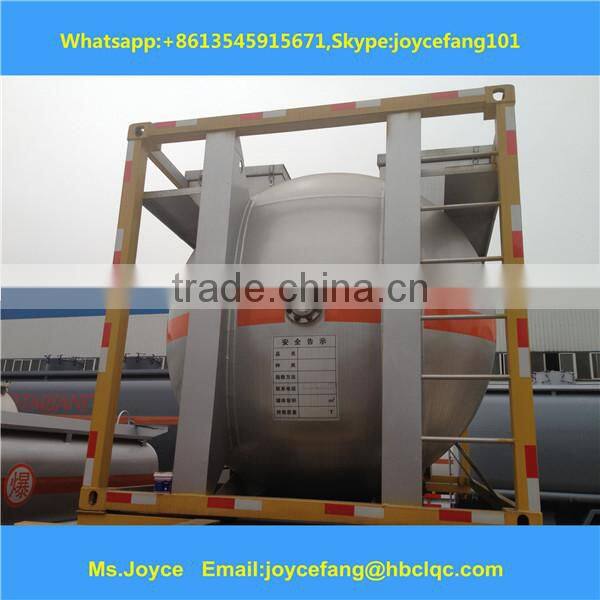

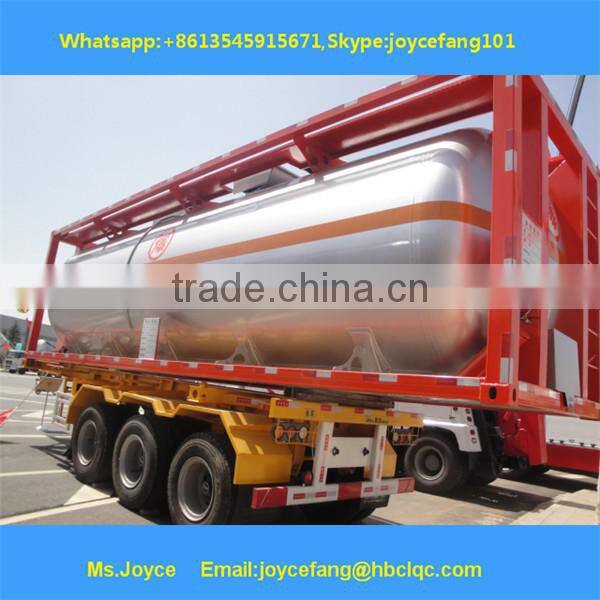

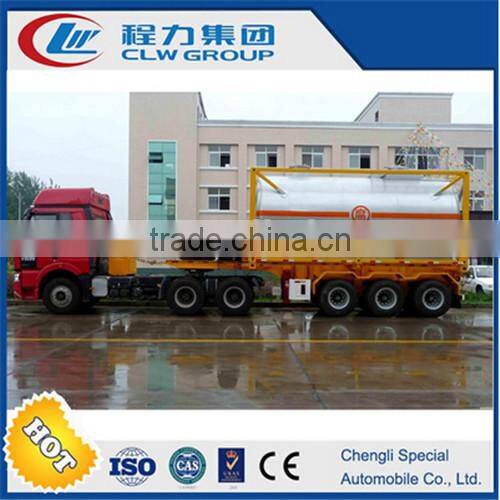

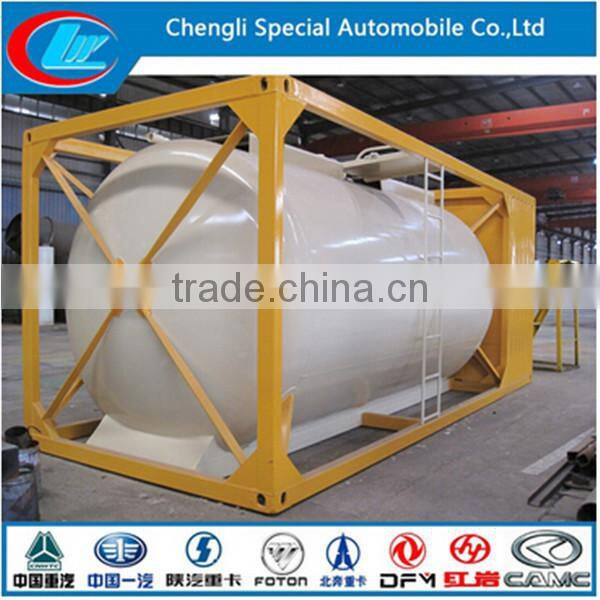

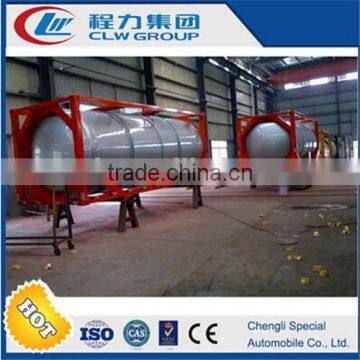

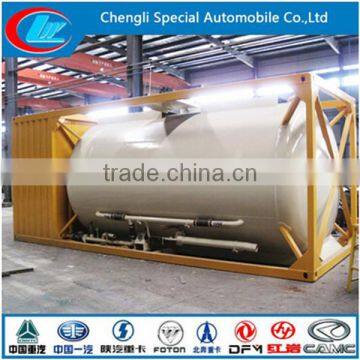

40ft Iso Propane Lpg Shipping Container

Volume (cbm)

DN (mm)

Thickness (mm)

Quality(kg)

Overall Dimension(mm)

Shell

Head

Tank

Filling

Filling Mediumliquid amonia

Pressure2.05MPa

Corrosion Allowance2mm

Medium Density520kg/m2

20

2100

16

16

6400

9880

6162x2132x2710

25

2100

16

16

7760

12350

7762x2132x2710

32

2400

16

16

8920

15808

7516x2432x3010

50

2400

16

16

13100

24700

11516x2432x3010

50

2800

20

20

14470

24700

8620x2840x3420

80

2800

20

20

20980

39520

13520x2840x3420

80

3200

22

22

21710

39520

10524x3244x3830

100

2800

20

20

26010

49400

16740x2840x3420

100

3200

22

22

26190

49400

13024x3244x3830

Filling MediumDimethylether

Pressure1.15MPa

Corrosion Allowance1.5mm

Medium Density580kg/m2

50

2700

10

12

8620

27550

9174x2724x3310

65

2700

10

12

10480

35815

11824x2724x3310

80

2700

10

12

12280

44080

14454x2724x3310

80

3200

12

12

13080

44080

10504x3224x3810

100

3200

12

12

15560

55100

13004x3224x3810

120

3400

12

14

17940

66120

13808x3424x4010

Material of tank and main pressure parts

Q345R/Q370R

Standard

GB150 TSG R0004-2009

Safety valve of selection fitting

Safety valve, column magnetic reversible level meter, pressure gauge, thermometer, cut-off valve

Tank

Total Volume(m3)

25CBM

Tanker Body Material

Q235A/5mm

End plate

Q235A/6mm, by punching

Parts for Tank

Tanker Shape

Round section tanker body. All tankers are designed to suit sea transportation requirement.

Inside Painting

Anticorrosive plastic coating thickness 16mm

Manhole cover

Aluminum alloy API manhole cover, Φ 500mm ,2 sets with 2 breather valves

Bottom Valve

1-2 sets of Aluminum API Pneumatic Bottom Valve

Discharging valve

2-4 set Φ 100mm discharging valves

Discharging Pipe

4”rubber hose, 2 pcs, 6m long
