8000l High-pressure Cleaning Truck
- any port in china
- T/T
You May Like
-
40ft Iso Propane Lpg Shipping Container
-
Bottom Loading Aluminum Fuel Tanker 42,000liters (SASO-2288/2809)
-
Dongfeng Asphalt Distribution Truck / 4x4 Asphalt Distributor Truck / Dongfeng Bitumen Sprayer 5m3
-
6x4 Lpg Tank Truck,Lpg Trailer Truck,Lpg Storage Tank Truck
-
2008 Hyundai Mixer Truck With Construction Concrete Pump,9m3 Hyundai Hd270 Truck
-
100m3 Tank Lpg Storage Tanks,lpg Tank Iso Container
Product Details
| Condition | New | Transmission Type | Manual | |
| Emission Standard | Euro 3 | Fuel Type | Diesel | |
| Dimensions (L x W x H) (mm) | 5500*2330*1440 | Gross Vehicle Weight | 25000 | |
| Place of Origin | Hubei, China | Brand Name | Dongfeng | |
| Model Number | Clw7115GYY3 |
Product Description
8000l High-pressure Cleaning Truck
The high-pressure water circuit of the road washer adopts the pneumatic actuator to control the high-pressure ball valve switch, and the auxiliary air tank at the chassis is used for air supply, which is environmental protection and energy saving and at the same time it is able to avoid secondary pollution due to oil leakage by using the hydraulic cylinder control switch.
Features:
1.Main material of tank use Q345 steel,high strength,compared with ordinary steel materials,under the same thickness increase 60% strength than ordinary low carbon steel;Tank use epoxy anti-corrosion material handling,
great corrosion resistance, greatly extending the life of tanker.
2.Using Hangzhou Veyron sprinkler pumps,with characteristics of output power
and high pressure .
3.Sprinkler system install manual valves and pneumatic valves,both manual and automatic control can be used,tank Install alarm system of
low water level to prevent damage to the pump because of water shortage.
4.Tank is equipped with a spacious rear platform, people can operate on thestage, the use of high-pressure spray gun with a long-range, can do long-range spraying operations,High pressure spray gun nozzle can be achieved
by manually adjusting the water column, mist spray, mist,heavy rain and
light rain to meet different needs.
high-pressure water system:
Before cleaning device’s cleaning width 2.5m ~ 3.5m, we can control, when the adjustable spray rod shrink, to achieve enhanced the dual water wash.
Using natural gas vice engine to drive high pressure pumps and working device hydraulic system, high pressure cleaning speed can be controlled at will.
Liquid, gas central control, has good man-machine interface, operation can be
convenient and flexible.
Use of international brand-name high-pressure pumps, reliable performance,
long life, ensuring the cleaning effect; inlet nozzle, jet stability, low pressure loss.
Using modular combination design, implement a variety of cleaning functions and auxiliary work function, a multi-purpose machine.
Spray on left and right angle is suitable for efficient water-saving ground pavement,
curbs, guardrails isolation belt, sidewalks.
High pressure spray gun not only can be use clear signs, billboards, etc.; but also can spray dust,adjust air humidity and spray air disinfectant.
The high-pressure water circuit of the road washer adopts the pneumatic actuator to control the high-pressure ball valve switch, and the auxiliary air tank at the chassis is used for air supply, which is environmental protection and energy saving and at the same time it is able to avoid secondary pollution due to oil leakage by using the hydraulic cylinder control switch
Item | Clw7115GYY3 high pressure cleaning truck | |
Chassis model | DFL1250A8/DFL1250A11 | |
Engine type | ISDe245 30/ ISDe245 40 | |
Engine power(kW) | 180 | |
Emission standard | State 3/ state 5 | |
Dimension(mm) | 10930X2490X3030 | |
Wheel base(mm) | 4350+1300 | |
Curb weight(kg) | 11600 | |
Overall weight(kg) | 25000 | |
Dimension of the tank(mm) | 5500X2330X1440 | |
Max. speed(km/h) | 90 | |
Washing width(m) | 2.5-3.5 | (optional) |
Washing speed(km/h) | 3-20 | |
Max. water pressure(MPa) | 13 | |
Water volume(L/min) | 153 | |
Rated volume of the tank(L) | 18000 | |
Spraying lift(m) | 90 | |
Spraying width(m) | ≥24 | |
Water volume(L) | 400-800 | |
Water range(m) | ≥36 | |

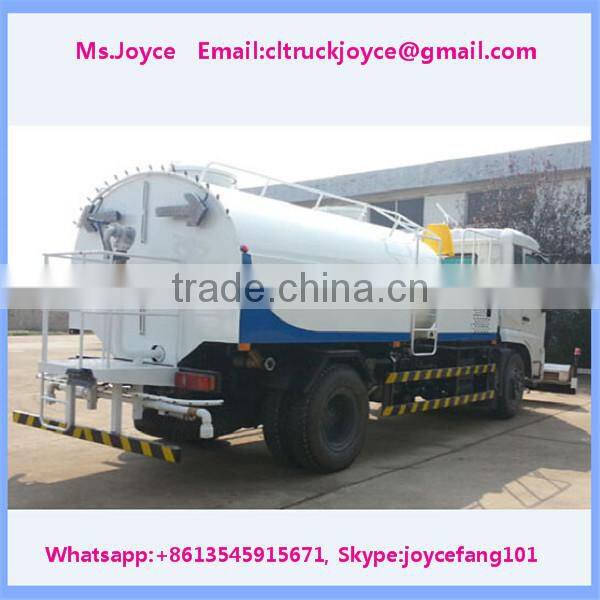

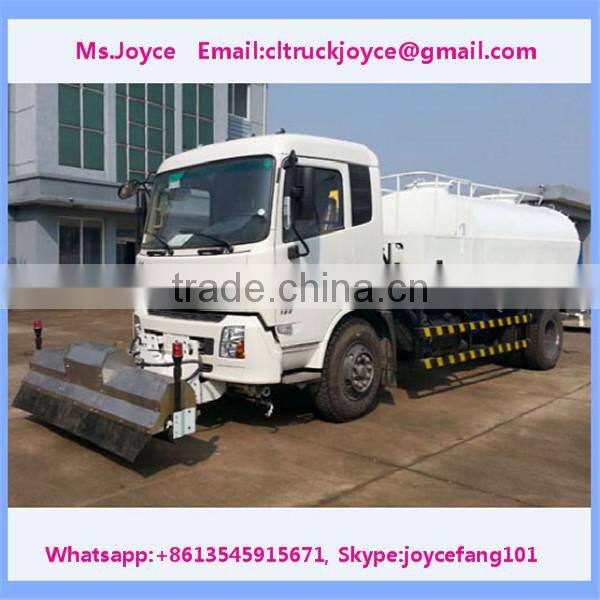

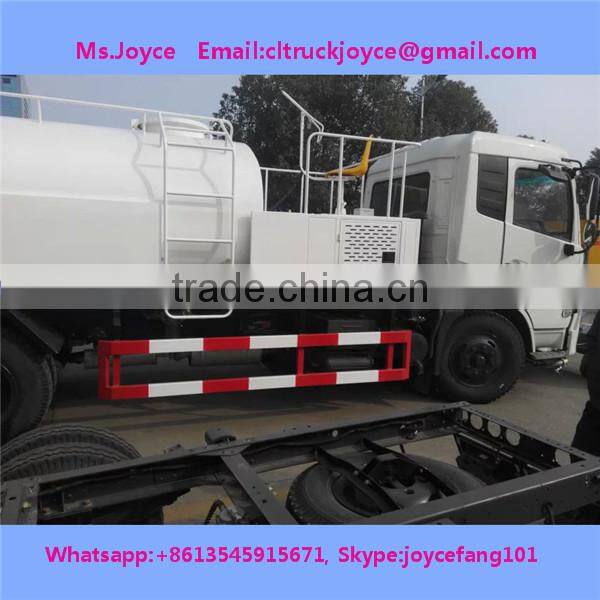

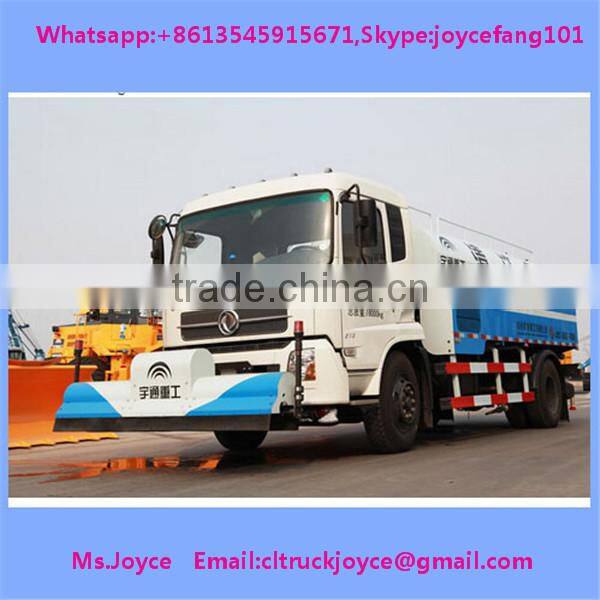

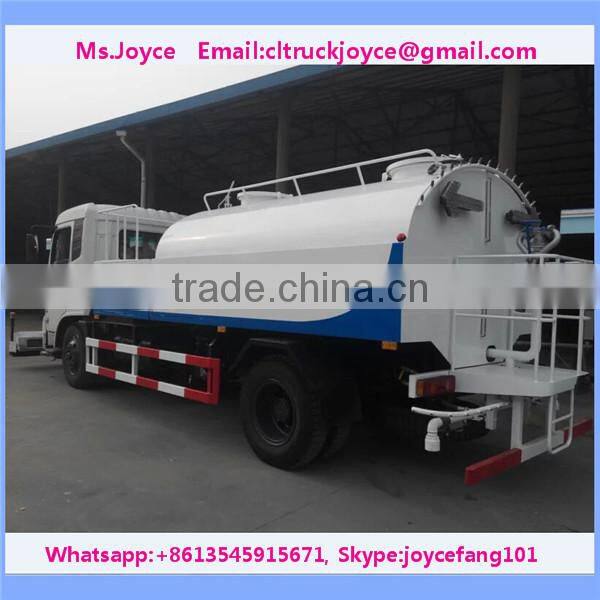

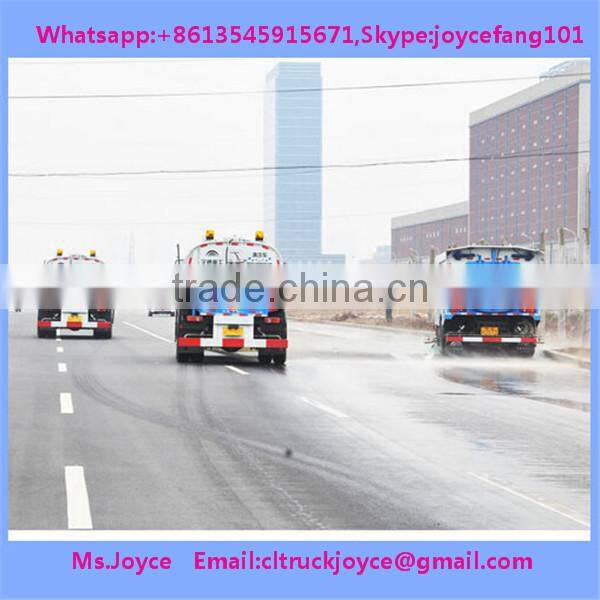

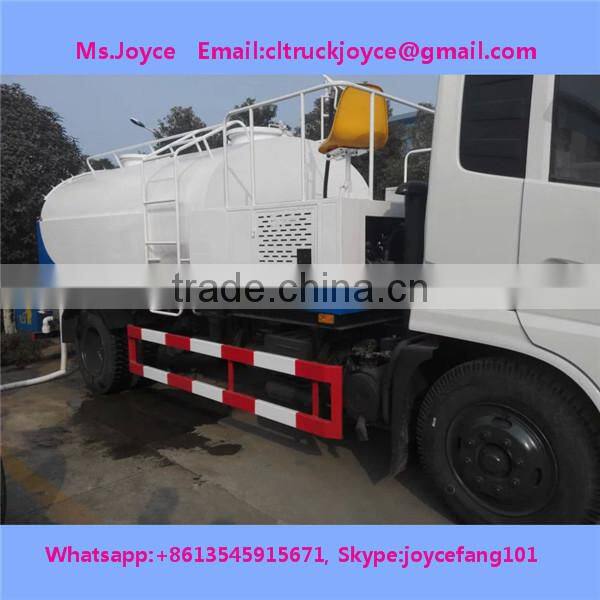

2.dongfeng high pressure cleaning truck images:
More details of high pressure cleaning truck :
CLW road cleaning truck,street sweeper truck,high pressure cleaning truck brand : Dongfeng, Foton,Howo, Jac, Faw, Sinotruk, etc.
High pressure cleaning truck,Street Sweeper Truck,Road cleaning truck, road washing truck, road sweeper truck, water truck ,garbage truck manufacture : Chengli Special Automobile Co.,Ltd
