Home > Products > LPG tanker > 40tons bulk lpg storage tanks
40tons bulk lpg storage tanks
USD $10,000 - $40,000
/ Unit
1 Unit(Min. Order)
- any port of china
- T/T
You May Like
Product Details
| Condition | New | Capacity | 5~120 m3 | |
| Place of Origin | Hubei, China | Brand Name | CLW | |
| Model Number | CLW | Dimension(L*W*H) | 13020*3240*3740 | |
| Weight | 22901 | Certification | CCC, ISO | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

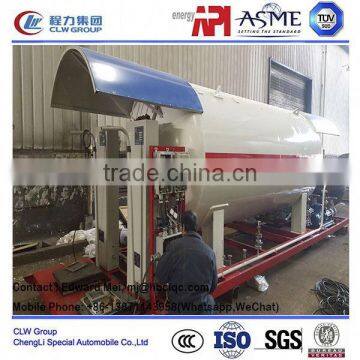

40tons bulk lpg storage tanks
LPG,liquid pressure gas,which is made from oil.The main gas is propane,Isobutane.
Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.
The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
The LPG tank truck with the volume from 5~35 m3.
Product Description
40tons bulk lpg storage tanks
Main specification
40tons bulk lpg storage tanks
| Item | Unit | Specification | |||||||
| Loading object | CLW25-12-12 | ||||||||
| Material | Propane Gas | ||||||||
| Designed loading Parameter | Option | Q345R, 16MnIII, Q370R | |||||||
| Kg/m3 | 420~ 500 | ||||||||
| Dimension | mm | 7594*2124*2714 | |||||||
| Net Weight | Kg | 24960 | |||||||
| Designed Pressure | Mpa | 1.77 | |||||||
| Max Working Pressure | Mpa | <=1.6 | |||||||
| Designed Temperature | C | -20~50 | |||||||
| Volume | m3 | 25 | |||||||
| Body thick | mm | 12 | |||||||
| Cover thick | mm | 12 | |||||||
| Man Hole | mm | 450 | |||||||
| Top Safety Valve Port | mm | 80 | |||||||
| Life Year | Year | 10 | |||||||
| Input and output | |||||||||
| Liquid input Port | mm | DN50 ( 2 Inch) | 2.5Mpa | ||||||
| Liquid Output Port | mm | DN50 (2 Inch) | 2.5Mpa | ||||||
| Bottom Air gas input Port | mm | DN50 (2 Inch) | 2.5Mpa | ||||||
| Waste Liquid Output Port | mm | DN50 (3 Inch) | 2.5Mpa | ||||||
| Top Gas Let Out Port | mm | DN50 (3 Inch) | 2.5Mpa | ||||||
| Liquid Level Indicator Port | mm | DN20 | 2.5Mpa | ||||||
| Essential Device for option | |||||||||
| Safety Valve, Temperature Gague, Pressure Gauge | |||||||||
| Option~ flange | |||||||||
| Production Standard | |||||||||
| China GB 150 Pressure Vessel Manufacturer Standard, Or ASME Standard | |||||||||
| Designed Valid Year, at least 10 year | |||||||||
