45-60cbm lpg tank trailer
- Shanghai or Tianjin
- T/T
You May Like
Product Details
| Type | Semi-Trailer | Material | Steel | |
| Certification | Other, CCC,ISO | Size | 13000*2500*3990 | |
| OEM No. | 11111 | Max Payload | 15300 | |
| Place of Origin | Hubei, China | Brand Name | CLW | |
| Model Number | CLW |
Product Description

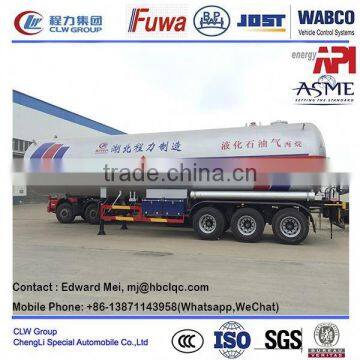

45-60cbm lpg tank trailer
LPG,liquid pressure gas,which is made from oil.The main gas is propane,Isobutane.
Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.
The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
The LPG tank truck with the volume from 5~35 m3.
As the production standard, Currently we mainly produce it according to the Chinese GB150.
However, we also could produce it according to the ASME standard.
45-60cbm lpg tank trailer
45-60cbm lpg tank trailer
Item | Unit | Parameter | ||||||||
Model | CLW9408GYQ~ Propane Gas | |||||||||
Volume | m3 | 58.5 cubic meter | ||||||||
Dimension | mm | 13000*2500*3990 | ||||||||
Tank dimension | mm | 12850*2396 | ||||||||
Curb Weight | Kg | 15300 | ||||||||
Axle Number | Unit | 3 Units | ||||||||
12 ton BPW Axles, | ||||||||||
Wheel Base | mm | 7160+1310+1310 | ||||||||
Tire / Number | Units | 12.00 R20 / 13 Units | ||||||||
Spring plate | Units | -7/7/7 | ||||||||
Saddle | 90# | |||||||||
Tank Material | mm | 16mm thick Q345R | ||||||||
Designed Pressure | Pa | 1.77 Mpa | Designed Temperature | ~19~50 °C | ||||||
Corrosion | mm | 1mm | Loading parameter | 0.42 T/m3 | ||||||
Remark: | Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage, Urgent cut off valve, Valve box, Fire extinguisher, plastic pipe of staticproof, Well-secured fenders and mudguards, Tire well-secured, fenders and mudguards. Tool box for two side. | |||||||||
Manufacturer Standard | China GB150-1998 Pressure vessel , Pressure vessel safety supervise law. | |||||||||
45-60cbm lpg tank trailer
45-60cbm lpg tank trailer
Materials rolled into tank, Q345R, Q370R, 16MnIII,
Water Pressure testing.
Tank heating testing room.
X-ray testing for the tank side cover welding.
-----------------------------------------------------------
Manufacturer Standard: GB150, China. which is stricter than ASME standard.
We also could produce the product according the ASME standard.
-----------------------------------------------------------
Certificate: CCC, ISO, BV, which is showing on our website.
-----------------------------------------------------------
Welcom for you inquiry.
...
