China Truck Manufacturer, Dump Truck Curb Weights
US$ 10,000 - 40,000
/ Unit
1 Unit(Min. Order)
- any port of China
- T/T
You May Like
-
IVECO 25 Tons Camion Dump Truck, 15 Cbm Camion Tipper Truck, IVECO 10 Wheels Heavy Duty Dump Truck.
-
China Dump Truck Supplier, rc Dump Trucks for Sale
-
Dump Truck Supplier, Hino Heavy Duty Dump Trucks
-
Dump Truck Supplier, 20 Cubic Dump Truck
-
Dump Truck Exporter, Dump Truck Jac 6x4
-
Dump Truck Manufacturer, Agricultural Dump Truck
Product Details
| Drive Wheel | 6x4 | Capacity (Load) | 21 - 30t | |
| Horsepower | 251 - 350hp | Condition | New | |
| Transmission Type | Manual | Emission Standard | Euro 3 | |
| Fuel Type | Diesel | |||
| Gross Vehicle Weight | 11905 | Brand Name | CLW | |
| Model Number | CLW | Dimensions (L x W x H) (mm) | 8250*2490*3350 |
Product Description

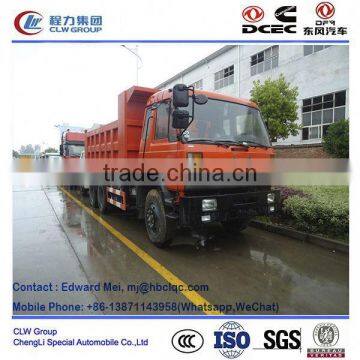

China truck manufacturer, dump truck curb weights
Dump truck, also called tipper truck, which mainly use for transporting cargo,sand,or garbage.
Currently the dump truck are most off road dump truck, another kind is articulated dump truck.
Dump truck design 4*2.4*4.6*2.6*4.6*6.8*4.8*6.8*8. road dump truck, mine dump truck.
Our company produce the dump truck with the loading capacity from 3 tons ~ 40 tons.
Product Description
China truck manufacturer, dump truck curb weights
| Item | Unit | Description | ||||||||
| Model | Dong Feng brand | |||||||||
| Dimension | mm | 8250*2490*3350 | ||||||||
| Sample Box Dimension | mm | 4800*2400*1600/ 15 CBM | ||||||||
| Curb Weight | kg | 11905 | ||||||||
| Load weight | kg | Around 20~30 tons,The hydraulic device is front-side designed. | ||||||||
| Wheel Base | mm | 3800+1350 | ||||||||
| F/R track base | mm | 1940/1860 | ||||||||
| F/R Axle-load | Kg | 7000/16000(Two 16 tons axles concatenation) | ||||||||
| Approach/Departure angle | . | 32/35 | ||||||||
| Traction system | 6X4 | Tire Specification/Number | 10.00R20 / 10 Units+1 Spare Unit | |||||||
| Max speed | 90 km/h | Number of axles/ability | 3 | |||||||
| Engine model | B210-33 | Emission/kw | 8300ml/191Kw, 210 Hp | |||||||
| Diesel , 6 cylinder, direct-line. Turbocharge and watercooling. | ||||||||||
| Engine Manufacturer | Dongfeng Commins Diesel Co.,Ltd | |||||||||
| Steering | Power | Transmission | 9F&1R | |||||||
| Cab passenger | 3 | Electric System | 24V | |||||||
| Drive system | Left hand or Right hand | |||||||||
| Air condition | Option | CD, Radio, | ||||||||
| Remark: | Option~if installed air condition. Box side is 6mm thick carbon steel plate, bottom is 8mm thick carbon steel plate.dump hydraulic cylinder device is Chinese brand. Option brand ~ installing HYVA brand dump hydraulic cylinder. | |||||||||
Company Information
Our company is a big and famous special function truck manufacturer in China, We produce many kind of trucks, water tank truck
oil tank truck, oil tank trailer.
Vaccum suction truck.
Garbage Truck
high platform working truck.
Dump truck.
concrete mixer truck, concrete pump truck.
Refrigerator truck.
Wrecker truck.
Road sweeper truck.
Chemical liquid transporting truck.
All kind of semi trailer.
LPG gas tank, LPG truck and trailer.
Fire fighting truck.
Welcome to your inquiry.
Company Certificate showing.
