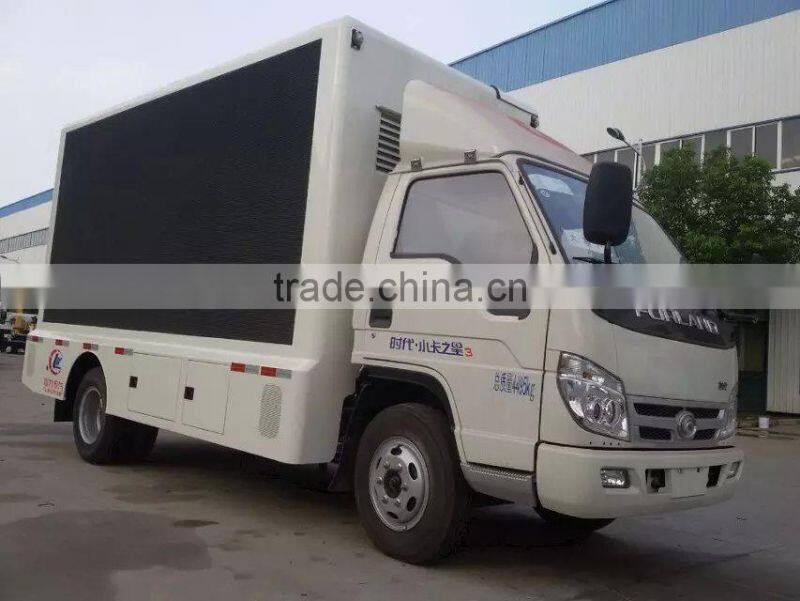

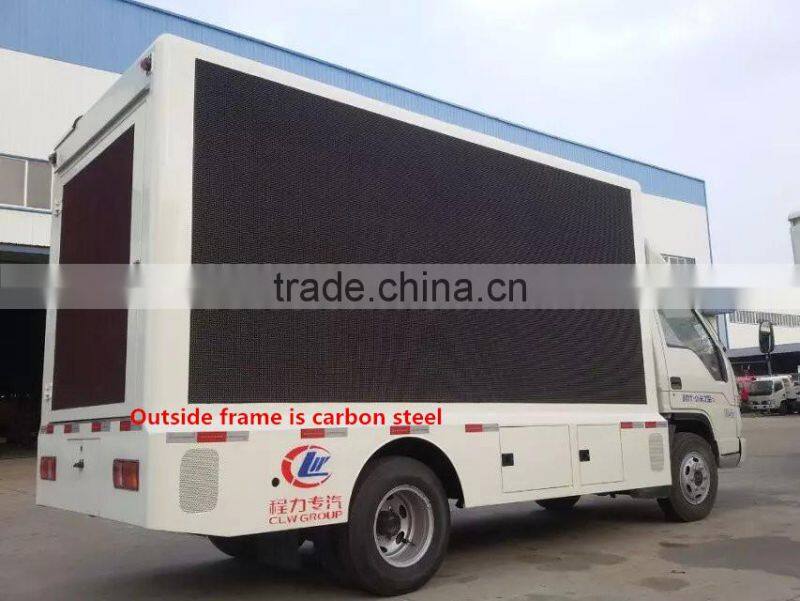

Led Advertising Truck Body With SLT Led Screen P8 For Customized

package

color

brand

specification

brightness

wavelength

quantity

146

R

Epistar

9mil

730-800

622-627

1pcs

G

Epistar

8*10mil

900-1000

520-525

1pcs

B

Epistar

8*10mil

230-260

463-468

1pcs

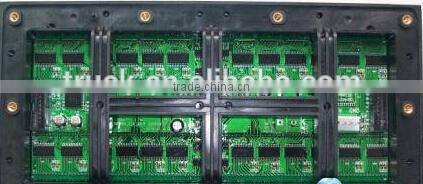

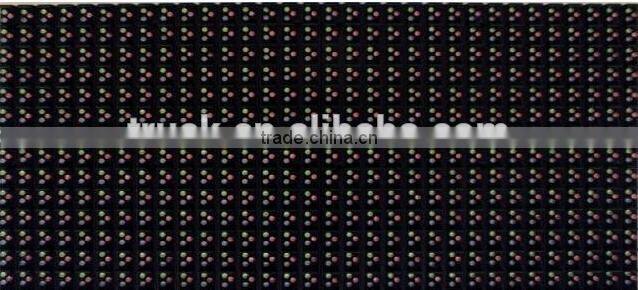

Module technical parameters

Like numbered spacing

8.0mm

pixel density

15625Dots/m2

Pixel composition

1R1G1B

Module Resolution

32*16=512Dots

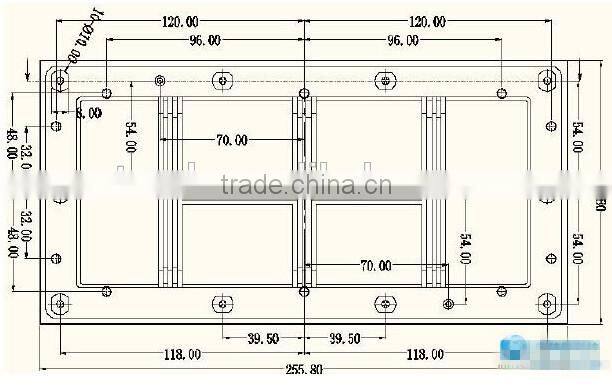

Size(L*W*thickness)

256.0*128.0*25.0mm

Weight

0.6kg±0.05kg

design feature

Lamp drive

Kit material

PC polycarbonate material

Input voltage (DC)

4.8-5.5V

Max Current

6A±0.1A

Module power

≤30.0W

Drive mode

1/4Dynamic constant current drive

Body technical paramters

Standard conventional box frame (L*W*thickness)

1024mm*768mm*95mm

Box resolution

128*96=12288Dots

Panel area

0.786m2

Box weight

30kg±0.05 kg

maximum power dissipation

750w

average power

350w

Led technical parameters

light intensity

≥8000cd/m2

luminance uniformity

>0.95

Screen level perspective

100±8 degree

Screen vertical angle

70±5 degree

Option distance

≥8.0m

Malfunction dot rate

Less than 3/10000

maximum power dissipation

≤1000W/m2

Environment

Outside

System control parameters

grey scale

Red,green,blue:12-16bits of each

display color

16777216

Frame Rate

≥60 Frames per second

Refresh Rate

≥1400Hz(Full gray field)

Control type

Computer control, point by point one one, video synchronization, real-time display

Brightness adjustment

256 stage manual / automatic

Input signal

DVI/VGA,Video (multiple formats)

RGBHV,Composite video signal,S-VIDEO
YpbPr(HDTV)

System operating characteristics

Service life

≥100000 hours

Average no fault time

≥1Million hours

Attenuation rate (3 years)

≤15%

Continuous control point

0

Discrete control point

<0.0001,For the factory 0

Blind spot rate

<0.0001,For the factory 0

Operating temperature range

-20~50℃

Working humidity range

10%~90%RH

Protective performance

Over temperature / overload / drop / image compensation / various correction techniques / over current / over voltage / lightning protection (optional)

Guarantee period

One year free return to factory maintenance (specific to the purchase and sale contract signed)

Screen level

<1mm/m2

Vertical screen

<1mm/m2
