2016 Durable Customized Design Water Tank Truck
- 500 Unit / Units per Month
- any port of china
- T/T
You May Like
-
Truck Mounted Type Bitumen Sprayer (distributor ) Capacity 6000L
-
New Dongfeng Double Cab 6ton Foam Water Fire Fighting Truck For Sale
-
Led Advertising Truck Body With SLT Led Screen P8 For Customized
-
20t Mobile Crane Truck,Clw Truck Mounted Crane,Truck With Crane
-
Dfac Euro3 Fuel Tank Truck,2000-5000l Dry Fuel Truck
-
Howo 32m fire truck with aerial ladder, Sino fire sprinkler truck
Product Details
| Drive Wheel | 4x2 | Fuel | Diesel | |
| Transmission Type | Manual | Condition | New | |
| Sprinkling Area (m) | 12 - 16m | Emission Standard | Euro 3 | |
| Engine Capacity | 6 - 8L | Tank Volume | 5001 - 10000L | |
| Dimensions (L x W x H) (mm) | 8200*2460*3000 | Brand Name | Dongfeng | |
| Place of Origin | Hubei, China | Model Number | CLW5160GSS2 | |
| Gross Vehicle Weight | 16000 | Certification | CCC,ISO,BV | |
| Warranty | One Year | After-sales Service Provided | Overseas third-party support available |
Product Description

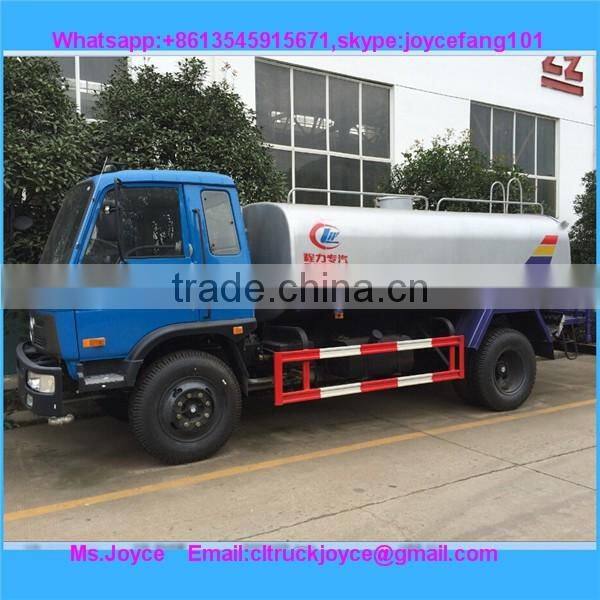

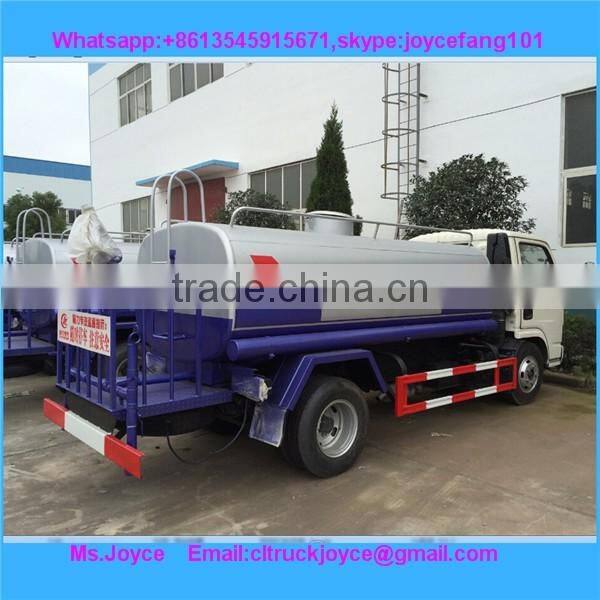

2016 durable customized design water tank truck
We are manufacture of water tank trucks more than 10 years.
1. 3C, ISO 9001
2. Sprinkle area:width>14m,range>35m
3. 4x2 Drive type, LHD, RHD
Water tank truck which is widely used in greening, sanitation, agriculture, fire fighting etc.
It is usually equips with working platform, high pressure gun and high power sprinkler water pump.
Detail specification of the 2016 durable customized design water tank truck as below:
Item | unit | Parameter | |
Vehicle model |
| CLW5160GSS2 | |
Chassis model |
| DFL1160BX4 | |
Horse Power | hp | 210 | |
Overall dimensions | mm | 8200X2460X3000 | |
Fact cubage | L | 10100 | |
GVW | kg | Appro×16000 | |
Rated loading capacity |
| Appro×9620 | |
Curb Weight |
| Appro×6185 | |
Wheel base | mm | 4500 | |
F/R Truck base |
| 1430/2270 | |
F/R Wheel Track |
| 1880/1860 | |
Approach/departure angle | ° | 18/12 | |
Exhaust/hp | ml/kw | 6700/155 | |
Max speed | km/h | 85 | |
Tire specification | 10.00-20,10.00R20, 9.00-20,9.00R20 | Engine type | ISDe210 40 |
Traction system | 4*2 | Number of tires | 6 |
Number of axles | 2 | Axles load | 6000/ 10000 |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 |
Equipment | Equipped with front (rear, side) sprinkler (sprinkling width>14m ) Equipped with rear working platform with water cannon (range>35m) Equipped with Chengliwei pump(suction lift>8m) Spray water nozzle, with flow rate adjustment. 360 degree horizontal rotation. | ||
Production cycle | 10-15 days | ||
Warranty | 12 months | ||

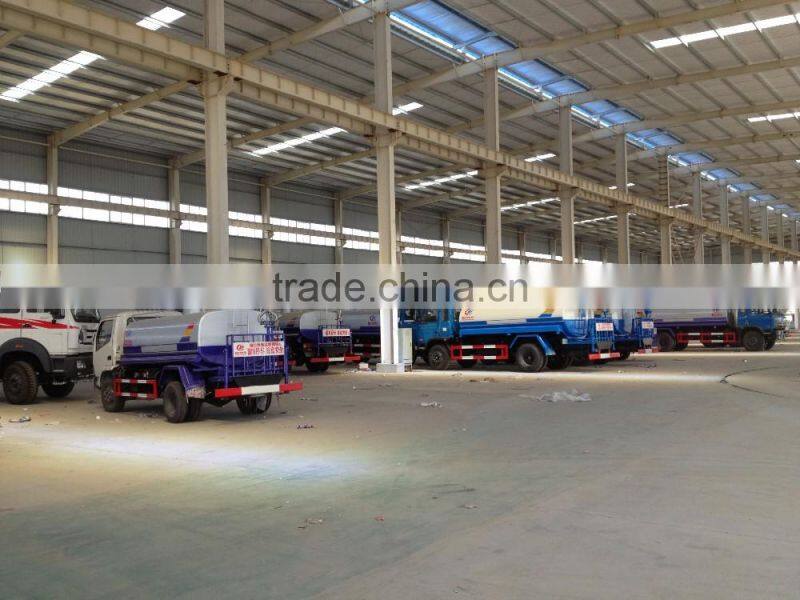

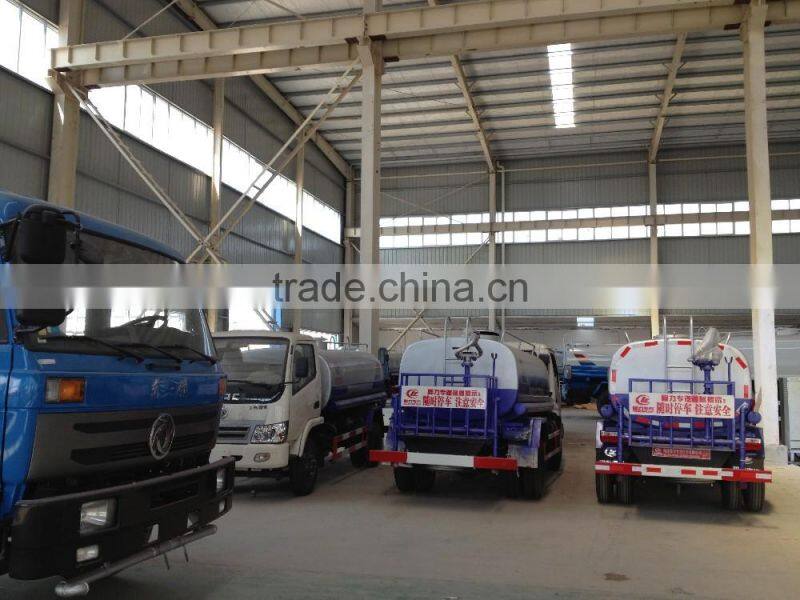

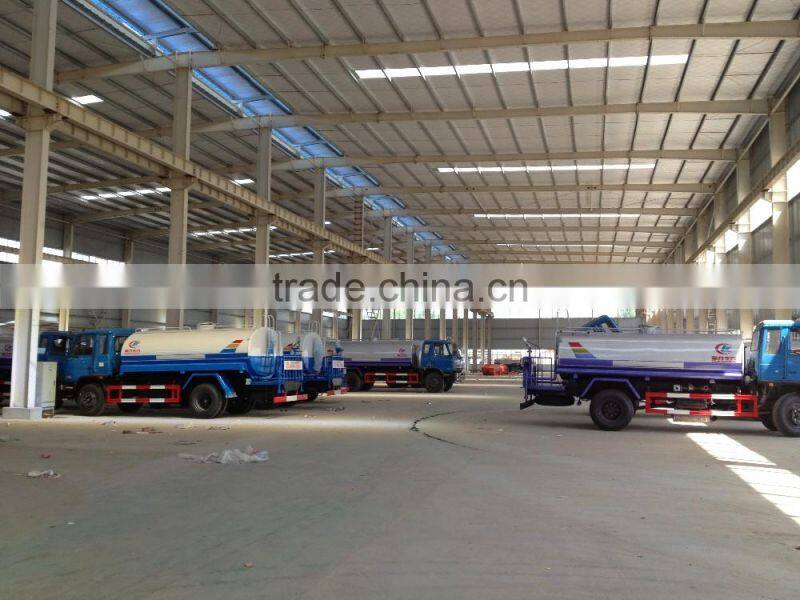

Chengli big workshop of water tank truck show :
We can manufacture water tank truck according to your request !!!
Water tank truck is shipped by bulk, ro-ro or container !
Water tank truck manufacture:Chengli special Automobile co.,Ltd
Our leading varieties include more than 300 types of trucks and tanks such as
1.Water truck 2.Fecal suction truck 3.Garbage truck
4.Sewage suction truck 5.Fuel tank truck 6.High altitude operation truck
7.Truck with crane 8.Dump truck 9.Instructional truck
10.Van truck 11.Semi-trailer 12.Fire engine, Spares
13.Refrigerator truck 14.Water wagon 15.Tractor
16.High-altitude water truck 17.Bulk cement tank truck 18.Chemical liquid tank truck
19.Concrete mixer truck 20.Led advertising truck 21.Bulk cement tank semi trailer
Chengli group ~ China top 500 private manufacturing enterprises
1.Pament terms:
30% T/T payment in advance,70% to be balanced before delivery from Shanghai port.
2.MOQ: 1set
3.Contact me :
More details of water tank truck, please contact me as below :
Contact Us
- Chengli Special Automobile Co., Ltd.
- Contact namePeter Yu Chat Now
- Phone86-27-0086-13871143958
- Address3104 Room,7th building,fanhai Soho district, Wuhan City, Hubei Province, Suizhou, Hubei
