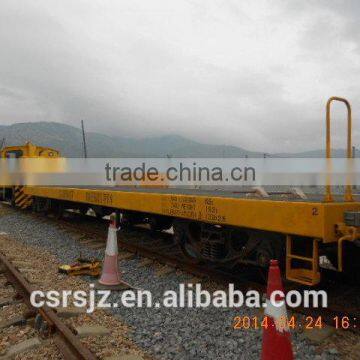

Works Flat Wagon

The E&M works flat wagon is used o 1435mm gauge railway with UIC/CHN 60 steel railw. It will transport the installation material of electrical andmechanical equipment used for railway construction and routine maintenance.

1. Leading dimensions:

The length of underframe (mm)                                                                                 13000

The heigh of coupler cnetr line above rail ( unloaded)(mm)                                          880

The distance beween top surface of underframe to top of rail( unloaded) (mm)         1100

Wheel diameter  (mm)                                                                                                   840

2. Main structure

 The E&M works flat wagon mainly consists of underframe, bogie, braking system, coupler and draft gear, electrical device, locking device, handrail and steps etc.

2.1. Underframe

The finished underframe is perfectly square without any twist in horizontal plane or negative camber when carrying fully loaded container.

 and is strong enough to withstand a minimum ending buffing force of 150 metric tons and/or a minimum traction force of 100 metric tons or all dynamics impact loads without developing any permanent deformation.

2.2. Locking device

 The twist lock  is assembled for securing the ISO 20ft  or 40ft containers.

2.3. Braking system.

The Chinese, UIC and AAR standard automatic air braking system  could be used.

 The NSW hand brake machine is assembled too.

2.4. Coupler and draft gear

 Automatic coupler conformed with AAR standard is assembled.

2.5. Bogie

The bogie frame shall be of casting or fabricated type and made from the best quality steel.

2.6. Electrical device

 The electrical device could supply the power to the machine loaded on works flat wagon.

2.7. Handrail and steps

 The handrail and steps could be used for the safety of workers.

3. Guaratee period: 12 months after commissioning on site.

    Service lift: 25 years.

4. Spare parts and technical training will be provided for free.
