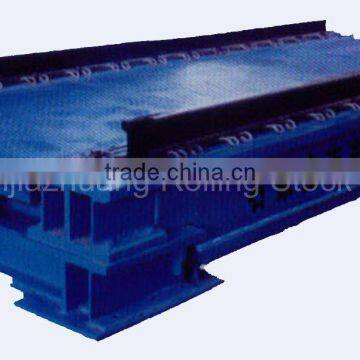

dynamic electric track scale
- 20 Set / Sets per Month
- xingang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | JC | |
| Model Number | as following | Type | Floor Scale | |
| Power Supply | as following | Display Type | as following | |
| Rated Load | as following | Accuracy | as following |
Product Description
Specifications
The track scale is advanced to measure the weight of railway vehicles. It is suitable for power plant, petrochemical-works, mineModel and Specification:
Model | GCU-100DB | GCU-150DB | GCU-200DB |
Max capacity (t) | 100 | 150 | 200 |
scale interval(kg) | 50,100 | 50,100 | 50,100 |
Number of platform | Single/double | Single/double | Double/ triple |
Class of Accuracy | 0.2~0.5 | 0.2~0.5 | 0.2~0.5 |
The requirement of control room: should be 10oC~30oC, relative humidity not more than 90%RH, without dust
The speed of weighing:
Rail non- connecting type: 3-20km/h,passing speed 30km/h.
Rail connecting type15-40km/h, no limit on passing speed.
Scale method: available for bidirectional measurement.
Output method: indicating the number, speed, weight of wagons by computer, printing lists, storing as well as analyzing.
Operating voltage: 220VAC-15-10%,50±2Hz.
Working condition: the temperature should be -45oC~+75oC, relative humidity ≤90%RH.
Scope of application
Measuring and calculating the weight in iron-works, electric power plant, petrochemical-works, mine, vehicle station, port, railway freight yard and special line and so on.
Contact Us
- CRRC Shijiazhuang Co., Ltd.
- Contact nameTieming Zhang Chat Now
- Phone86-311-87637825
- AddressNo.125, Rolling Stock Works Front Street, Shijiazhuang, Hebei
