Home > Products > New Products > Rotary powder vibrating sifter for ceramic industry

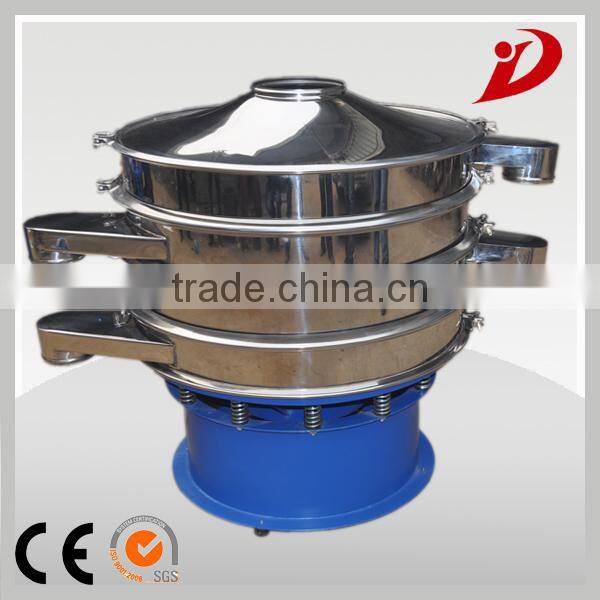

Rotary powder vibrating sifter for ceramic industry

FOB Price

USD $1,500 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Shanghai Qingdao or other ports
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Circular
Application	Other, Chemicals, ceramic powder vibrating sifter	Place of Origin	Henan, China
Brand Name	DY	Model Number	DY-1000-1S
Voltage	optional	Power(W)	0.75kw
Dimension(LWH)	13601360980	Weight	160Kg
Certification	ISO9001:2008 CE	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Wooden case or as your require

Product Description

Features of rotary vibrating sieve:

1. High efficiency, refined design, duration, any powders and mucilage are suitable for using.
2. Standard vibrating screen has Good sealing property. Frame have a dedicated connection with rubber, fastening with a locking band. Dust does not spill. It can get nationalenvironmental standards.
3. Easy to operate, impurities and coarse materials can be discharged automatically, continuous operations.
4. Can screen very fine powder down to 500 mesh. the most fine powder it filter is 5 micron.
5. Standard vibrating screen has Unique net rack design. Sieves can exchange easily in order to reduce staff’s maintenance time.

Working principle of rotary vibrating sieve:

The basic principle of Vibration screening filter is the heavy hammer (unbalanced heavy hammer) installed in the electrical axis transform the motor’s rotary motion into horizontal, vertical, tilt motion (three-D movement) , then this movement passed to the screen surface. Adjust the upper and lower ends of heavy hammer’s phase angle, this can change the trajectories of materials on the screen surface.

Application of rotary vibrating sieve:

1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

Technical parameter:

Model

Power(kw)

Valid Diameter of screen(mm)

Volume(mm)

Layers

DY-400-1S

DY-400-2S

DY-400-3S

0.18kw

320mm

580*580*560

580*580*660

580*580*760

DY-600-1S

DY-600-2S

DY-600-3S

0.55kw

550mm

800*800*680

800*800*780

800*800*880

DY-800-1S

DY-800-2S

DY-800-3S

0.75 kw

750mm

900*900*780

900*900*930

900*900*1080

DY-1000-1S

DY-1000-2S

DY-1000-3S

1.5 kw

950mm

1160*1160*880

1160*1160*1030

1160*1160*1180

DY-1200-1S

DY-1200-2S

DY-1200-3S

1.75 kw

1150 mm

1360*1360*980

1360*1360*1160

1360*1360*1360

DY-1500-1S

DY-1500-2S

DY-1500-3S

2.2 kw

1450mm

1850*1850*1130

1850*1850*1330

1850*1850*1550

DY-1800-1S

DY-1800-2S

DY-1800-3S

2.2 kw

1750mm

2200*2200*1360

2200*2200*1460

2200*2200*1680

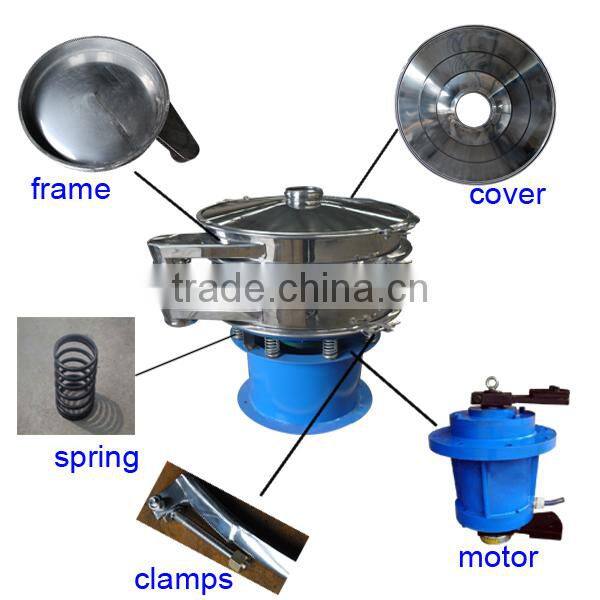

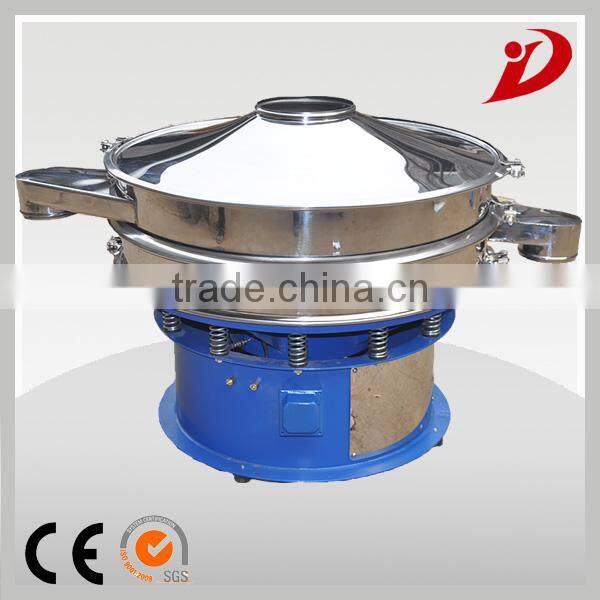

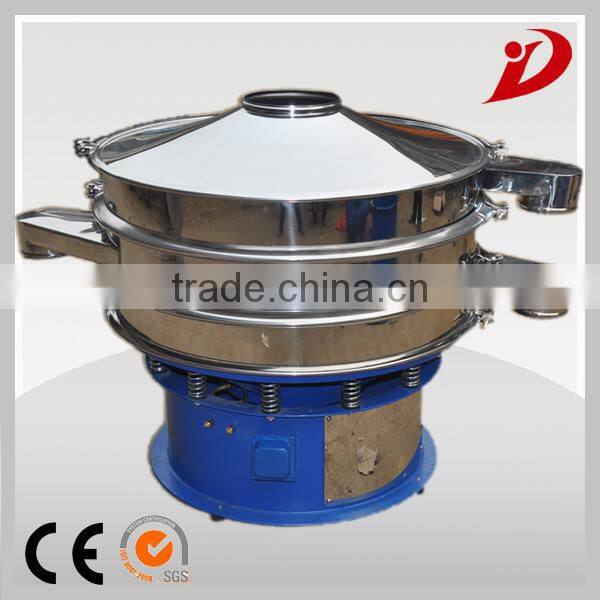

Picture show:

Packaging & Shipping

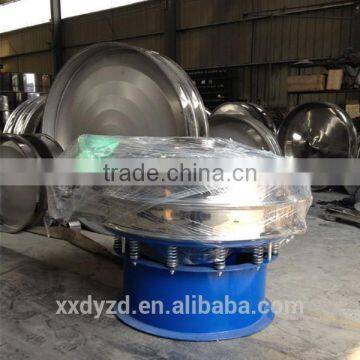

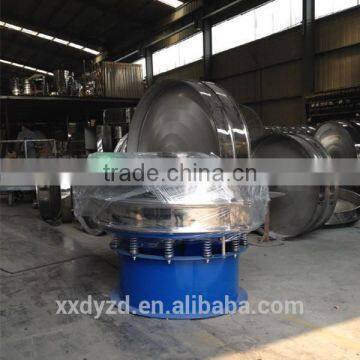

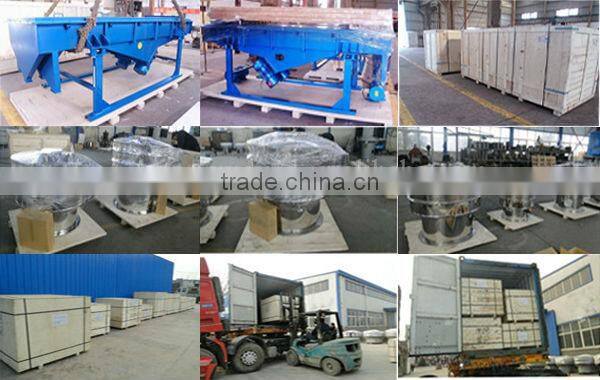

Packing picture:

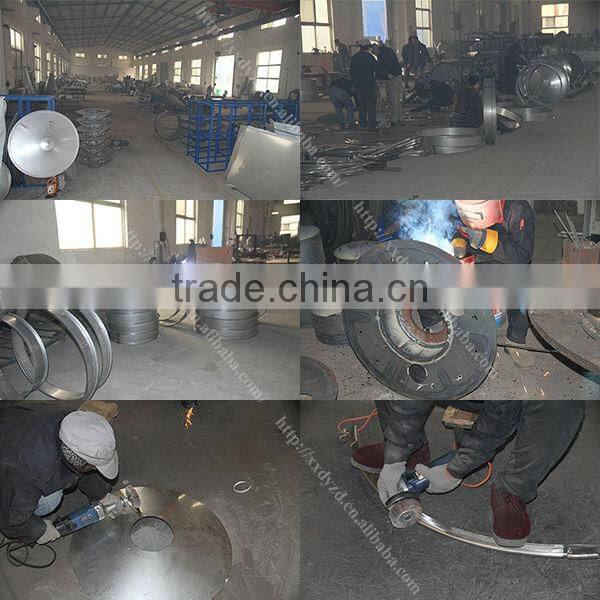

Company Information

Dayong vibration equipment for many years the vibration of the manufacturing machinery, mining machinery throughout the country.We insist on focusing on the leading advanced technology of screening and filtering.Our production is famous for advanced design, precise manufacture, stable quality and reasonable price. We are expecting to establish a long-term and win-win business relationship with the customers.

Our Services

Payment:

1.Trade Terms:FOB,CIF;
2.Payment:T/T,L/C,Western Union,Escrow;
3.Port: Shanghai;Qingdao;Guangzhou;
4.Delivery Time:15-20 working days after receiving your payment;
5.Packing: Standard export package;
6.Shipping:By sea,by air,and by rail.

1. What it does?

a:Separate solids from liquids or segregate dry materials into various sizes.
2. How it works?
Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. and The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern.
3. Any self-cleaning devices on the sieving machine?
Yeah, Bouncing ball or Ultrasonic system could be installed.
4. How many kinds of material are supported?
A. All stainless steel (304, 316L)
B. All carbon steel Q235A
C. Contact part Stainless steel.
5. About the phase and the voltage?
A. single phase and three phase are both supported.
B. 110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ).
6. How long is the warranty?
The warranty is 12 month(except the wearing parts includes sealing strip, bounce ball and sieve mesh, etc.). Because different usage, the wearing parts will have different life.
7. OEM order and labeling services are supported?
Yeah, OEM order and labeling services are supported. And we seek global partners.

Contact us:

TEL: 86-373-3669005
Mobile:86-15090442314
Skype:live:roy.dayong

Fax: 86-373-3669006
Add: NO.538,Renmin Road, Xinxiang City
Henan Province, China
