Plantain Chips Making Machine

Fields of Application for Microwave Vacuum Drying

•Pharmaceutical Industry

•Food Industry

•Chemical Industry of Fine Chemicals

•Semi-Conductor Manufacturing

Advantages

As compared to conventional drying methods, microwaves penetrate into much greater depths. This so-called volume

heating has the following advantages:

1. a temperature gradient directed towards the surface, i.e. temperatures inside are higher than on the outside giving rise to a higher partial pressure that drives the evaporating liquid to the

surface

2. consequently, the superficial layer does not dry out completely and the surfaces remain permeable

3. the liquid evaporating inside the product is emitted through the pore structure of the solid material’s macro-capillary system, resulting in a high drying velocity

4. the heating of water and most organic solvents occurs

selectively - due to the greater dielectric losses of water as compared to the product to be dried

5. swift and thorough drying of moist products with low thermal conductivity

6. stationary drying of thick layers without frictional losses

7. high total efficiency of energy application

8. high-speed control of the energy transport

9. short processing times, i.e. suitable for automated manufacturing

Together with the appropriate vacuum drying technology

the following advantages for the product are available:

1. Low drying temperatures treat the product gentle

2. No oxygen attack for the product

3. Highly nutritious instant properties

4. Better flavour

5. Less hydroscopic final product

6. Minimal product losses

7. Static drying of thick layers without fric

tional losses, therefore no mechanic stress for the products.

The microwave vacuum technology results in unique process technology giving the following benefits:

1. Local controlled energy zones with high controller speed

2. Defined and short residence times of the product to be dried

3. Cooling zone at the outlet for viscous products

4. Closed system

5. Simple setting of different plant operation modes for every product

6. Continuous operation mode possible

7. Short process times, high efficiency and full automated

guarantees an economic operation

8. Service friendly because of modular system and

full-automated cleaning

Features

1. Working power: Voltage 380V, Frequency 50HZ.

2. Patent core components manufactured by BODA, reliable and stable performance.

3. Whole machine chamber are made with anti-corrosion stainless steel, with smooth appearance and easy for cleaning.

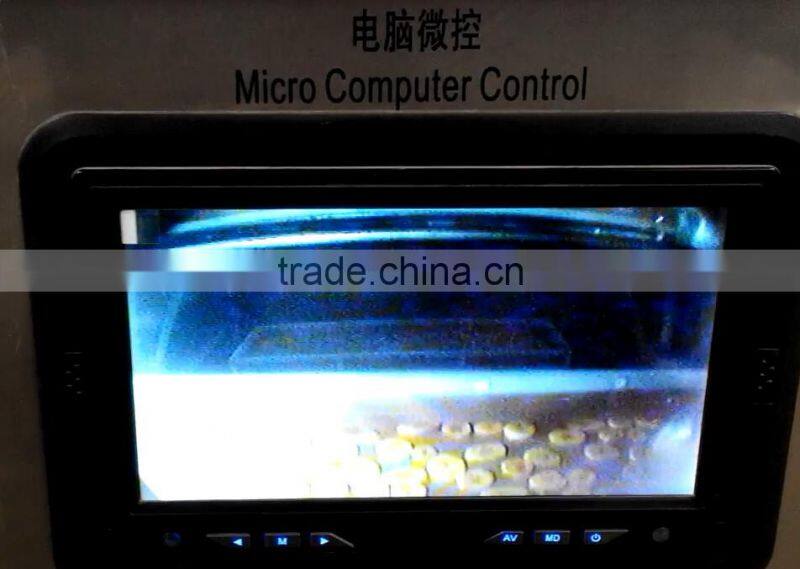

4. Interface operation and on-site monitoring, PLC auto-control system, all the datum can be saved, output and printed etc.

5. Working parameters can be seted easily according to different drying demand according to different materials.

6. Microwave power stepless adjustable, conveyor speed adjustable, temperature and humidity are intelligent controled.

7. Machine start, power off automatically, drying material and microwave generator can start and off synchronously.

8. Adopting Non-contact infrared measuring temperature technology, ensure the accuracy of temperature control easily.

9. Material loading and unloading operated easily, easy for connecting to other process, can achieve automation flow operation easily.

10. BODA unique ventilation system can speed up moisture removal speed, raise drying efficiency.

11. Conveyor material is teflon, which can resist high temperature to 300 celcius.

12. Conveyor auto deviation-checking device can keep the machine running smoothly and steadily.

1. Are you a factory or a trader?

We are the largest and influential microwave equipments manufacturer in China, with registered capital of 26 million, setting scientific research, production, sales and service as a whole.

2. Where is your headquarters? And where is your factory?

Our headquarters is located in Building 18, No. 1, Cuizhu Street, High-tech Zone, Zhengzhou City, Henan Province, China.

The headquater is an executive office building with 9 floors.

Our factory located in the Crossing of Hongnan Road and Qingyang Street, High-tech Zone, Zhengzhou City, Henan Province, China. It takes about 20 minutes by car from our headquarters to our factory.

3. Do you have your own brand?

Our Registered brand is:BODA

Registration No:  7475478

Validity Period:    2010-10-14 ~ 2020-10-13

Approved Goods: foundry machinery, tea production equipment, dryer, ceramic production equipment, roaster, metal mixer, rotary kiln, electron industry equipment, static industry equipment, pharmaceutical processing machinery.

4. Please let me know your R&D team & capability?

R&D team consists of 65 outstanding engineers engaged in industrial microwave for years; 6 of them are professors and associate professors, 2 of them are senior professionals, who are engaged in high-end and novel products development as well as technological research and reformation. The others are technical staff, with veteran work experiences on technology transfer and application, engineering support and on-site management. With strong capability of R&D and technical transformation, we have set up a stable platform successfully on transforming its fruits from science to technology, technology to final products.

Equipped with the first-class R&D hardware facilities, our labs are operated and managed in accordance with ISO 9001 standard.

5. Which type of equipment is better for me?

Please inform us more information about your requirements, and our team will discuss together and offer the best solution to you soon.
