Home > Products > Basket Mill > Vertical Pearl Mill
Vertical Pearl Mill
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Ball Mill | |
| Place of Origin | Shanghai, China | Brand Name | ROOT | |
| Certification | CE,ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

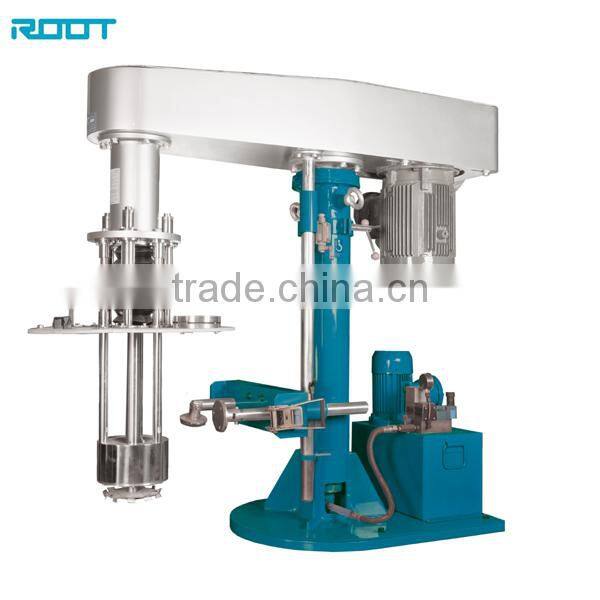

ROOT Basket mill for paint,pigment,ink,coating,resin,etc
Application
- Basket Mill is wet milling machine. It is suitable for industries having high fineness requirement such as paint, ink, pigment, color paste, coating material,cosmetic, pesticide, pharmacy etc.
Characteristics
Integrate dispering and grinding in one machine.Two working procedures realized by one
machine and one tank..Excellent milling fineness ,high productivity,little residue.
Without dead corner ,easy to clean and easy to change color or other products.
Custom made motor (explosion or non-explosion) with different grades according to specific customers requirements.
High speed main shaft, basket head, belt pulley has passed the static and dynamic
equilibrium test.Equipped with double-layer cylinder to avoid hydraulic oil leak after long time using.
Main switches:power sign ,POWER ON/OFF ,RPM METER ,SPEED ACC/DEC,Urgent
stop,Hydrualic UP/DOWNDispersing disc:toothed disc. SS304, mirror polished
Grinding media:be equipped with imported Ø1.8-2.0 zirconia beads (be placed into the equipment before delivery).
Stainless steel double layer tank(with jacket) for optional.
Model | Power(Kw) | Rotation rate(rpm) | Handing capacity (L) | Lifting height(mm) | Media size(mm) |
| RT-LM5.5 | 5.5 | 0-1440 | 100 | 600 | 1.4-2.5 |
| RT-LM7.5 | 7.5 | 0-1440 | 150 | 900 | 1.4-2.5 |
| RT-LM11 | 11 | 0-1440 | 200 | 900 | 1.4-2.5 |
| RT-LM15 | 15 | 0-1440 | 300 | 900 | 1.4-2.5 |
| RT-LM22 | 22 | 0-1440 | 500 | 1100 | 1.4-2.5 |
| RT-LM30 | 30 | 0-1440 | 600 | 1100 | 1.4-2.5 |
| RT-LM37 | 37 | 0-1440 | 800 | 1100 | 1.4-2.5 |
| RT-LM45 | 45 | 0-1440 | 1000 | 1500 | 1.4-2.5 |
| RT-LM55 | 55 | 0-1440 | 1200 | 1500 | 1.4-2.5 |
| RT-LM75 | 75 | 0-900 | 1500 | 1800 | 1.4-2.5 |

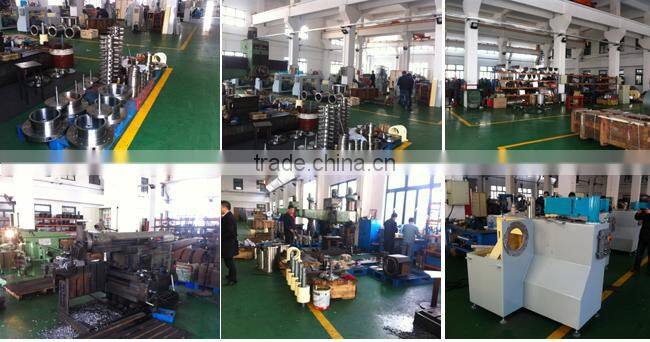

OUR PRODUCTION
